Fairchild FQPF9N30 Data Handbook

Summary

This comprehensive datasheet specifies performance data for an N-Channel MOSFET designed for demanding power switching applications. The manual details essential electrical characteristics, including drain current (up to 6.0A), breakdown voltage (300V), and timing parameters critical for optimizing circuit design. It is intended for electrical engineers and power electronics designers who require reliable components for high-efficiency DC/DC converters and switch mode power supplies.

📄 Preview PAGE OF 8

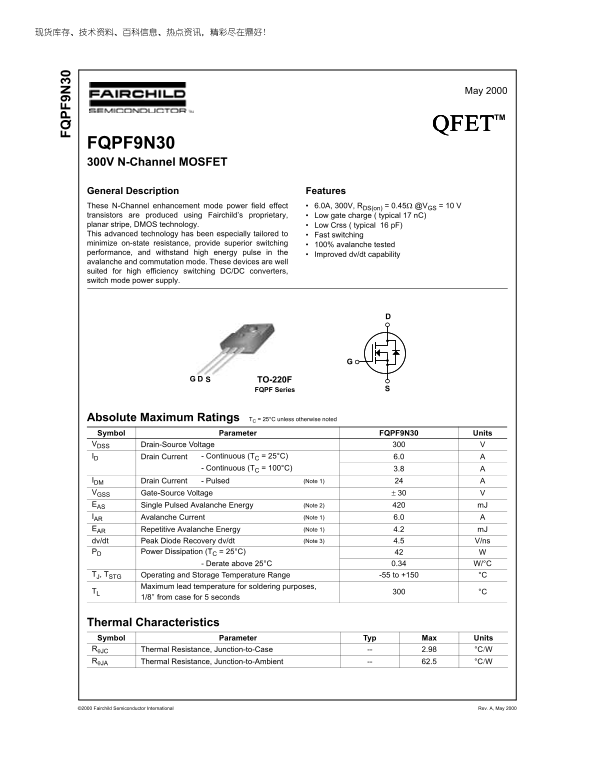

Page 1 Text Content

May 2000

QFETTM

FQPF9N30 300V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 6.0A, 300V, RDS(on) = 0.45Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 17 n C) planar stripe, DMOS technology. Low Crss ( typical 16 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supply.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF9N30 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 6.0

- Continuous (TC = 100°C) 3.8

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 6.0 EAR Repetitive Avalanche Energy (Note 1) 4.2 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.34 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.98 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A, May 2000
