This NPN BJT transistor is engineered for reliable switching applications within driver, inverter, and interface circuits. Featuring built-in bias resistors (R=22KΩ or R=47KΩ) in a compact SOT-23 package, it simplifies circuit design and enhances performance optimization. The comprehensive datasheet provides engineers with detailed electrical characteristics—including breakdown voltages, current gain measurements, and operational curves—allowing for precise integration into switching power systems and robust circuit solutions.
Page 1 Text Content
查询FJV3107R供应商

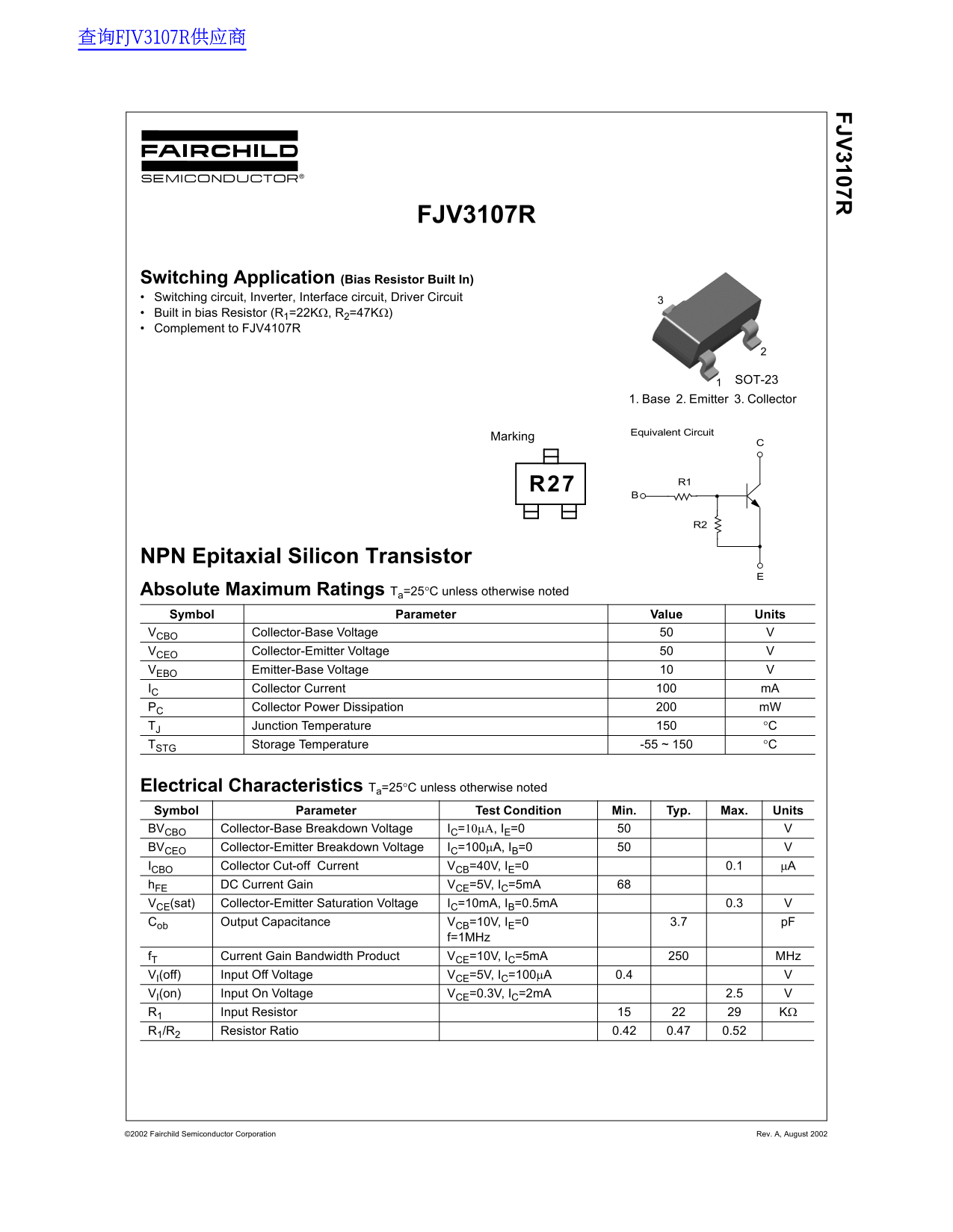

FJV3107R
FJV3107R
Switching Application (Bias Resistor Built In) Switching circuit, Inverter, Interface circuit, Driver Circuit Built in bias Resistor (R1=22KΩ, R2=47KΩ) Complement to FJV4107R
SOT-23
1. Base 2. Emitter 3. Collector
Equivalent Circuit
Marking
NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter Value Units
VCBO Collector-Base Voltage
VCEO Collector-Emitter Voltage
VEBO Emitter-Base Voltage IC Collector Current m A PC Collector Power Dissipation m W TJ Junction Temperature °C TSTG Storage Temperature -55 ~ 150 °C
Electrical Characteristics Ta=25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units BVCBO Collector-Base Breakdown Voltage IC=10µΑ, IE=0
BVCEO Collector-Emitter Breakdown Voltage IC=100µA, IB=0 ICBO Collector Cut-off Current VCB=40V, IE=0 0.1 µA h FE DC Current Gain VCE=5V, IC=5m A VCE(sat) Collector-Emitter Saturation Voltage IC=10m A, IB=0.5m A 0.3 Cob Output Capacitance VCB=10V, IE=0 3.7 p F
f=1MHz
f T Current Gain Bandwidth Product VCE=10V, IC=5m A MHz
VI(off) Input Off Voltage VCE=5V, IC=100µA 0.4 VI(on) Input On Voltage VCE=0.3V, IC=2m A 2.5 R1 Input Resistor KΩ R1/R2 Resistor Ratio 0.42 0.47 0.52
©2002 Fairchild Semiconductor Corporation Rev. A, August 2002
