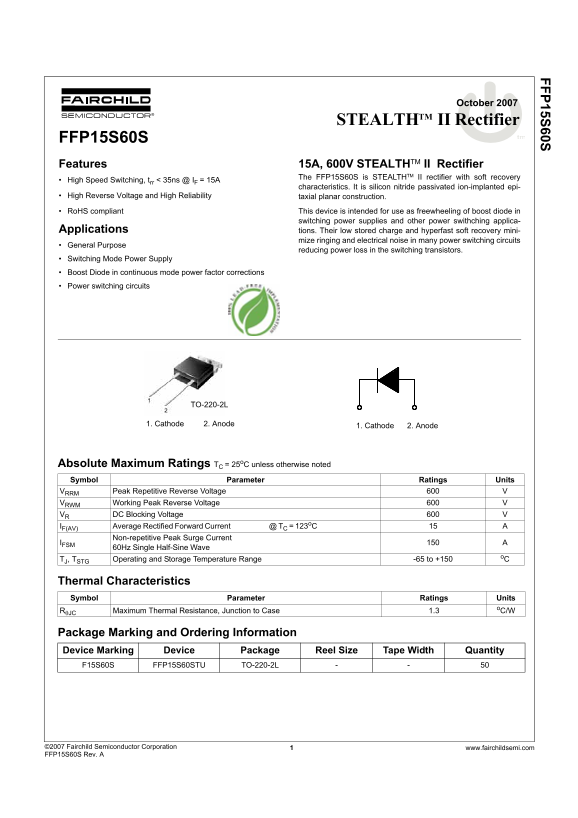

FFP15S60S
October 2007
STEALTH II Rectifier TM
FFP15S60S tm
Features 15A, 600V STEALTHTM II Rectifier
The FFP15S60S is STEALTHTM II rectifier with soft recovery
High Speed Switching, trr < 35ns @ IF = 15A
characteristics. It is silicon nitride passivated ion-implanted epi-
High Reverse Voltage and High Reliability taxial planar construction.
Ro HS compliant This device is intended for use as freewheeling of boost diode in switching power supplies and other power swithching applica-
Applications tions. Their low stored charge and hyperfast soft recovery mini-
mize ringing and electrical noise in many power switching circuits
General Purpose
reducing power loss in the switching transistors.
Switching Mode Power Supply
Boost Diode in continuous mode power factor corrections Power switching circuits
TO-220-2L
1. Cathode 2. Anode 1. Cathode 2. Anode
Absolute Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units VRRM Peak Repetitive Reverse Voltage
VRWM Working Peak Reverse Voltage VR DC Blocking Voltage IF(AV) Average Rectified Forward Current @ TC = 123o C 15 Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave 150
TJ, TSTG Operating and Storage Temperature Range -65 to +150
Thermal Characteristics Symbol Parameter Ratings Units
RθJC Maximum Thermal Resistance, Junction to Case 1.3
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity F15S60S FFP15S60STU TO-220-2L
©2007 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FFP15S60S Rev. A
