This specialized STEALTH II rectifier diode is engineered for high-frequency power switching applications, such as boost converters and switch mode power supplies requiring soft recovery characteristics. Designed with silicon nitride technology for superior reliability and low circulating noise, it minimizes stored charge in sensitive circuits. The comprehensive manual provides critical information for electrical engineers, detailing absolute maximum ratings (600V/8A), detailed thermal graphs, transient response data, and full application guidelines necessary for designing dependable, high-efficiency power electronics.

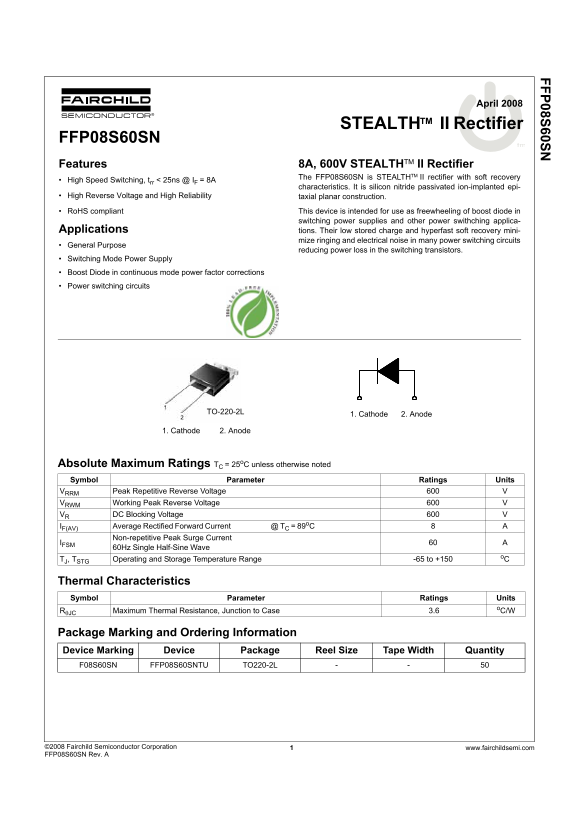

Page 1 Text Content
FFP08S60SN
April 2008
STEALTH II Rectifier TM
FFP08S60SN
Features 8A, 600V STEALTHTM II Rectifier
The FFP08S60SN is STEALTHTM II rectifier with soft recovery
High Speed Switching, trr < 25ns @ IF = 8A
characteristics. It is silicon nitride passivated ion-implanted epi-
High Reverse Voltage and High Reliability taxial planar construction.
Ro HS compliant This device is intended for use as freewheeling of boost diode in switching power supplies and other power swithching applica-
Applications tions. Their low stored charge and hyperfast soft recovery mini-
mize ringing and electrical noise in many power switching circuits
General Purpose
reducing power loss in the switching transistors.
Switching Mode Power Supply
Boost Diode in continuous mode power factor corrections Power switching circuits
TO-220-2L
1. Cathode 2. Anode
1. Cathode 2. Anode
Absolute Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units VRRM Peak Repetitive Reverse Voltage
VRWM Working Peak Reverse Voltage VR DC Blocking Voltage IF(AV) Average Rectified Forward Current @ TC = 89o C 8 Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave 60
TJ, TSTG Operating and Storage Temperature Range -65 to +150
Thermal Characteristics Symbol Parameter Ratings Units
RθJC Maximum Thermal Resistance, Junction to Case 3.6
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity F08S60SN FFP08S60SNTU TO220-2L
©2008 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FFP08S60SN Rev. A
Page Summary Contents For Fairchild FFP08S60SN Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 5 |
| File Size | 281.76 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How fast is the reverse recovery time?
It features high-speed switching with a typical recessive recovery time (t_rr) between 15 ns and 25 ns at an 8A current.
What voltage rating should I expect from this device?
The Working Peak Reverse Voltage (RWM V) is rated up to 600 V, with a DC Blocking Voltage of 600 V.
Which electrical applications are recommended for this rectifier?
It's intended for switching mode power supplies, boost diodes in continuous PFC, and general freewheeling booster applications.
What is its maximum resistance to current surges?
The device can handle a Non-repetitive Peak Surge Current (I_FSM) of 60 A using a single half-sine wave.
