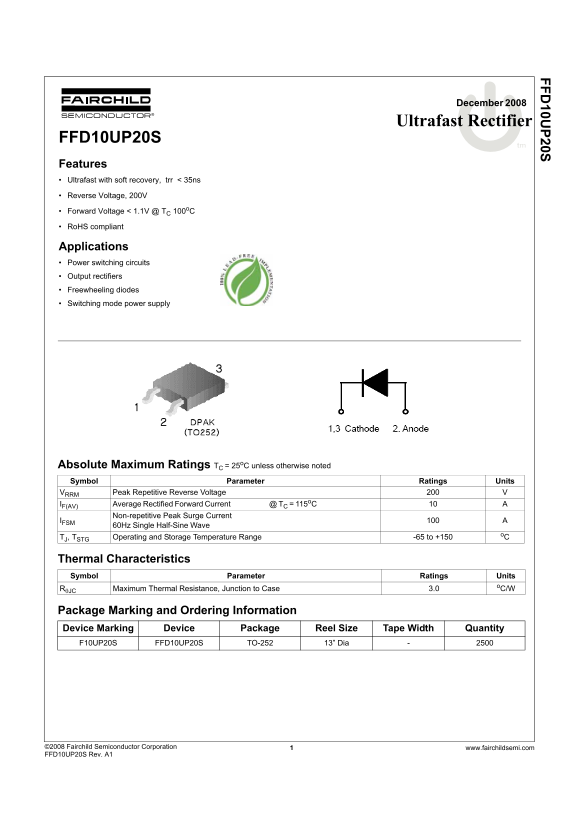

FFD 10U P20S
December 2008
Ultrafast Rectifier
FFD10UP20S
Features Ultrafast with soft recovery, trr < 35ns Reverse Voltage, 200V Forward Voltage < 1.1V @ TC 100o C Ro HS compliant
Applications Power switching circuits Output rectifiers Freewheeling diodes Switching mode power supply
Absolute Maximum Ratings TC = 25o C unless otherwise noted Symbol Parameter Ratings Units
VRRM Peak Repetitive Reverse Voltage IF(AV) Average Rectified Forward Current @ TC = 115o C 10 Non-repetitive Peak Surge Current
60Hz Single Half-Sine Wave 100
TJ, TSTG Operating and Storage Temperature Range -65 to +150
Thermal Characteristics Symbol Parameter Ratings Units
RθJC Maximum Thermal Resistance, Junction to Case 3.0
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity F10UP20S FFD10UP20S TO-252 13” Dia
