Fairchild FDB7045L/FDP7045L 30V N-Channel power MOSFET datasheet. 75A continuous, 100A pulsed, with 3.9mohm on-resistance in TO-220 and TO-263AB packages. For high-current, low-voltage applications. Provides ratings and electrical specs. For engineers designing DC/DC converters and motor controllers.
Page 1 Text Content
查询FDB7045L供应商
TO-220 FDP Series TO-263AB
FDB Series
Absolute Maximum Ratings TC = 25°C unless otherwise noted
Symbol Parameter FDP7045L FDB7045L Units
VDSS Drain-Source Voltage VGSS Gate-Source Voltage ±20 ID Maximum Drain Current - Continuous (Note 1)
- Pulsed (Note 1) Total Power Dissipation @ TC = 25°C WPD Derate above 25°C 0.85 W/°C
TJ, TSTG Operating and Storage Junction Temperature Range -65 to +175 °C
Thermal Characteristics RθJC Thermal Resistance, Junction-to-Case 1.2 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

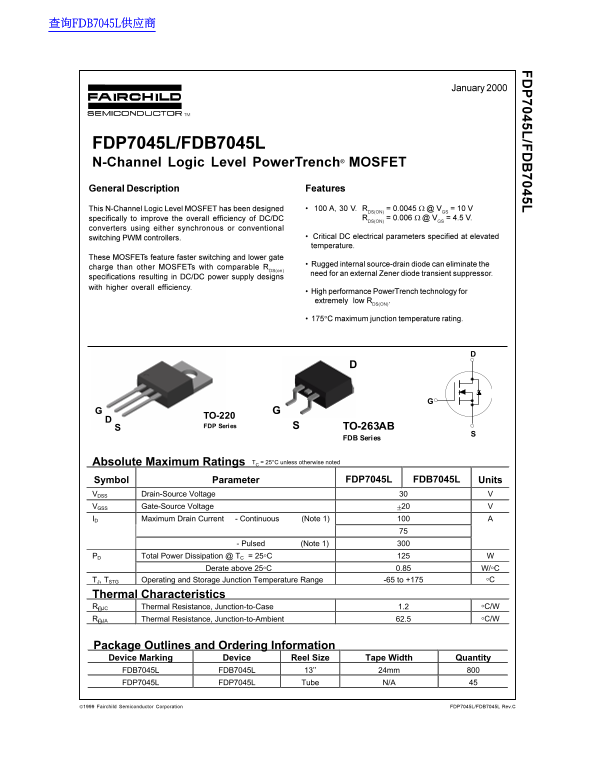

Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity FDB7045L FDB7045L 13’’ 24mm FDP7045L FDP7045L Tube N/A
