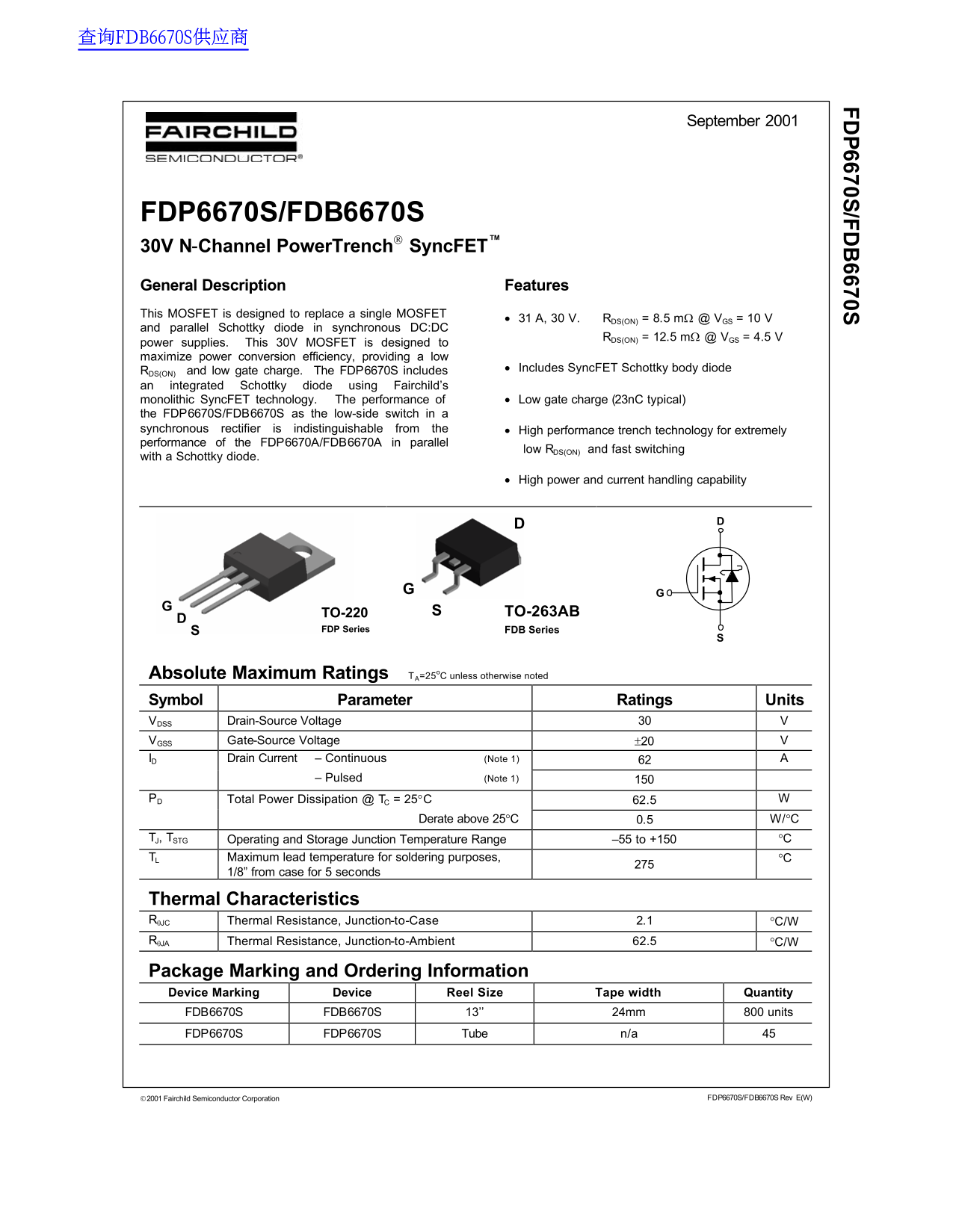

FDP6670S/FDB6670S 30V N-Channel Power Trench Sync FET™
General Description Features
This MOSFET is designed to replace a single MOSFET
• 31 A, 30 V. RDS(ON) = 8.5 mΩ @ VGS = 10 V
and parallel Schottky diode in synchronous DC:DC
RDS(ON) = 12.5 mΩ @ VGS = 4.5 V
power supplies. This 30V MOSFET is designed to maximize power conversion efficiency, providing a low
RDS(ON) and low gate charge. The FDP6670S includes • Includes Sync FET Schottky body diode
an integrated Schottky diode using Fairchild’s monolithic Sync FET technology. The performance of • Low gate charge (23n C typical) the FDP6670S/FDB6670S as the low-side switch in a synchronous rectifier is indistinguishable from the • High performance trench technology for extremely performance of the FDP6670A/FDB6670A in parallel
low RDS(ON) and fast switching
with a Schottky diode.
• High power and current handling capability
TO-220 TO-263AB
FDP Series FDB Series
Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage 30 V VGSS Gate-Source Voltage ±20 V ID Drain Current – Continuous (Note 1) 62 A – Pulsed (Note 1) 150 PD Total Power Dissipation @ TC = 25°C 62.5 W Derate above 25°C 0.5 W/°C TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C TL Maximum lead temperature for soldering purposes,
1/8” from case for 5 seconds
Thermal Characteristics RθJC Thermal Resistance, Junction-to-Case 2.1 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W
Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity FDB6670S FDB6670S 13’’ 24mm 800 units FDP6670S FDP6670S Tube n/a 45
