Fairchild FDP5645 FDB5645 Data Handbook

Summary

These high-performance N-Channel Power Trench MOSFETs (FDP5645/FDB5645) are engineered for maximizing efficiency in demanding DC/DC power converters using PWM controllers. Featuring an 80A rating, 60V tolerance, and fast switching capabilities, they include a rugged internal diode for simplified system setups. This technical manual provides comprehensive documentation on electrical characteristics, thermal performance, and operational specifications, making it an essential resource for electrical engineers designing reliable, high-efficiency power electronics.

📄 Preview PAGE OF 10

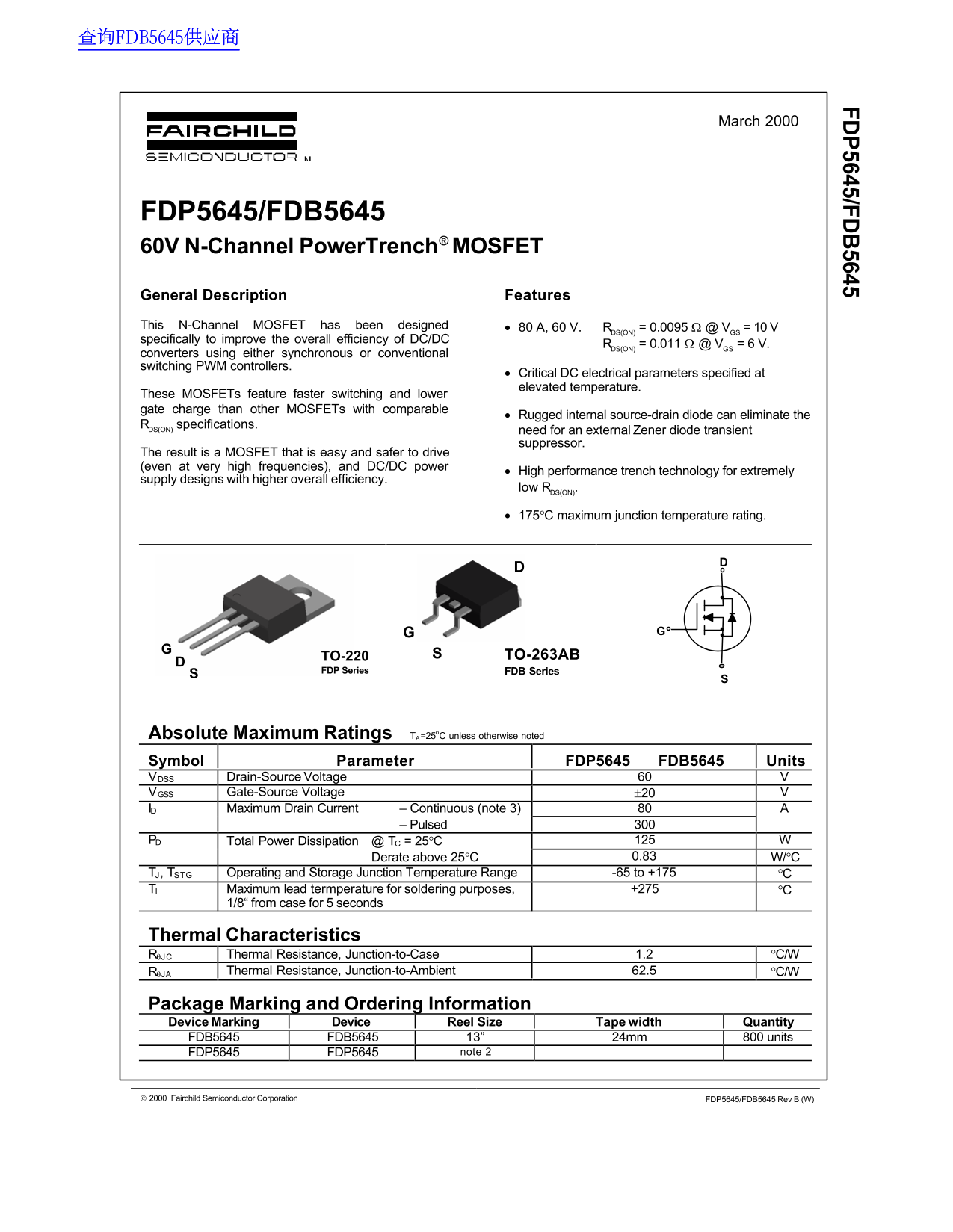

Page 1 Text Content

查询FDB5645供应商

March 2000

FDP5645/FDB5645 60V N-Channel Power Trench® MOSFET General Description Features This N-Channel MOSFET has been designed • 80 A, 60 V. RDS(ON) = 0.0095 Ω @ VGS = 10 V specifically to improve the overall efficiency of DC/DC

RDS(ON) = 0.011 Ω @ VGS = 6 V.

converters using either synchronous or conventional switching PWM controllers.

• Critical DC electrical parameters specified at elevated temperature.

These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable

• Rugged internal source-drain diode can eliminate the

RDS(ON) specifications.

need for an external Zener diode transient suppressor.

The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power

• High performance trench technology for extremely

supply designs with higher overall efficiency.

low RDS(ON).

• 175°C maximum junction temperature rating.

TO-220 TO-263AB

FDP Series FDB Series

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter FDP5645 FDB5645 Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ±20 ID Maximum Drain Current – Continuous (note 3)

– Pulsed

Total Power Dissipation @ TC = 25°C WPD

Derate above 25°C 0.83 W/°C

TJ, TSTG Operating and Storage Junction Temperature Range -65 to +175 °C TL Maximum lead termperature for soldering purposes, +275 °C

1/8“ from case for 5 seconds

Thermal Characteristics RθJC Thermal Resistance, Junction-to-Case 1.2 °C/W

RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity FDB5645 FDB5645 13” 24mm 800 units

FDP5645 FDP5645 note 2

 2000 Fairchild Semiconductor Corporation FDP5645/FDB5645 Rev B (W)

Page Summary Contents For Fairchild FDP5645 FDB5645 Data Handbook

Page 1 查询FDB5645供应商 March 2000 FDP5645/FDB5645 60V N-Channel Power Trench® MOSFET General Description Features This N-Channel MOSFET has been designed • 80 A, 60 V. RDS(ON) = 0.0095 Ω @ VGS = 10 V specifical...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Drain-Source Avalanche Ratings (Note 1) WDSS Single Pulse Drain-Source VDD = 40 V, ID = 8...
Page 3 Typical Characteristics , D IN , D IN -S (O ), N IZ IN -S -R IS VGS = 10V VGS = 4.5V VDS, DRAIN-SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2. On-Resistance Va...
Page 4 Typical Characteristics , D IN IE IS ID = 85A f = 1MHz VDS = VGS = 0 V 30V CISS COSS CRSS Qg, GATE CHARGE (n C) , DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate Charge Characteristics. Figure 8. Capacitan...
Page 5 TO-220 Tape and Reel Data and Package Dimensions TO-220 Tube Packing Configuration: Figur e 1.0 Packaging Description: TO-220 parts are shipped normally in tube. The tube is made of PVC plastic treate...
Page 6 TO-220 Tape and Reel Data and Package Dimensions, continued TO-220 (FS PKG Code 37) 1:1 Scale 1:1 on letter size paper Dimensions shown below are in: inches [millimeters] Part Weight per unit (gram): ...
Page 7 TO-263AB/D2PAK Tape and Reel Data and Package Dimensions TO-263AB/D2PAK Packaging Configuration: Figure 1.0 Packaging Description: TO-263/D2PAK parts are shipped in tape. The carrier tape EL ECT ROST ...
Page 8 TO-263AB/D2PAK Tape and Reel Data and Package Dimensions, continued TO-263AB/D2PAK Embossed Carrier Tape Configuration: Figure 3.0 Wc B0 User Direction of Feed Dimensions are in millimeter Pkg type A0...
Page 9 TO-263AB/D2PAK Tape and Reel Data and Package Dimensions, continued TO-263AB/D2PAK (FS PKG Code 45) 1:1 Scale 1:1 on letter size paper Dimensions shown below are in: inches [millimeters] Part Weight p...
Page 10 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ ISOP...
