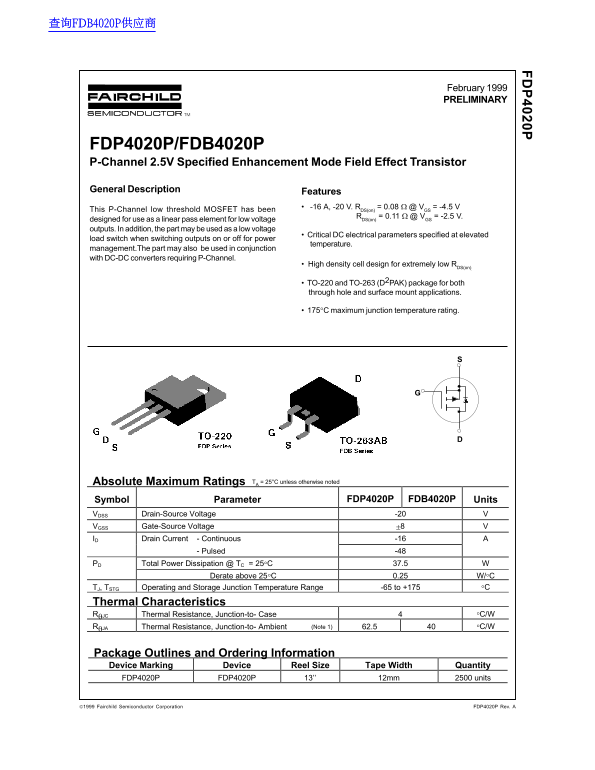

FDP4020P/FDB4020P P-Channel 2.5V Specified Enhancement Mode Field Effect Transistor General Description Features
-16 A, -20 V. RDS(on) = 0.08 Ω @ VGS = -4.5 V
This P-Channel low threshold MOSFET has been
RDS(on) = 0.11 Ω @ VGS = -2.5 V.
designed for use as a linear pass element for low voltage outputs. In addition, the part may be used as a low voltage
• Critical DC electrical parameters specified at elevated
load switch when switching outputs on or off for power
temperature.
management.The part may also be used in conjunction with DC-DC converters requiring P-Channel.
• High density cell design for extremely low RDS(on).
• TO-220 and TO-263 (D2PAK) package for both through hole and surface mount applications.
• 175°C maximum junction temperature rating.
Absolute Maximum Ratings TA = 25°C unless otherwise noted
Symbol Parameter FDP4020P FDB4020P Units
VDSS Drain-Source Voltage -20 VGSS Gate-Source Voltage ±8 ID Drain Current - Continuous -16
- Pulsed -48
Total Power Dissipation @ TC = 25°C 37.5 WPD Derate above 25°C 0.25 W/°C
TJ, TSTG Operating and Storage Junction Temperature Range -65 to +175 °C
Thermal Characteristics RθJC Thermal Resistance, Junction-to- Case °C/W
RθJA Thermal Resistance, Junction-to- Ambient (Note 1) 62.5 °C/W
Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity FDP4020P FDP4020P 13’’ 12mm 2500 units
1999 Fairchild Semiconductor Corporation FDP4020P Rev. A
