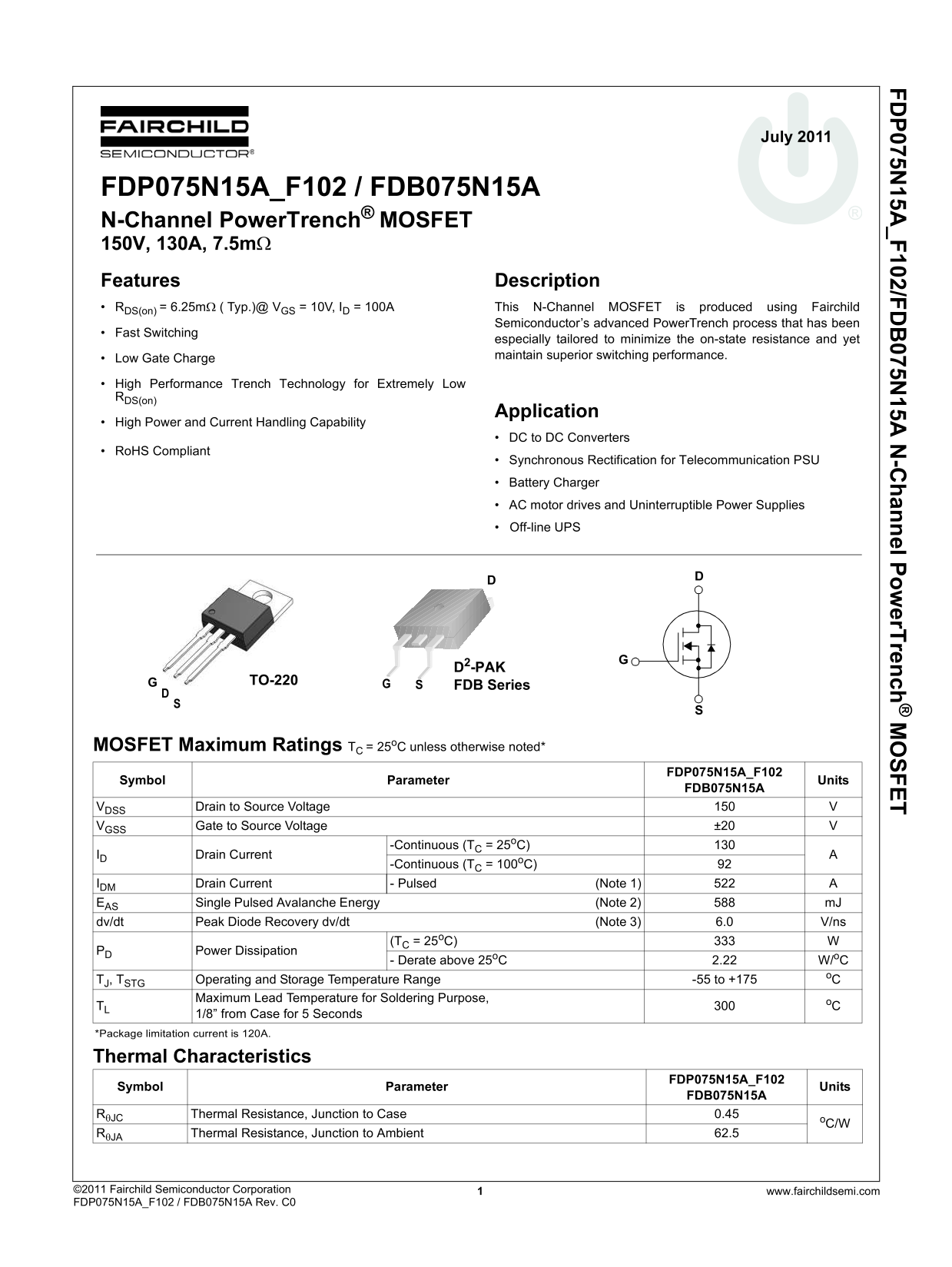

Page 1 Text Content

/F -C l P r T re

July 2011

FDP075N15A_F102 / FDB075N15A N-Channel Power Trench® MOSFET 150V, 130A, 7.5mΩ

Features Description RDS(on) = 6.25mΩ ( Typ.)@ VGS = 10V, ID = 100A This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced Power Trench process that has been

Fast Switching

especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Low Gate Charge

High Performance Trench Technology for Extremely Low RDS(on)

Application

High Power and Current Handling Capability

DC to DC Converters

Ro HS Compliant

Synchronous Rectification for Telecommunication PSU

Battery Charger

AC motor drives and Uninterruptible Power Supplies Off-line UPS

D2-PAK

TO-220G

FDB Series G

MOSFET Maximum Ratings TC = 25o C unless otherwise noted*

FDP075N15A_F102

Symbol Parameter Units

FDB075N15A

VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±20

-Continuous (TC = 25

ID Drain Current

-Continuous (TC = 100

IDM Drain Current - Pulsed (Note 1) EAS Single Pulsed Avalanche Energy (Note 2) m J dv/dt Peak Diode Recovery dv/dt (Note 3) 6.0 V/ns

(TC = 25

PD Power Dissipation

- Derate above 25o C 2.22 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +175

Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

*Package limitation current is 120A.

Thermal Characteristics

FDP075N15A_F102

Symbol Parameter Units

FDB075N15A

RθJC Thermal Resistance, Junction to Case 0.45

RθJA Thermal Resistance, Junction to Ambient 62.5

©2011 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FDP075N15A_F102 / FDB075N15A Rev. C0

Page Summary Contents For Fairchild FDP075N15A FDB075N15A Specifications Manual

Page 1 /F -C l P r T re July 2011 FDP075N15A_F102 / FDB075N15A N-Channel Power Trench® MOSFET 150V, 130A, 7.5mΩ Features Description RDS(on) = 6.25mΩ ( Typ.)@ VGS = 10V, ID = 100A This N-Channel MOSFET is pr...
Page 2 /F -C l P r T re Package Marking and Ordering Information Device Marking Device Package Description Quantity FDP075N15A FDP075N15A_F102 TO-220 F102: Trimmed Leads Device Marking Device Package Reel Si...
Page 3 /F -C l P r T re Typical Performance Characteristics it ra in rr t[ ra in -S rc -R is ta Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics VGS = 15.0V *Notes: 10.0V 1. VDS = 10V 8...
Page 4 /F -C l P r T re [N rm li Typical Performance Characteristics (Continued) ra in rr [A ra in -S rc re lt Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation vs. Temperature vs. Temp...
Page 5 /F -C l P r T re Typical Performance Characteristics (Continued) Figure 13. Transient Thermal Response Curve *Notes: Single pulse 1. ZθJC(t) = 0.45 C/W Max. 2. Duty Factor, D= t1/t2 3. TJM - TC = PDM ...
Page 6 /F -C l P r T re Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms FDP075N15A_F102 / FDB075N15A Rev. C...
Page 7 /F -C l P r T re Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period ...
Page 8 /F -C l P r T re Mechanical Dimensions TO-220 (F102: Trimmed Leads) Dimensions in Millimeters FDP075N15A_F102 / FDB075N15A Rev. C0 www.fairchildsemi.com8
Page 9 /F -C l P r T re Mechanical Dimensions D2PAK Dimensions in Millimeters FDP075N15A_F102 / FDB075N15A Rev. C0 www.fairchildsemi.com9
