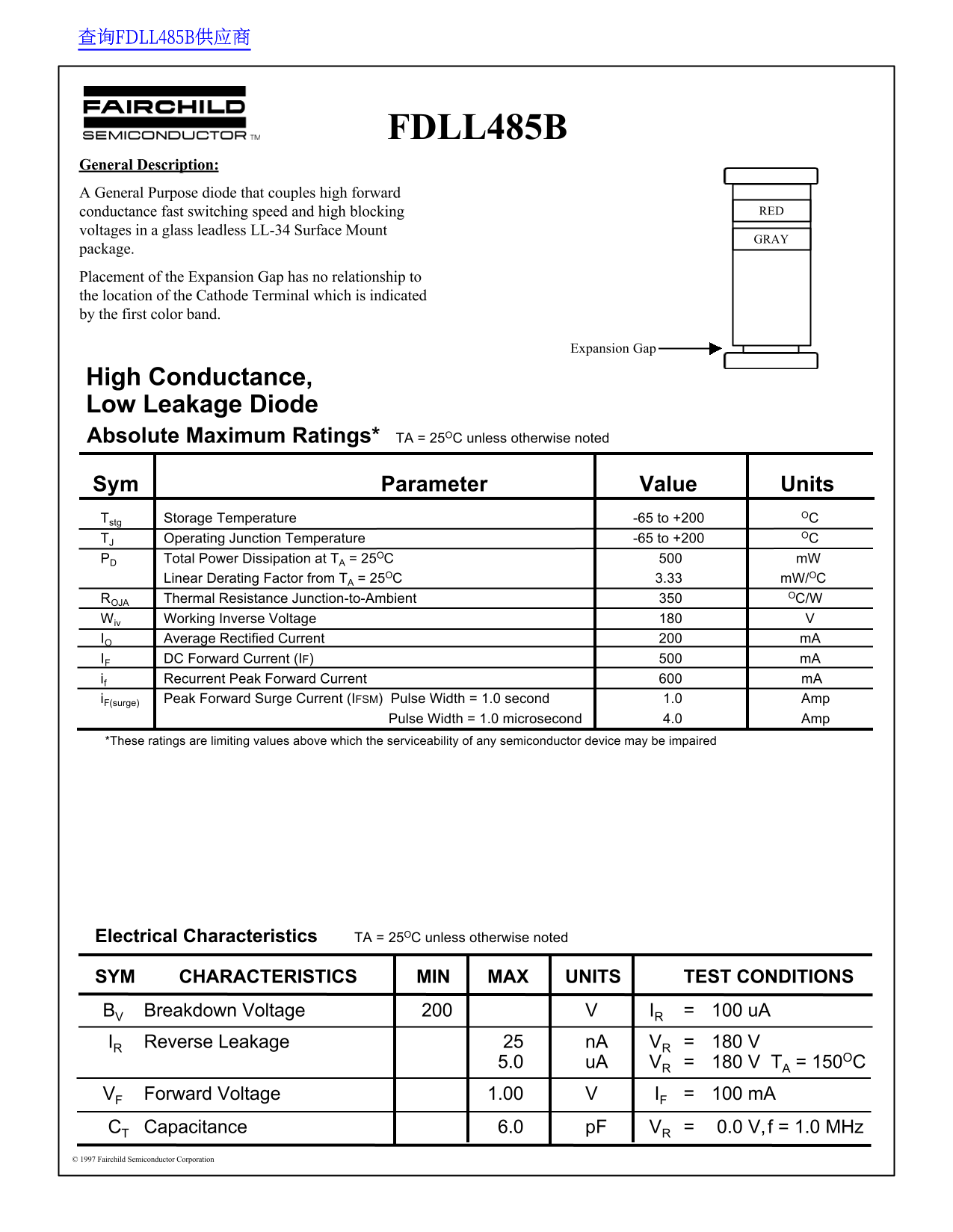

Fairchild FDLL485B Data Handbook

查询FDLL485B供应商

FDLL485B

General Description: A General Purpose diode that couples high forward

conductance fast switching speed and high blocking RED

voltages in a glass leadless LL-34 Surface Mount

package. Placement of the Expansion Gap has no relationship to the location of the Cathode Terminal which is indicated by the first color band.

Expansion Gap

High Conductance, Low Leakage Diode Absolute Maximum Ratings* TA = 25OC unless otherwise noted

Sym Parameter Value Units

Tstg Storage Temperature -65 to +200

TJ Operating Junction Temperature -65 to +200 OC PD Total Power Dissipation at TA = 25OC m W

Linear Derating Factor from TA = 25OC 3.33 m W/OC

ROJA Thermal Resistance Junction-to-Ambient OC/W Wiv Working Inverse Voltage

IO Average Rectified Current m A

IF DC Forward Current (IF) m A if Recurrent Peak Forward Current m A

i F(surge) Peak Forward Surge Current (IFSM) Pulse Width = 1.0 second 1.0 Amp

Pulse Width = 1.0 microsecond 4.0 Amp

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired

Electrical Characteristics TA = 25OC unless otherwise noted

SYM CHARACTERISTICS MIN MAX UNITS TEST CONDITIONS BV Breakdown Voltage IR 100 u A IR Reverse Leakage n A VR 180 V

5.0 u A VR 180 V TA = 150OC

VF Forward Voltage 1.00 IF 100 m A CT Capacitance 6.0 p F VR 0.0 V,f = 1.0 MHz © 1997 Fairchild Semiconductor Corporation
