Fairchild FDD3510H Specifications Manual

Summary

This technical manual details the FDD3510H dual N and P-Channel PowerTrench MOSFET, a component designed for high-performance switching applications like inverters and H-bridges. Suitable for power management engineers and electronics designers, it provides comprehensive electrical characteristics, thermal data, and reliability specifications for this RoHS-compliant, 80V device.

📄 Preview PAGE OF 10

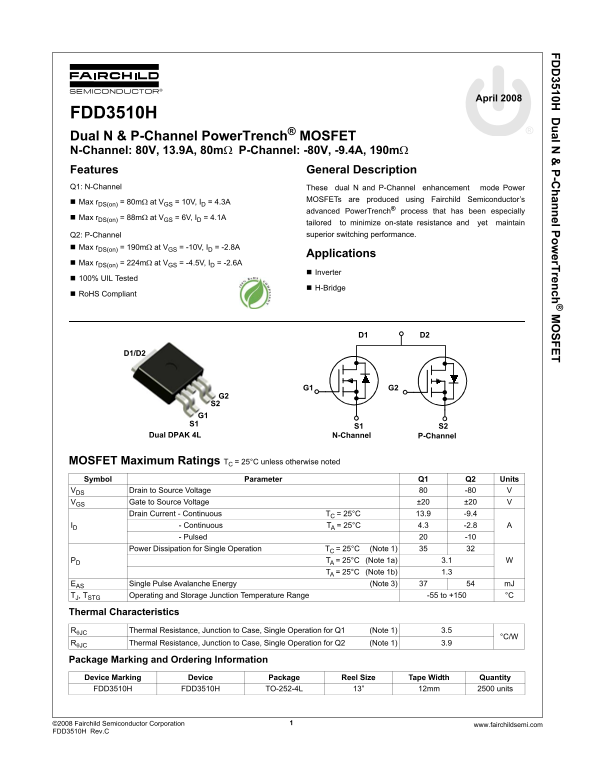

Page 1 Text Content

FD 3510H ual N P-C hannel Pow er Trench SFET

April 2008

FDD3510H Dual N & P-Channel Power Trench® MOSFET N-Channel: 80V, 13.9A, 80mΩ P-Channel: -80V, -9.4A, 190mΩ Features General Description Q1: N-Channel These dual N and P-Channel enhancement mode Power

MOSFETs are produced using Fairchild Semiconductor’s

Max r DS(on) = 80mΩ at VGS = 10V, ID = 4.3A

advanced Power Trench® process that has been especially

Max r DS(on) = 88mΩ at VGS = 6V, ID = 4.1A

tailored to minimize on-state resistance and yet maintain Q2: P-Channel superior switching performance.

Max r DS(on) = 190mΩ at VGS = -10V, ID = -2.8A

Applications

Max r DS(on) = 224mΩ at VGS = -4.5V, ID = -2.6A

Inverter

100% UIL Tested

H-Bridge

Ro HS Compliant

Dual DPAK 4L N-Channel P-Channel

MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Q1 Q2 Units

VDS Drain to Source Voltage -80 VGS Gate to Source Voltage ±20 ±20 Drain Current - Continuous TC = 25°C 13.9 -9.4

ID 4.3 -2.8 A - Continuous TA = 25°C

- Pulsed -10 Power Dissipation for Single Operation TC = 25°C (Note 1)

PD 3.1 W TA = 25°C (Note 1a) TA = 25°C (Note 1b) 1.3

EAS Single Pulse Avalanche Energy (Note 3) m J TJ, TSTG Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJC Thermal Resistance, Junction to Case, Single Operation for Q1 (Note 1) 3.5

RθJC Thermal Resistance, Junction to Case, Single Operation for Q2 (Note 1) 3.9

Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDD3510H FDD3510H TO-252-4L 13” 12mm 2500 units

©20 08 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FD D3510H Rev.C

Page Summary Contents For Fairchild FDD3510H Specifications Manual

Page 1 FD 3510H ual N P-C hannel Pow er Trench SFET April 2008 FDD3510H Dual N & P-Channel Power Trench® MOSFET N-Channel: 80V, 13.9A, 80mΩ P-Channel: -80V, -9.4A, 190mΩ Features General Description Q1: ...
Page 2 FD 3510H ual N P-C hannel Pow er Trench SFET Electrical Characteristics TJ = 25°C unless otherwise noted Symbol Parameter Test Conditions Type Min Typ Max Units Off Characteristics ID =250µA, VGS = 0V...
Page 3 FD 3510H ual N P-C hannel Pow er Trench SFET Electrical Characteristics TJ = 25°C unless otherwise noted Symbol Parameter Test Conditions Type Min Typ Max Units Drain-Source Diode Characteristics VGS ...
Page 4 FD 3510H ual N P-C hannel Pow er Trench SFET LI ZE Typical Characteristics (Q1 N-Channel) TJ = 25°C unless otherwise noted , D IN EN (A IN -R ES IS TA , D IN EN (A 4.0 VGS = 3.5V VGS = 10V VGS = 6V PU...
Page 5 FD 3510H ual N P-C hannel Pow er Trench SFET Typical Characteristics (Q1 N-Channel) TJ = 25°C unless otherwise noted , D IN EN (A S, VA LA EN T( TE VO LT E( V) ID = 4.3A VDD = 40V VDD = 50VVDD = 30V f...
Page 6 FD 3510H ual N P-C hannel Pow er Trench SFET Typical Characteristics (Q1 N-Channel) TJ = 25°C unless otherwise noted LI ZE ER LI ZE ER IM PE E, θJ IM PE E, DUTY CYCLE-DESCENDING ORDER NOTES: SINGLE PU...
Page 7 FD 3510H ual N P-C hannel Pow er Trench SFET Typical Characteristics (Q2 P-Channel) TJ = 25°C unless otherwise noted LI ZE -I , D IN EN (A IN -R ES IS TA -I , D IN EN (A VGS = -10V VGS = -4.5V VGS = -...
Page 8 FD 3510H ual N P-C hannel Pow er Trench SFET Typical Characteristics (Q2 P-Channel)TJ = 25°C unless otherwise noted -I , D IN EN (A -I S, VA LA EN T( -V TE VO LT E( V) ID = -2.8A VDD = -40V VDD = -50V...
Page 9 FD 3510H ual N P-C hannel Pow er Trench SFET Typical Characteristics (Q2 P-Channel)TJ = 25°C unless otherwise noted LI ZE ER LI ZE ER IM PE E, θJ IM PE E, θJ DUTY CYCLE-DESCENDING ORDER D = 0.5 0.2 0....
Page 10 FD 3510H ual N P-C hannel Pow Preliminary Datasheet er Trench SFET TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or i...
