Fairchild FDC5612 Specifications Manual

Summary

The FDC5612 is a high-efficiency, N-Channel PowerTrench MOSFET designed specifically for advanced DC/DC power converters that require superior performance and small footprints. This datasheet provides comprehensive technical details on its robust characteristics, including low on-resistance ($\text{R}_{\text{DS(on)}}$), fast switching capabilities, and minimal gate charge. It is essential reference material for electronics engineers designing power supply systems that demand high overall efficiency in space-constrained modules using the SuperSOT-6 package.

📄 Preview PAGE OF 5

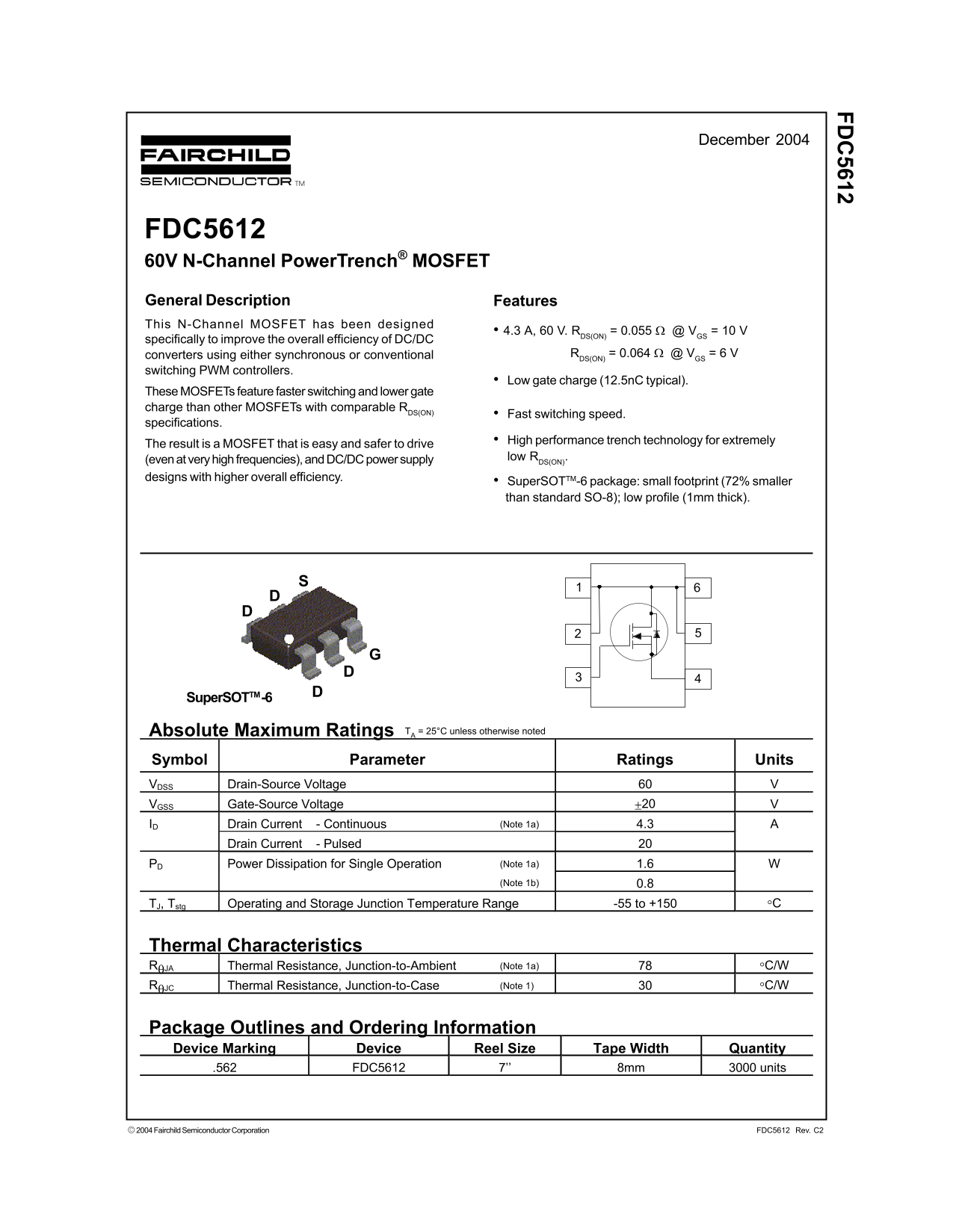

Page 1 Text Content

December 2004

FDC5612 60V N-Channel Power Trench® MOSFET General Description Features This N-Channel MOSFET has been designed

• 4.3 A, 60 V. RDS(ON) = 0.055 Ω @ VGS = 10 V

specifically to improve the overall efficiency of DC/DC

converters using either synchronous or conventional RDS(ON) = 0.064 Ω @ VGS = 6 V

switching PWM controllers.

Low gate charge (12.5n C typical).

These MOSFETs feature faster switching and lower gate charge than other MOSFETs with comparable RDS(ON)

Fast switching speed.

specifications.

High performance trench technology for extremely

The result is a MOSFET that is easy and safer to drive

(even at very high frequencies), and DC/DC power supply low RDS(ON).

designs with higher overall efficiency.

Super SOTTM-6 package: small footprint (72% smaller than standard SO-8); low profile (1mm thick).

Super SOTTM -6

Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ±20 ID Drain Current - Continuous (Note 1a) 4.3

Drain Current - Pulsed

PD Power Dissipation for Single Operation (Note 1a) 1.6 (Note 1b) 0.8

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity

.562 FDC5612 7’’ 8mm 3000 units

2004 Fairchild Semiconductor Corporation FDC5612 Rev. C2
