FD 8447L 40V N -C hannel Pow er Trench FET
February 2007

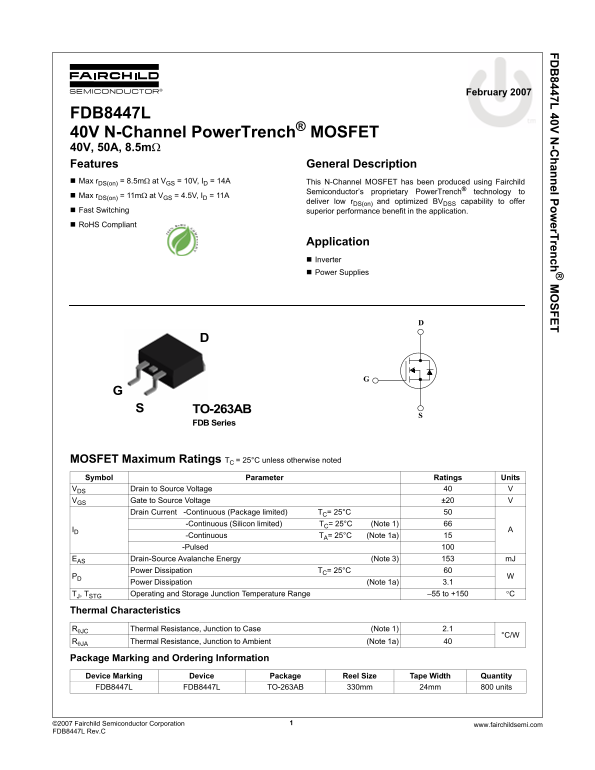

FDB8447L 40V N-Channel Power Trench® MOSFET 40V, 50A, 8.5mΩ Features General Description Max r DS(on) = 8.5mΩ at VGS = 10V, ID = 14A This N-Channel MOSFET has been produced using Fairchild
Semiconductor’s proprietary Power Trench® technology to
Max r DS(on) = 11mΩ at VGS = 4.5V, ID = 11A
deliver low r DS(on) and optimized BVDSS capability to offer
Fast Switching superior performance benefit in the application.
Ro HS Compliant
Application Inverter Power Supplies
TO-263AB FDB Series
MOSFET Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter Ratings Units
VDS Drain to Source Voltage VGS Gate to Source Voltage ±20 Drain Current -Continuous (Package limited) TC= 25°C -Continuous (Silicon limited) TC= 25°C (Note 1)
-Continuous TA= 25°C (Note 1a) -Pulsed 100 EAS Drain-Source Avalanche Energy (Note 3) m J Power Dissipation TC= 25°C 60
Power Dissipation (Note 1a) 3.1 TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C
Thermal Characteristics
RθJC Thermal Resistance, Junction to Case (Note 1) 2.1
RθJA Thermal Resistance, Junction to Ambient (Note 1a)
Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDB8447L FDB8447L TO-263AB 330mm 24mm 800 units
