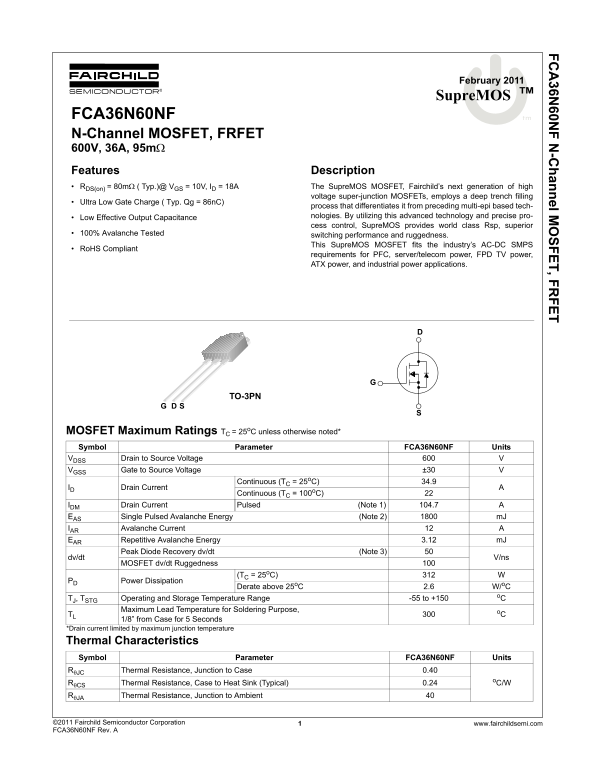

FC 36N 60N F N -C hannel M SFET, FR FET

February 2011

Supre MOS

FCA36N60NF tm N-Channel MOSFET, FRFET 600V, 36A, 95mΩ Features Description RDS(on) = 80mΩ ( Typ.)@ VGS = 10V, ID = 18A The Supre MOS MOSFET, Fairchild’s next generation of high

voltage super-junction MOSFETs, employs a deep trench filling

Ultra Low Gate Charge ( Typ. Qg = 86n C)

process that differentiates it from preceding multi-epi based tech- Low Effective Output Capacitance nologies. By utilizing this advanced technology and precise pro- cess control, Supre MOS provides world class Rsp, superior

100% Avalanche Tested switching performance and ruggedness.

This Supre MOS MOSFET fits the industry’s AC-DC SMPS

Ro HS Compliant

requirements for PFC, server/telecom power, FPD TV power, ATX power, and industrial power applications.

TO-3PN

MOSFET Maximum Ratings TC = 25o C unless otherwise noted* Symbol Parameter FCA36N60NF Units

VDSS Drain to Source Voltage VGSS Gate to Source Voltage ±30

Continuous (TC = 25o C) 34.9

ID Drain Current

Continuous (TC = 100o C)

IDM Drain Current Pulsed (Note 1) 104.7 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current 12 EAR Repetitive Avalanche Energy 3.12 m J Peak Diode Recovery dv/dt (Note 3)

dv/dt V/ns

MOSFET dv/dt Ruggedness

(TC = 25o C)

PD Power Dissipation

Derate above 25o C 2.6 W/o C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 Maximum Lead Temperature for Soldering Purpose, o C

1/8” from Case for 5 Seconds

*Drain current limited by maximum junction temperature

Thermal Characteristics Symbol Parameter FCA36N60NF Units

RθJC Thermal Resistance, Junction to Case 0.40

o C/WRθCS

Thermal Resistance, Case to Heat Sink (Typical) 0.24 RθJA Thermal Resistance, Junction to Ambient 40

©2011 Fairchild Semiconductor Corporation www.fairchildsemi.com1 FCA36N60NF Rev. A

Page Summary Contents For Fairchild FCA36N60NF Specifications Manual

Page 1 FC 36N 60N F N -C hannel M SFET, FR FET February 2011 Supre MOS FCA36N60NF tm N-Channel MOSFET, FRFET 600V, 36A, 95mΩ Features Description RDS(on) = 80mΩ ( Typ.)@ VGS = 10V, ID = 18A The Supre MOS MOS...
Page 2 FC 36N 60N F N -C hannel M SFET, FR FET Package Marking and Ordering Information TC = 25o C unless otherwise noted Device Marking Device Package Reel Size Tape Width Quantity FCA36N60NF FCA36N60NF TO-...
Page 3 FC 36N 60N F N -C hannel M SFET, FR FET Typical Performance Characteristics ap ac ita nc es [p F] ra in -S ou rc n- es is ta nc , D ra in ur re nt [A Figure 1. On-Region Characteristics Figure 2. Tran...
Page 4 FC 36N 60N F N -C hannel M SFET, FR FET Typical Performance Characteristics (Continued) SS , [ or al iz ed , D ra in ur re nt [A ra in -S ou rc re ak do Vo lta ge Figure 7. Breakdown Voltage Variation...
Page 5 FC 36N 60N F N -C hannel M SFET, FR FET Gate Charge Test Circuit & Waveform Resistive Switching Test Circuit & Waveforms Unclamped Inductive Switching Test Circuit & Waveforms FCA36N60NF R...
Page 6 FC 36N 60N F N -C hannel M SFET, FR FET Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS...
Page 7 FC 36N 60N F N -C hannel M SFET, FR FET Mechanical Dimensions TO-3PN FCA36N60NF Rev. A www.fairchildsemi.com7
Page 8 FC 36N 60N F N -C hannel M SFET, FR FET TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and...
