Optimize thermal management with this high-performance motor predriver, built for DC cooling fans operating over a wide voltage range of 4V to 28V. The integrated circuit ensures prolonged operational reliability by incorporating advanced features such as automatic restart and crystal-clear motor lock detection. This manual serves as a comprehensive guide for engineers and product designers, detailing all essential electrical specifications, integration schematics, and application guidelines necessary for robust HVAC or enclosed cooling system design.

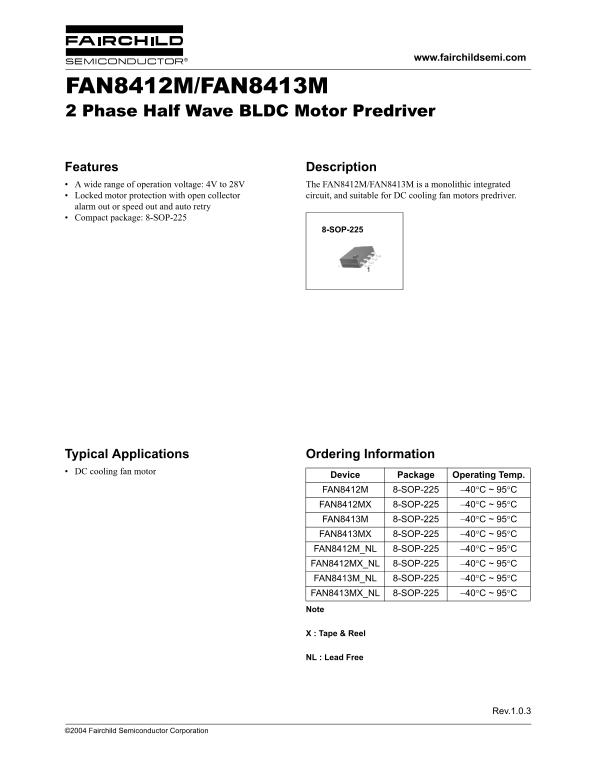

Page 1 Text Content
www.fairchildsemi.com
FAN8412M/FAN8413M 2 Phase Half Wave BLDC Motor Predriver
Features Description A wide range of operation voltage: 4V to 28V The FAN8412M/FAN8413M is a monolithic integrated Locked motor protection with open collector circuit, and suitable for DC cooling fan motors predriver. alarm out or speed out and auto retry Compact package: 8-SOP-225
8-SOP-225
Typical Applications Ordering Information DC cooling fan motor
Device Package Operating Temp. FAN8412M 8-SOP-225 −40°C ~ 95°C FAN8412MX 8-SOP-225 −40°C ~ 95°C FAN8413M 8-SOP-225 −40°C ~ 95°C FAN8413MX 8-SOP-225 −40°C ~ 95°C FAN8412M_NL 8-SOP-225 −40°C ~ 95°C FAN8412MX_NL 8-SOP-225 −40°C ~ 95°C FAN8413M_NL 8-SOP-225 −40°C ~ 95°C FAN8413MX_NL 8-SOP-225 −40°C ~ 95°C Note
X : Tape & Reel
NL : Lead Free
Rev.1.0.3
©2004 Fairchild Semiconductor Corporation
Page Summary Contents For Fairchild Fan8412M F8413M Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 16 |
| File Size | 315.25 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating voltage range for this predriver?
It supports a wide range of operation voltages from 4V to 28V.
How does the unit detect motor lock, and can it recover automatically?
When locked, the LD/TACO pins are monitored for internal charging signals, triggering both an alarm output (AL) and automatic restart functions.
What specific parameters govern the auto-restart time (T)?
The auto-restart time is proportional to the external capacitance (C) connected to the LD pin.
Is this device suitable for all DC fan motor applications?
It is specifically suited as a predriver for DC cooling fan motors and locks motor protection using an open collector circuit.
