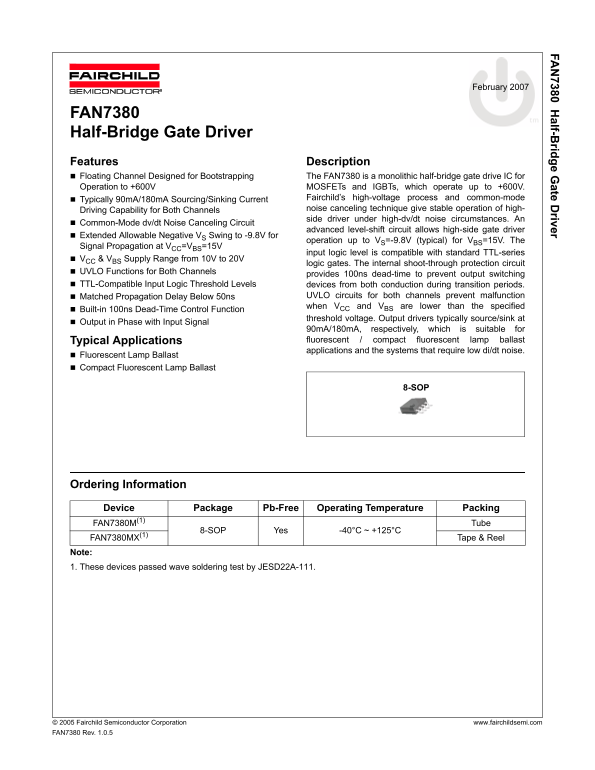

Fairchild FAN7380 Data Handbook

FA 7380 H alf-B ridge G ate D river

February 2007

FAN7380 Half-Bridge Gate Driver Features Description Floating Channel Designed for Bootstrapping The FAN7380 is a monolithic half-bridge gate drive IC for Operation to +600V MOSFETs and IGBTs, which operate up to +600V.

Typically 90m A/180m A Sourcing/Sinking Current Fairchild’s high-voltage process and common-mode Driving Capability for Both Channels noise canceling technique give stable operation of high- side driver under high-dv/dt noise circumstances. An

Common-Mode dv/dt Noise Canceling Circuit

advanced level-shift circuit allows high-side gate driver

Extended Allowable Negative VS Swing to -9.8V for

operation up to VS=-9.8V (typical) for VBS=15V. The

Signal Propagation at VCC=VBS=15V

input logic level is compatible with standard TTL-series

VCC & VBS Supply Range from 10V to 20V

logic gates. The internal shoot-through protection circuit

UVLO Functions for Both Channels

provides 100ns dead-time to prevent output switching

TTL-Compatible Input Logic Threshold Levels devices from both conduction during transition periods.

Matched Propagation Delay Below 50ns UVLO circuits for both channels prevent malfunction when VCC and VBS are lower than the specified

Built-in 100ns Dead-Time Control Function

threshold voltage. Output drivers typically source/sink at

Output in Phase with Input Signal

90m A/180m A, respectively, which is suitable for Typical Applications fluorescent / compact fluorescent lamp ballast applications and the systems that require low di/dt noise.

Fluorescent Lamp Ballast Compact Fluorescent Lamp Ballast

8-SOP

Ordering Information Device Package Pb-Free Operating Temperature Packing FAN7380M(1) Tube

8-SOP Yes -40°C ~ +125°C

FAN7380MX(1) Tape & Reel

Note: 1. These devices passed wave soldering test by JESD22A-111.
