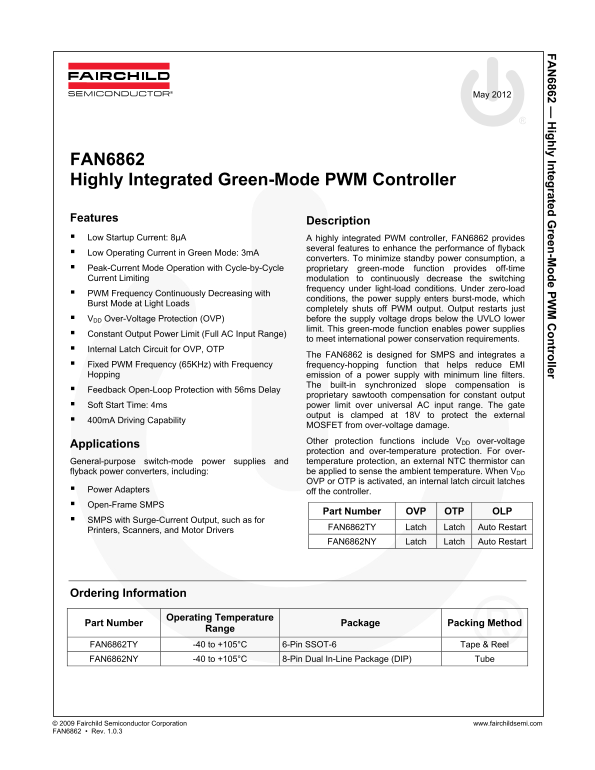

6862 — ig ly In teg rated reen -M e P tro ller
May 2012
FAN6862 Highly Integrated Green-Mode PWM Controller
Features
Description
Low Startup Current: 8µA A highly integrated PWM controller, FAN6862 provides
several features to enhance the performance of flyback
Low Operating Current in Green Mode: 3m A
converters. To minimize standby power consumption, a
Peak-Current Mode Operation with Cycle-by-Cycle proprietary green-mode function provides off-time Current Limiting modulation to continuously decrease the switching
frequency under light-load conditions. Under zero-load
PWM Frequency Continuously Decreasing with
conditions, the power supply enters burst-mode, which
Burst Mode at Light Loads
completely shuts off PWM output. Output restarts just
VDD Over-Voltage Protection (OVP) before the supply voltage drops below the UVLO lower
limit. This green-mode function enables power supplies
Constant Output Power Limit (Full AC Input Range)
to meet international power conservation requirements.
Internal Latch Circuit for OVP, OTP
The FAN6862 is designed for SMPS and integrates a
Fixed PWM Frequency (65KHz) with Frequency frequency-hopping function that helps reduce EMI Hopping emission of a power supply with minimum line filters.
The built-in synchronized slope compensation is
Feedback Open-Loop Protection with 56ms Delay
proprietary sawtooth compensation for constant output Soft Start Time: 4ms power limit over universal AC input range. The gate output is clamped at 18V to protect the external
400m A Driving Capability
MOSFET from over-voltage damage. Other protection functions include VDD over-voltage
Applications
protection and over-temperature protection. For over- General-purpose switch-mode power supplies and temperature protection, an external NTC thermistor can flyback power converters, including: be applied to sense the ambient temperature. When VDD OVP or OTP is activated, an internal latch circuit latches
Power Adapters off the controller. Open-Frame SMPS
Part Number OVP OTP OLP
SMPS with Surge-Current Output, such as for
FAN6862TY Latch Latch Auto Restart
Printers, Scanners, and Motor Drivers
FAN6862NY Latch Latch Auto Restart
Ordering Information
Operating Temperature
Part Number Package Packing Method
Range
FAN6862TY -40 to +105°C 6-Pin SSOT-6 Tape & Reel FAN6862NY -40 to +105°C 8-Pin Dual In-Line Package (DIP) Tube
