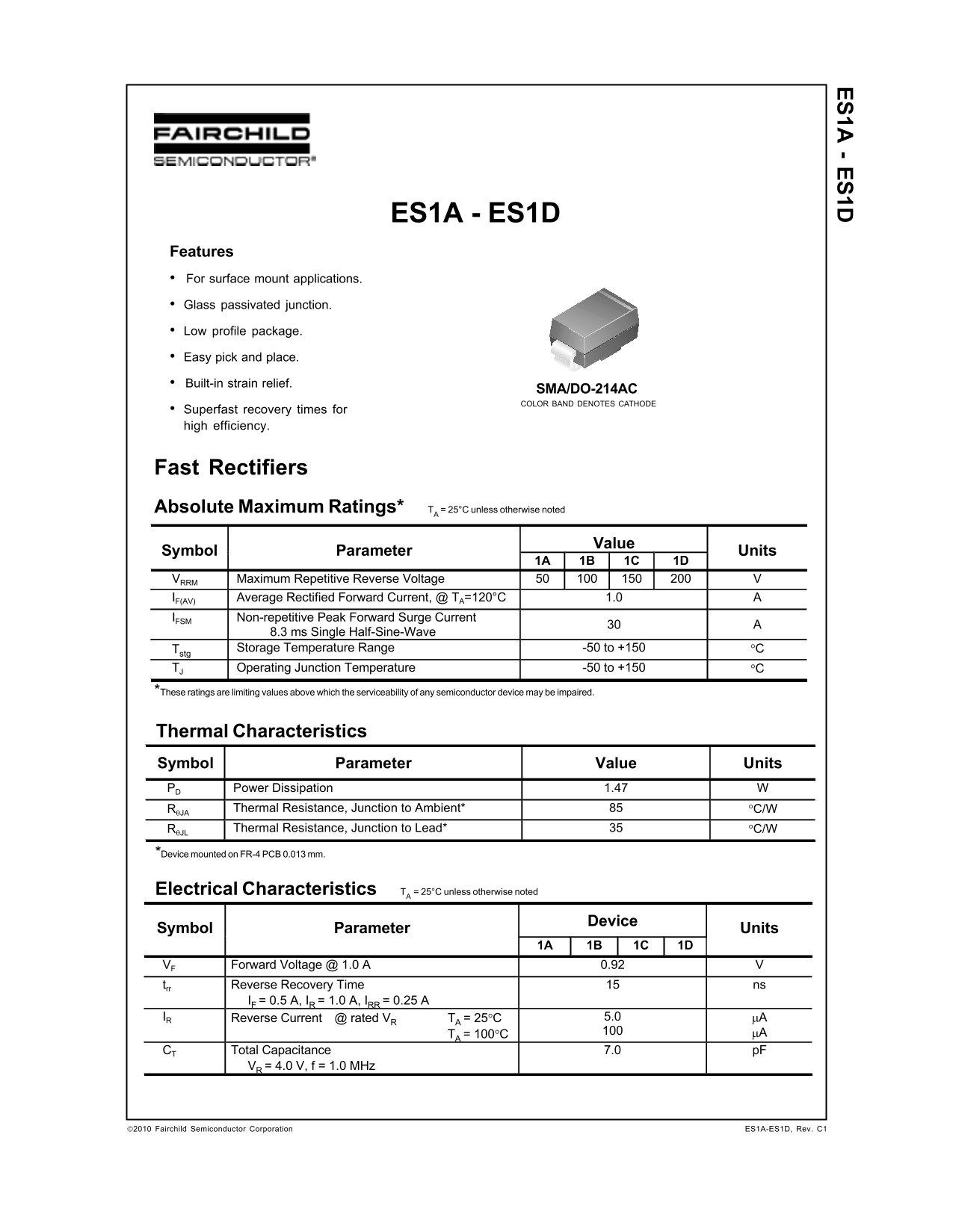

ES1A - ES1D
ES1A - ES1D
Features • For surface mount applications. Glass passivated junction. Low profile package. Easy pick and place. • Built-in strain relief.
SMA/DO-214AC COLOR BAND DENOTES CATHODE
Superfast recovery times for high efficiency.
Fast Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted
Value
Symbol Parameter Units
VRRM Maximum Repetitive Reverse Voltage 50 100 150 200 V IF(AV) Average Rectified Forward Current, @ TA=120°C 1.0 A IFSM Non-repetitive Peak Forward Surge Current
8.3 ms Single Half-Sine-Wave 30 A
Tstg Storage Temperature Range -50 to +150 °C TJ Operating Junction Temperature -50 to +150 °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 1.47 W RθJA Thermal Resistance, Junction to Ambient* 85 °C/W RθJL Thermal Resistance, Junction to Lead* 35 °C/W *Device mounted on FR-4 PCB 0.013 mm.
Electrical Characteristics TA = 25°C unless otherwise noted
Device
Symbol Parameter Units 1A 1B 1C 1D VF Forward Voltage @ 1.0 A 0.92 V trr Reverse Recovery Time 15 ns
IF = 0.5 A, IR = 1.0 A, IRR = 0.25 A
IR Reverse Current @ rated VR TA = 25°C 5.0 µA
TA = 100°C µA
CT Total Capacitance 7.0 p F
VR = 4.0 V, f = 1.0 MHz
ES1A-ES1D, Rev. C12010 Fairchild Semiconductor Corporation
