The DM7404 provides six independent inverting logic gates, making it a foundational component for digital circuit design. This manual serves as comprehensive technical documentation, covering critical electrical characteristics, absolute maximum ratings, and precise timing parameters (such as propagation delay). It details various package options (SOIC/PDIP) and operational guidelines necessary for electronic engineers to reliably integrate this integrated circuit into complex switching logic systems.

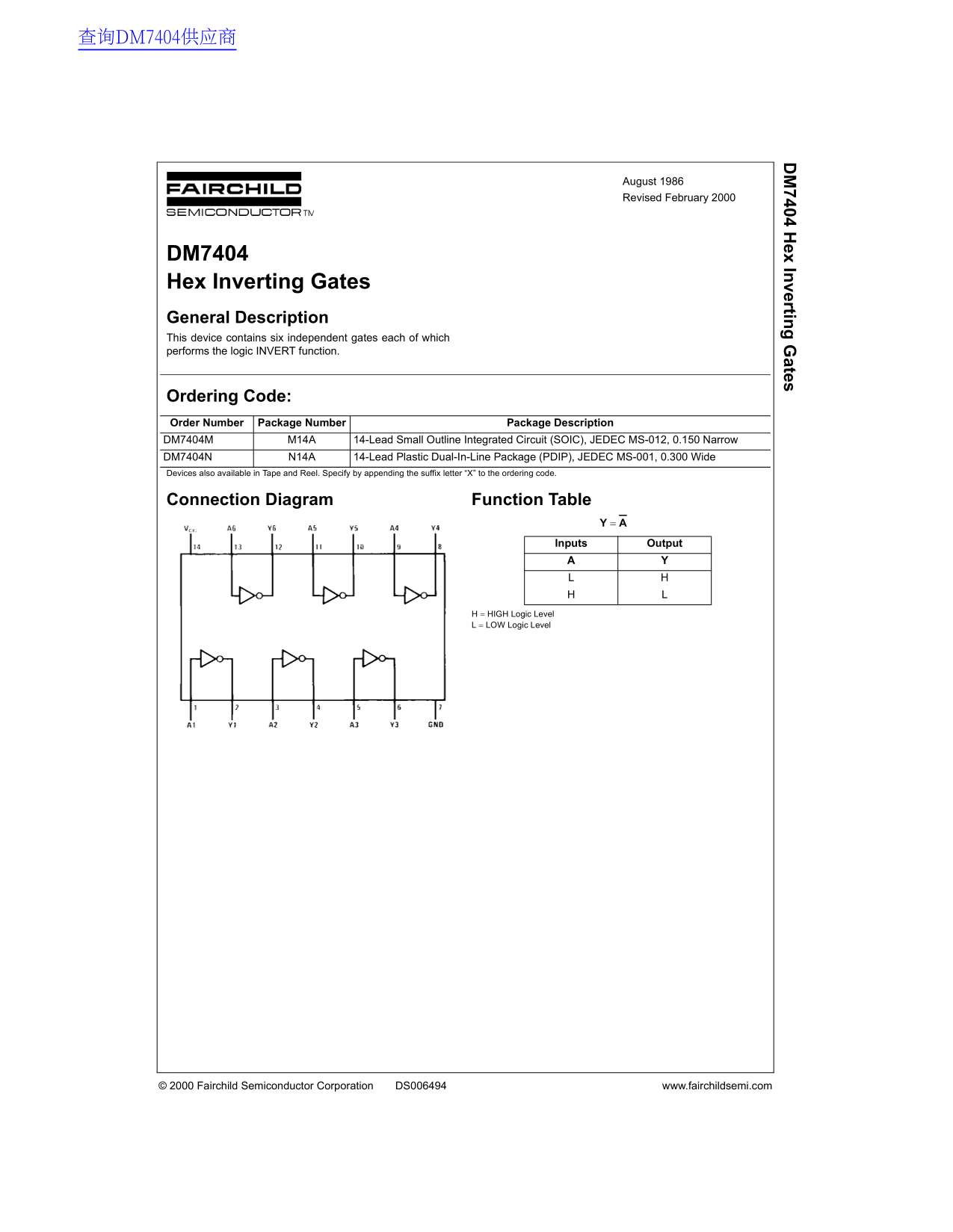

Page 1 Text Content
查询DM7404供应商
7404 H ex In vertin ates
August 1986 Revised February 2000
DM7404 Hex Inverting Gates General Description This device contains six independent gates each of which performs the logic INVERT function.
Ordering Code: Order Number Package Number Package Description DM7404M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow DM7404N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram Function Table
Inputs Output
H = HIGH Logic Level L = LOW Logic Level
© 2000 Fairchild Semiconductor Corporation DS006494 www.fairchildsemi.com
Page Summary Contents For Fairchild DM7404 Hex Inverting Gates Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 4 |
| File Size | 46.39 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What specific logic function does the DM7404 provide?
It contains six independent gates, each performing the INVERT logic function.
What operating temperature range should I use for this device?
The recommended operating free air temperature range is 0°C to +70°C.
What packages and ordering codes are available?
It is available as SOIC in package M14A or PDIP in package N14A. Suffix 'X' specifies Tape and Reel.
What voltage should I be careful not to exceed?
Never operate the device at supply voltages above 7V, as safety cannot be guaranteed.
