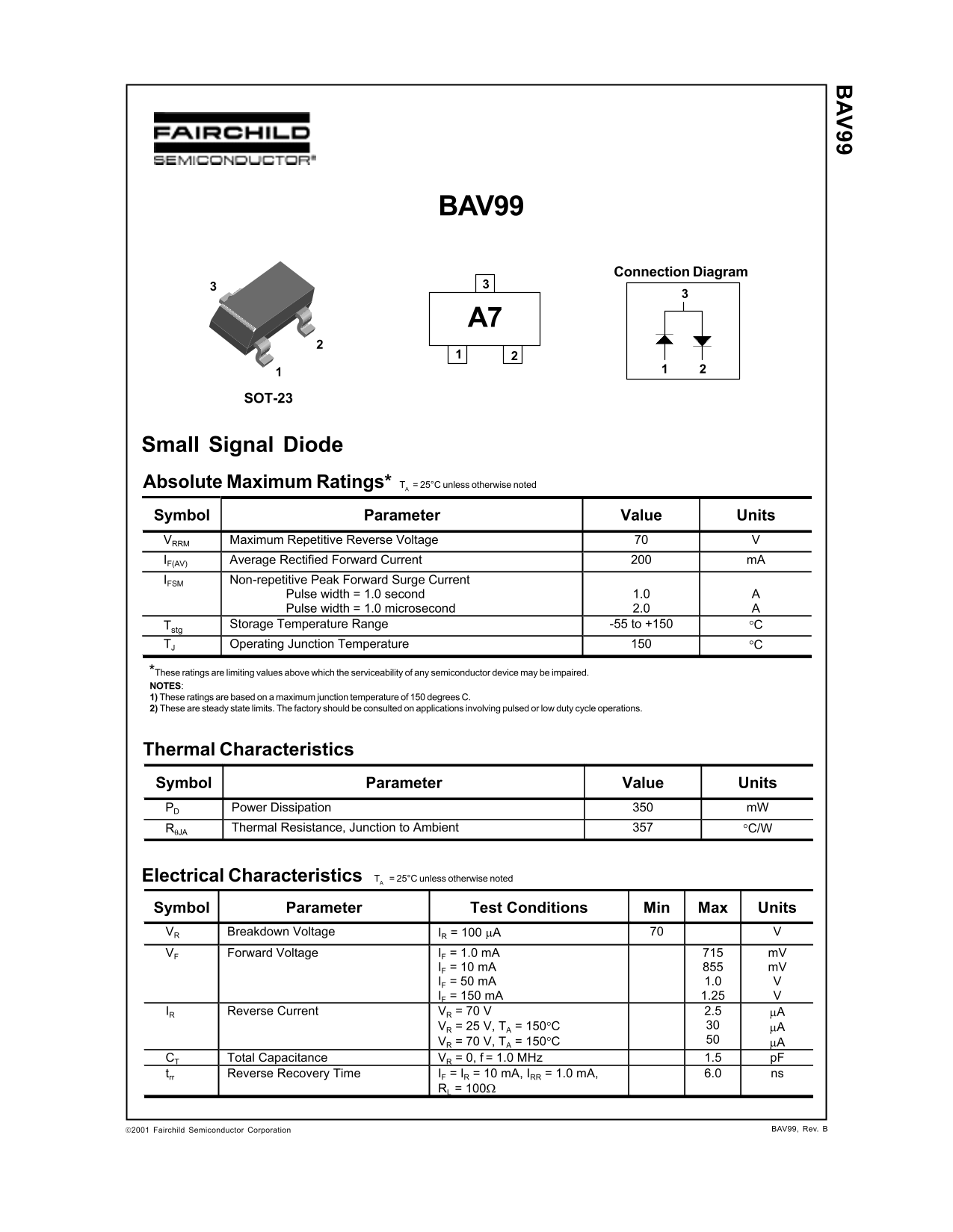

Fairchild Bav99 Data Handbook

BAV99

Connection Diagram

SOT-23

Small Signal Diode Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units VRRM Maximum Repetitive Reverse Voltage 70 V IF(AV) Average Rectified Forward Current 200 m A IFSM Non-repetitive Peak Forward Surge Current

Pulse width = 1.0 second 1.0 Pulse width = 1.0 microsecond 2.0

Tstg Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature 150 °C

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 350 m W RθJA Thermal Resistance, Junction to Ambient 357 °C/W

Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Max Units VR Breakdown Voltage IR = 100 µA 70 V

VF Forward Voltage IF = 1.0 m A m V IF = 10 m A m V

IF = 50 m A 1.0 IF = 150 m A 1.25

IR Reverse Current VR = 70 V 2.5 µA

VR = 25 V, TA = 150°C µA VR = 70 V, TA = 150°C µA

CT Total Capacitance VR = 0, f = 1.0 MHz 1.5 p F

trr Reverse Recovery Time IF = IR = 10 m A, IRR = 1.0 m A, 6.0 ns

RL = 100Ω

2001 Fairchild Semiconductor Corporation BAV99, Rev. B
