Fairchild 74VHC14 Data Handbook
Summary
The VHC14 is a high-speed CMOS Hex Schmitt Inverter designed for robust signal conditioning and reliable interfacing in mixed-voltage systems (e.g., 5V to 3V). Featuring adjustable hysteresis thresholds, superior noise immunity, and built-in input protection (0V to 7V), it generates sharply defined, jitter-free output signals. This datasheet provides detailed electrical specifications, operating ratings, pin configurations, and various surface-mount packages for engineers requiring stable signal processing.
Page 1 Text Content

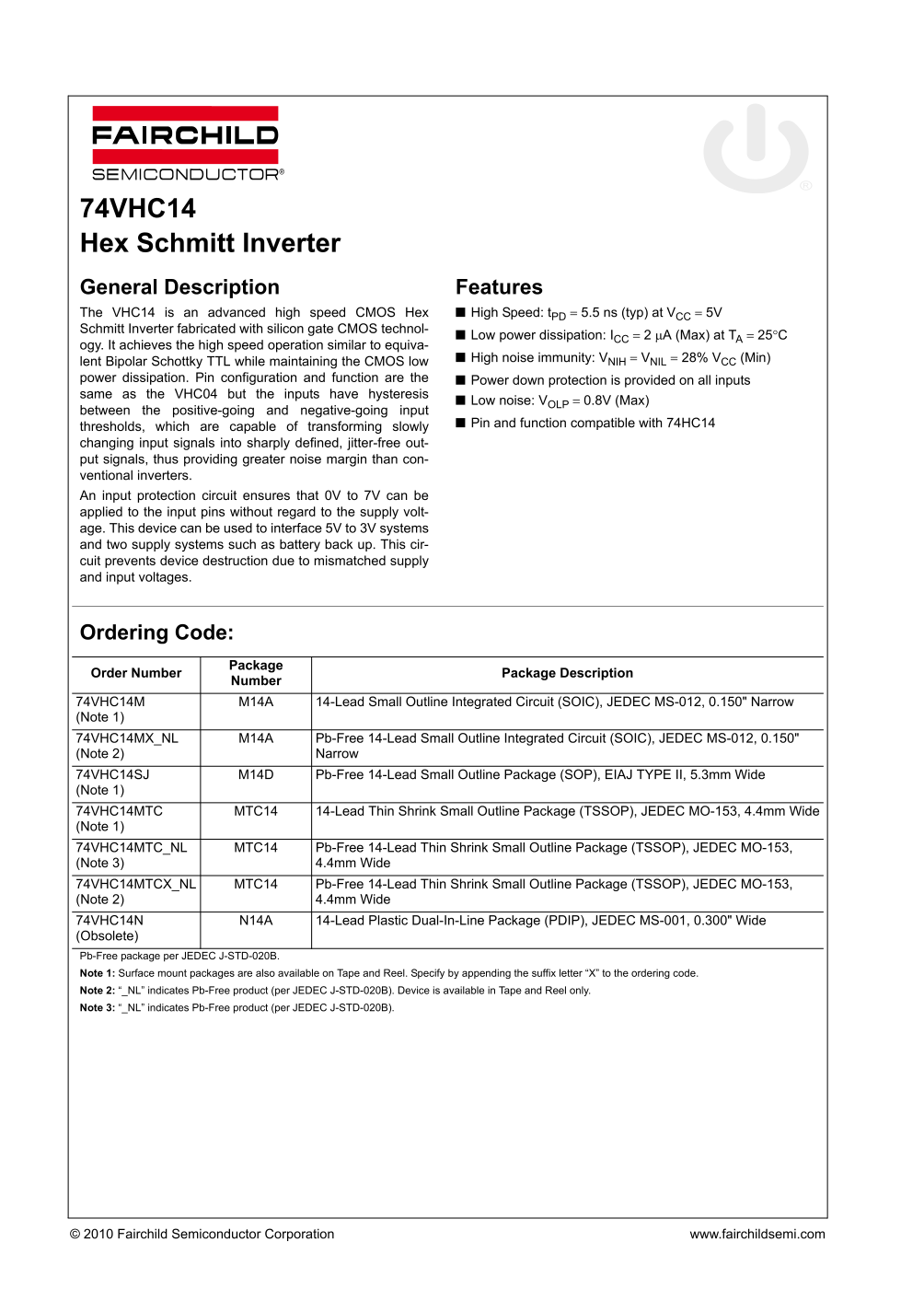

74VHC14 Hex Schmitt Inverter General Description Features The VHC14 is an advanced high speed CMOS Hex High Speed: t PD = 5.5 ns (typ) at VCC = 5V Schmitt Inverter fabricated with silicon gate CMOS technol-
Low power dissipation: ICC = 2 μA (Max) at TA = 25°C
ogy. It achieves the high speed operation similar to equiva-
lent Bipolar Schottky TTL while maintaining the CMOS low High noise immunity: VNIH = VNIL = 28% VCC (Min)
power dissipation. Pin configuration and function are the Power down protection is provided on all inputs same as the VHC04 but the inputs have hysteresis
Low noise: VOLP = 0.8V (Max)
between the positive-going and negative-going input
thresholds, which are capable of transforming slowly Pin and function compatible with 74HC14
changing input signals into sharply defined, jitter-free out- put signals, thus providing greater noise margin than con- ventional inverters. An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply volt- age. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This cir- cuit prevents device destruction due to mismatched supply and input voltages.
Ordering Code:
Package
Order Number Package Description
Number
74VHC14M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow (Note 1) 74VHC14MX_NL M14A Pb-Free 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" (Note 2) Narrow 74VHC14SJ M14D Pb-Free 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide (Note 1) 74VHC14MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide (Note 1) 74VHC14MTC_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, (Note 3) 4.4mm Wide 74VHC14MTCX_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, (Note 2) 4.4mm Wide 74VHC14N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide (Obsolete) Pb-Free package per JEDEC J-STD-020B. Note 1: Surface mount packages are also available on Tape and Reel. Specify by appending the suffix letter X to the ordering code. Note 2: _NL indicates Pb-Free product (per JEDEC J-STD-020B). Device is available in Tape and Reel only. Note 3: _NL indicates Pb-Free product (per JEDEC J-STD-020B).
