The 74VHC04 is a high-speed CMOS Hex Inverter designed for stable and reliable digital logic interfacing. Featuring low power dissipation, excellent noise immunity, and built-in input protection circuits, it enables seamless system integration across various voltage levels (like 5V to 3V). This manual provides engineers and electronics designers with comprehensive technical specifications, including detailed electrical characteristics, absolute maximum ratings, and diverse packaging options essential for developing high-performance circuit boards.

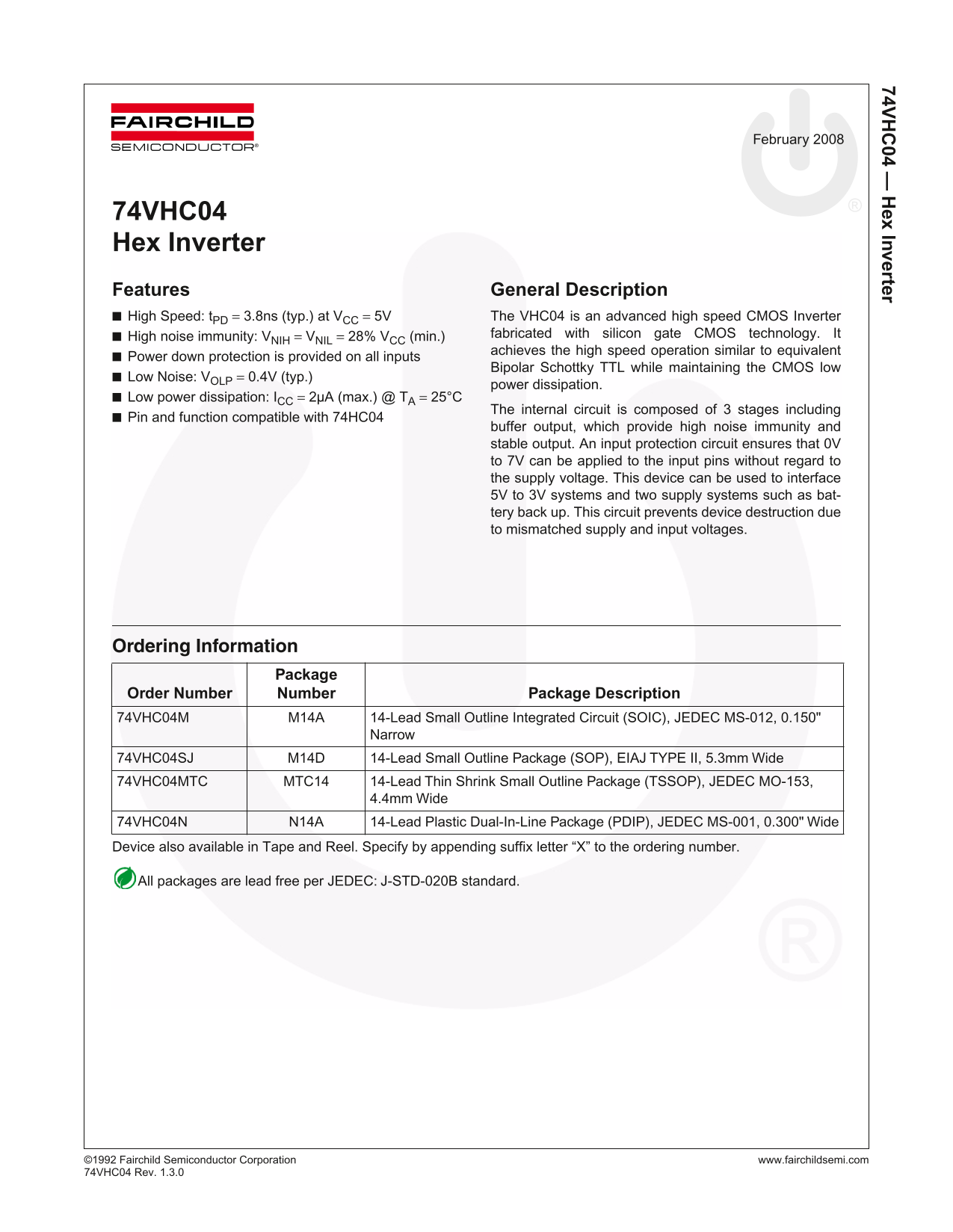

Page 1 Text Content
74V 04 — ex Inverter
February 2008
74VHC04 Hex Inverter Features General Description High Speed: t PD = 3.8ns (typ.) at VCC = 5V The VHC04 is an advanced high speed CMOS Inverter
High noise immunity: VNIH = VNIL = 28% VCC (min.) fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent
Power down protection is provided on all inputs
Bipolar Schottky TTL while maintaining the CMOS low
Low Noise: VOLP = 0.4V (typ.)
power dissipation.
Low power dissipation: ICC = 2µA (max.) @ TA = 25°C
The internal circuit is composed of 3 stages including
Pin and function compatible with 74HC04
buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as bat- tery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Ordering Information
Package
Order Number Number Package Description 74VHC04M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150"
Narrow
74VHC04SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74VHC04MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
74VHC04N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.
All packages are lead free per JEDEC: J-STD-020B standard.
©1 992 Fairchild Semiconductor Corporation www.fairchildsemi.com 74V HC04 Rev. 1.3.0
Page Summary Contents For Fairchild 74VHC04 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 293.83 KB |
| Published | July 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of systems can this device interface between?
It can interface 5V to 3V systems and two separate supply systems, such as battery back up.
How is input voltage protected during operation?
An internal circuit ensures that voltages from 0V to 7V can be applied to the input pins without damaging the device.
What are the recommended operating conditions for the VHC04 Inverter?
The supply voltage should be between 2.0V and +5.5V, with an operating temperature of –40°C to +85°C.
How fast is this CMOS Inverter at optimal operating voltage?
It features high speed performance, rated at a typical time (t) of 3.8ns at V = 5V.
