This advanced 16-bit bidirectional transceiver is engineered for robust, low voltage data communication applications operating between 1.65V and 3.6V. Featuring non-inverting buffers, three-state outputs, and integrated 26Ω series resistors on one port, this device significantly reduces noise in bus architectures. The accompanying manual provides comprehensive technical details, including electrical characteristics, timing diagrams, and performance specifications. It is the ideal choice for engineers developing high-speed data buses, memory address drivers, or sophisticated transceivers requiring low power consumption and reliable signal integrity.

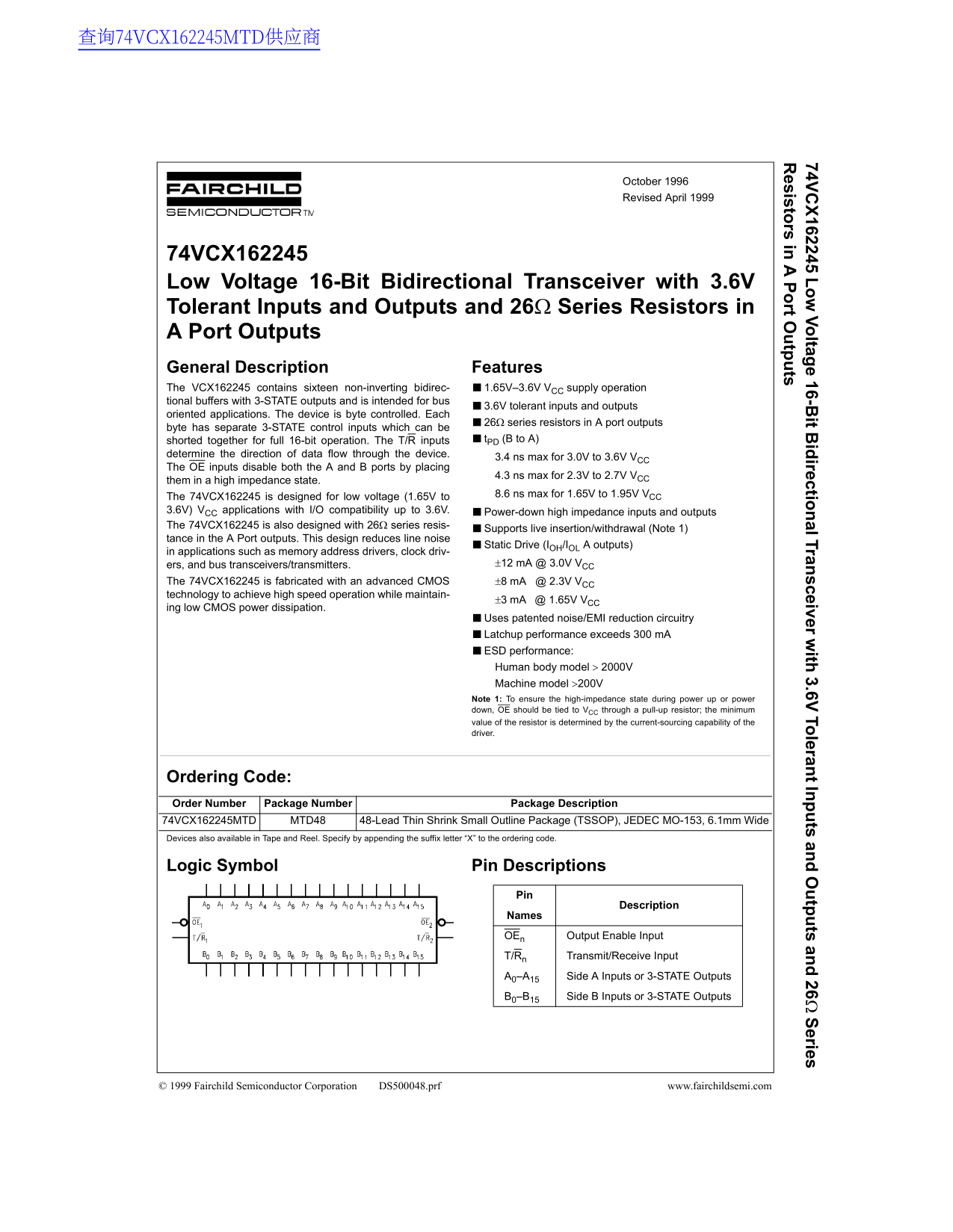

Page 1 Text Content
查询74VCX162245MTD供应商
74V 162245 L ltag e 16-B it B id irectio al Tran sceiver w ith 3.6V To leran t In ts an tp ts an 26Ω eries esisto rs in rt O tp ts
October 1996 Revised April 1999
74VCX162245 Low Voltage 16-Bit Bidirectional Transceiver with 3.6V Tolerant Inputs and Outputs and 26Ω Series Resistors in A Port Outputs General Description Features The VCX162245 contains sixteen non-inverting bidirec- 1.65V–3.6V VCC supply operation tional buffers with 3-STATE outputs and is intended for bus
3.6V tolerant inputs and outputs
oriented applications. The device is byte controlled. Each
26Ω series resistors in A port outputs
byte has separate 3-STATE control inputs which can be
shorted together for full 16-bit operation. The T/R inputs t PD (B to A)
determine the direction of data flow through the device.
3.4 ns max for 3.0V to 3.6V VCC
The OE inputs disable both the A and B ports by placing
4.3 ns max for 2.3V to 2.7V VCC
them in a high impedance state.
The 74VCX162245 is designed for low voltage (1.65V to 8.6 ns max for 1.65V to 1.95V VCC
3.6V) VCC applications with I/O compatibility up to 3.6V. Power-down high impedance inputs and outputs The 74VCX162245 is also designed with 26Ω series resis-
Supports live insertion/withdrawal (Note 1)
tance in the A Port outputs. This design reduces line noise
Static Drive (IOH/IOL A outputs)
in applications such as memory address drivers, clock driv-
ers, and bus transceivers/transmitters. ±12 m A @ 3.0V VCC
The 74VCX162245 is fabricated with an advanced CMOS ±8 m A @ 2.3V VCC technology to achieve high speed operation while maintain-
±3 m A @ 1.65V VCC
ing low CMOS power dissipation.
Uses patented noise/EMI reduction circuitry Latchup performance exceeds 300 m A ESD performance: Human body model > 2000V Machine model >200V Note 1: To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
Ordering Code: Order Number Package Number Package Description 74VCX162245MTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol Pin Descriptions
Description
Names
OEn Output Enable Input
T/Rn Transmit/Receive Input
A0–A15 Side A Inputs or 3-STATE Outputs
B0–B15 Side B Inputs or 3-STATE Outputs
© 1999 Fairchild Semiconductor Corporation DS500048.prf www.fairchildsemi.com
Page Summary Contents For Fairchild 74VCX162245 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 8 |
| File Size | 60.41 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What input voltages does the VCX162245 support?
It is designed for low voltage applications from 1.65V to 3.6V, with I/O compatibility up to 3.6V.
How should I configure the Output Enable (OE) pin?
To ensure a high-impedance state during power cycle, OE must be tied to V through a pull-up resistor.
Does this device support live data insertion or withdrawal?
Yes, a key feature is its design that supports live insertion/withdrawal in the A Port outputs.
What is the operating temperature range?
The recommended operating ambient temperature range is -40°C to +85°C.
