Fairchild 74VCX132 Data Handbook
Summary
This ultra-stable quad NAND gate IC provides reliable logic operation in low voltage systems (1.65V to 3.6V). Featuring Schmitt Trigger inputs and 3.6V tolerant I/O, it ensures high noise immunity critical for complex circuit designs. The comprehensive datasheet details advanced CMOS electrical characteristics, operating thresholds across multiple VCC levels, and various packaging options (SOIC, TSSOP), making it ideal for electronics designers building efficient, low-power logic circuits.

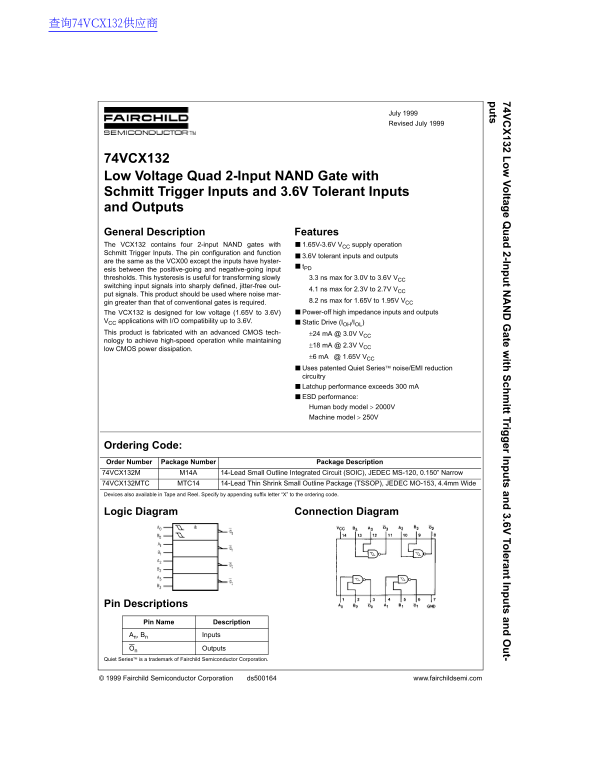

Page 1 Text Content
查询74VCX132供应商
74V 132 L ltag e Q ad 2-In t N ate w ith ch itt Trig er In ts an 3.6V To leran t In ts an t- ts
July 1999 Revised July 1999
74VCX132 Low Voltage Quad 2-Input NAND Gate with Schmitt Trigger Inputs and 3.6V Tolerant Inputs and Outputs General Description Features The VCX132 contains four 2-input NAND gates with 1.65V-3.6V VCC supply operation Schmitt Trigger Inputs. The pin configuration and function
3.6V tolerant inputs and outputs
are the same as the VCX00 except the inputs have hyster-
esis between the positive-going and negative-going input thresholds. This hysteresis is useful for transforming slowly 3.3 ns max for 3.0V to 3.6V VCC switching input signals into sharply defined, jitter-free out-
4.1 ns max for 2.3V to 2.7V VCC
put signals. This product should be used where noise mar-
gin greater than that of conventional gates is required. 8.2 ns max for 1.65V to 1.95V VCC The VCX132 is designed for low voltage (1.65V to 3.6V) Power-off high impedance inputs and outputs
VCC applications with I/O compatibility up to 3.6V. Static Drive (IOH/IOL) This product is fabricated with an advanced CMOS tech- ±24 m A @ 3.0V VCC nology to achieve high-speed operation while maintaining
±18 m A @ 2.3V VCC
low CMOS power dissipation.
±6 m A @ 1.65V VCC Uses patented Quiet Series noise/EMI reduction circuitry Latchup performance exceeds 300 m A ESD performance: Human body model > 2000V Machine model > 250V
Ordering Code: Order Number Package Number Package Description 74VCX132M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow 74VCX132MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Devices also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.
Logic Diagram Connection Diagram
Pin Descriptions
Pin Name Description
An, Bn Inputs
On Outputs
Quiet Series is a trademark of Fairchild Semiconductor Corporation.
© 1999 Fairchild Semiconductor Corporation ds500164 www.fairchildsemi.com
