74V 00 L ltag e Q ad 2-In t N ate w ith 3.6V To leran t In ts an tp ts

July 1999 Revised July 1999

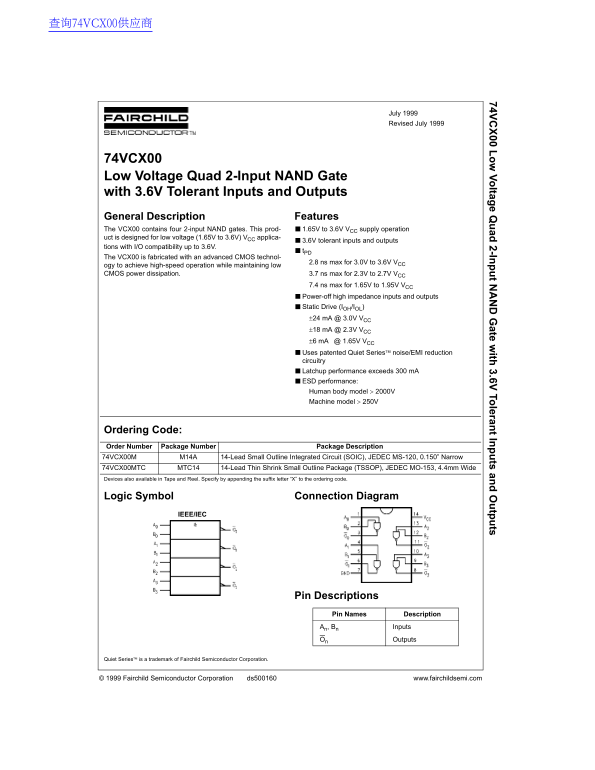

74VCX00 Low Voltage Quad 2-Input NAND Gate with 3.6V Tolerant Inputs and Outputs General Description Features The VCX00 contains four 2-input NAND gates. This prod- 1.65V to 3.6V VCC supply operation uct is designed for low voltage (1.65V to 3.6V) VCC applica-

3.6V tolerant inputs and outputs

tions with I/O compatibility up to 3.6V.

The VCX00 is fabricated with an advanced CMOS technol-

2.8 ns max for 3.0V to 3.6V VCC

ogy to achieve high-speed operation while maintaining low CMOS power dissipation. 3.7 ns max for 2.3V to 2.7V VCC

7.4 ns max for 1.65V to 1.95V VCC Power-off high impedance inputs and outputs Static Drive (IOH/IOL) ±24 m A @ 3.0V VCC ±18 m A @ 2.3V VCC ±6 m A @ 1.65V VCC Uses patented Quiet Series noise/EMI reduction circuitry Latchup performance exceeds 300 m A ESD performance: Human body model > 2000V Machine model > 250V

Ordering Code: Order Number Package Number Package Description 74VCX00M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow 74VCX00MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Symbol Connection Diagram

IEEE/IEC

Pin Descriptions Pin Names Description

An, Bn Inputs

On Outputs

Quiet Series is a trademark of Fairchild Semiconductor Corporation.

© 1999 Fairchild Semiconductor Corporation ds500160 www.fairchildsemi.com
