The 74LVX4245 is an essential 8-bit dual-supply translating transceiver built to manage mixed voltage signals. It provides a bidirectional interface, seamlessly connecting separate 5V and 3V data buses. This device ensures reliable signal translation while maintaining compatibility with TTL logic levels in complex environments. The manual details its technical specifications, including T/R control inputs and guaranteed switching performance. It is specifically designed for embedded systems, such as laptops and industrial controllers, that must integrate both stable 5V components and modern 3.3V CPU subsystems.

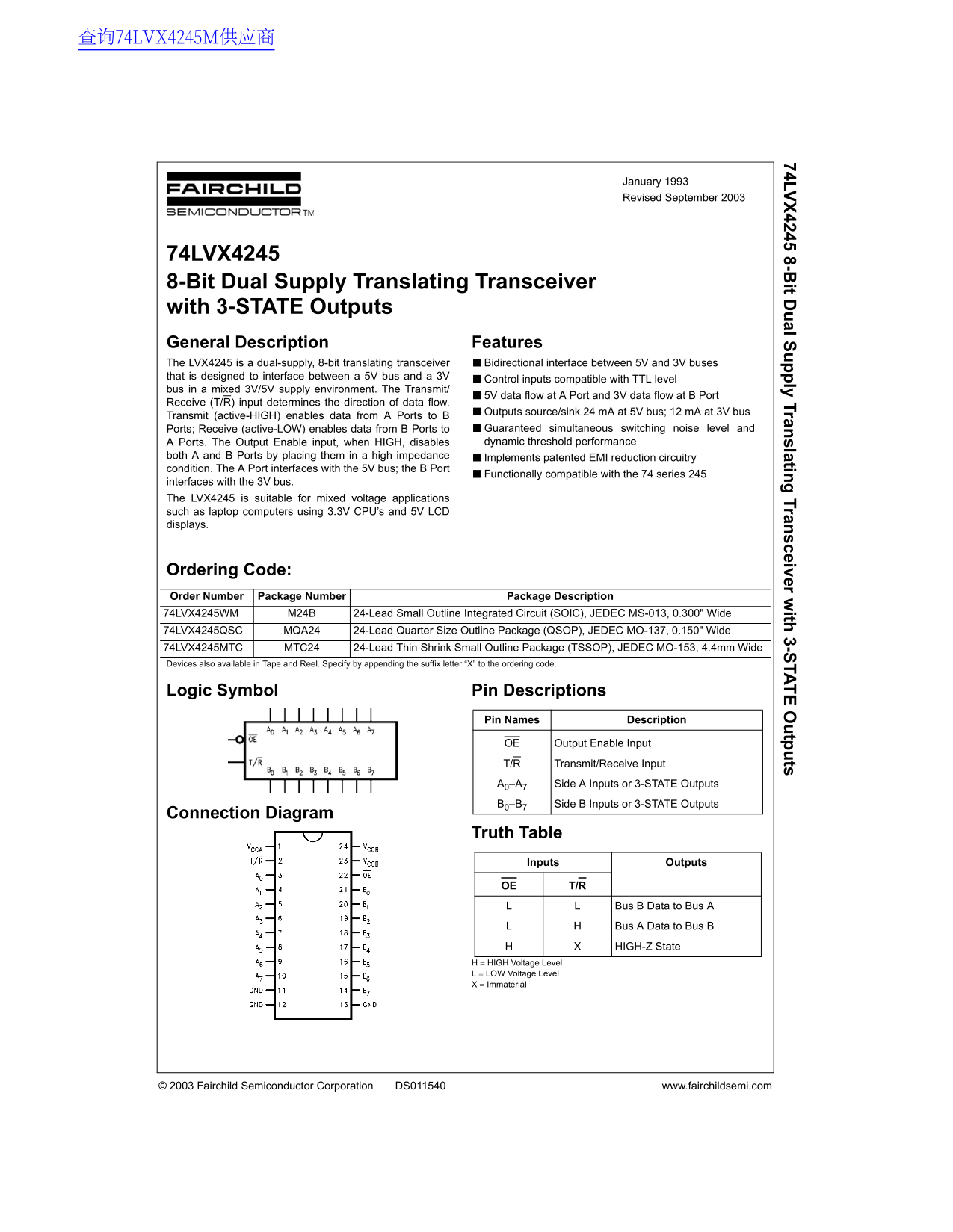

Page 1 Text Content
查询74LVX4245M供应商
74LV 4245 8-B it D al S ly Tran slatin Tran sceiver w ith 3-S TA tp ts
January 1993 Revised September 2003
74LVX4245 8-Bit Dual Supply Translating Transceiver with 3-STATE Outputs General Description Features The LVX4245 is a dual-supply, 8-bit translating transceiver ■Bidirectional interface between 5V and 3V buses that is designed to interface between a 5V bus and a 3V ■Control inputs compatible with TTL level bus in a mixed 3V/5V supply environment. The Transmit/
■5V data flow at A Port and 3V data flow at B Port
Receive (T/R) input determines the direction of data flow.
■Outputs source/sink 24 m A at 5V bus; 12 m A at 3V bus
Transmit (active-HIGH) enables data from A Ports to B
Ports; Receive (active-LOW) enables data from B Ports to ■Guaranteed simultaneous switching noise level and A Ports. The Output Enable input, when HIGH, disables dynamic threshold performance
both A and B Ports by placing them in a high impedance Implements patented EMI reduction circuitry condition. The A Port interfaces with the 5V bus; the B Port
■Functionally compatible with the 74 series 245
interfaces with the 3V bus. The LVX4245 is suitable for mixed voltage applications such as laptop computers using 3.3V CPU’s and 5V LCD displays.
Ordering Code: Order Number Package Number Package Description 74LVX4245WM M24B 24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide 74LVX4245QSC MQA24 24-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150" Wide 74LVX4245MTC MTC24 24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol Pin Descriptions
Pin Names Description
OE Output Enable Input
T/R Transmit/Receive Input
A0–A7 Side A Inputs or 3-STATE Outputs
B0–B7 Side B Inputs or 3-STATE Outputs
Connection Diagram
Truth Table Inputs Outputs
OE T/R
Bus B Data to Bus A
Bus A Data to Bus B
HIGH-Z State
H = HIGH Voltage Level L = LOW Voltage Level X = Immaterial
© 2003 Fairchild Semiconductor Corporation DS011540 www.fairchildsemi.com
Page Summary Contents For Fairchild 74LVX4245 8-Bit Dual Supply Translator Transceiver with 3-State Outputs - Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 9 |
| File Size | 89.88 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of mixed voltage applications is the LVX4245 designed for?
It interfaces between a 5V bus and a 3V bus, making it suitable for systems like laptop computers using both 3.3V CPUs and 5V LCD displays.
How are A and B Ports placed into a high-impedance state?
Setting the Output Enable (OE) input to HIGH disables both A and B Ports by placing them in a high impedance state.
What signaling determines the direction of data flow?
The Transmit/Receive (T/R) input determines the direction, with active-HIGH enabling data from A Ports to B Ports, and active-LOW doing the reverse.
What physical packages are available for ordering this transceiver component?
Available package types include 24-Lead Small Outline Integrated Circuit (SOIC/M24B), Quarter Size Outline Package (QSOP/MQA24), and Thin Shrink Small Outline Package (TSSOP/MTC24).
