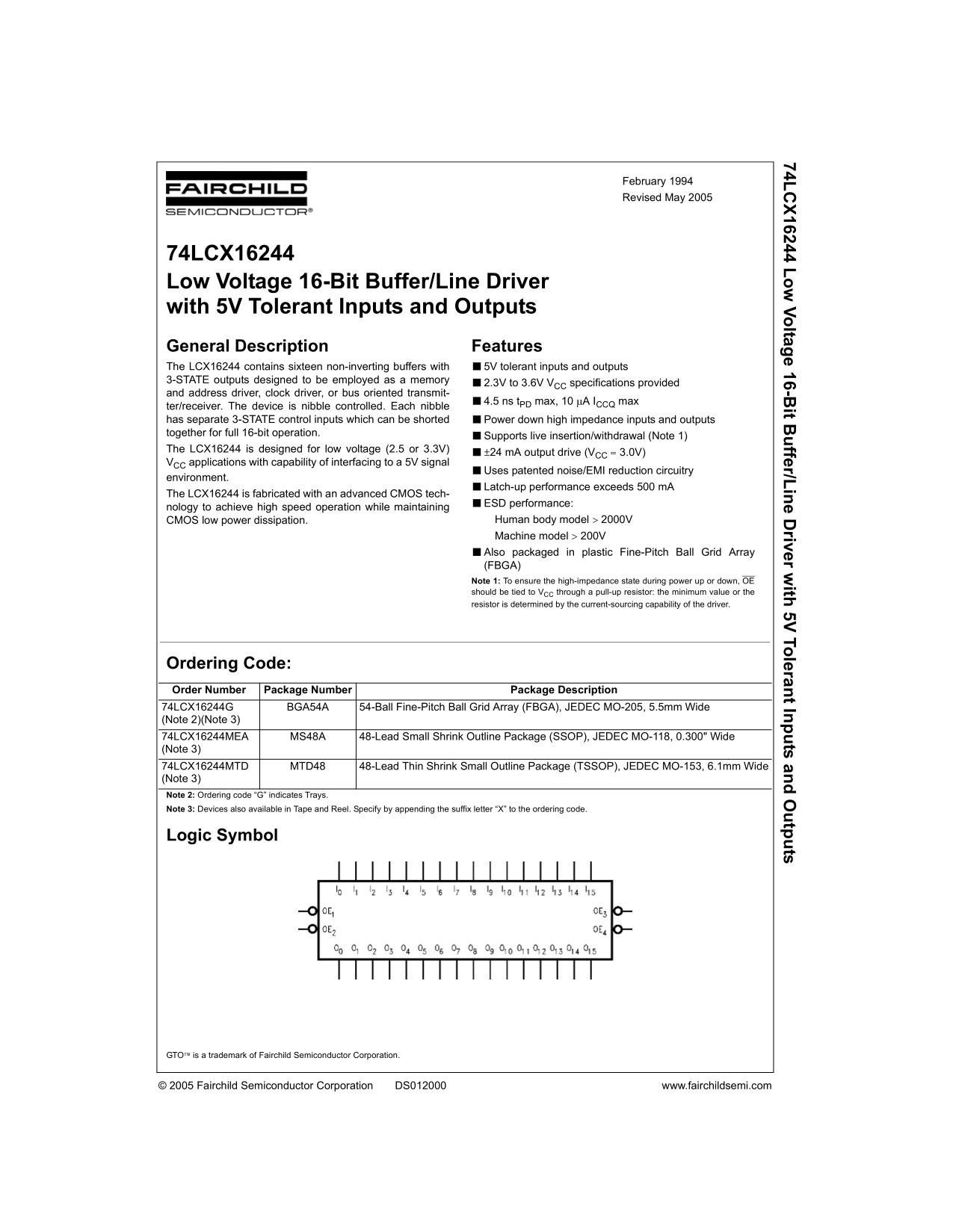

74L 16244 L Vo ltag e 16-B it B ffer/L in e D river w ith 5V To leran t In ts an tp ts
February 1994 Revised May 2005
74LCX16244 Low Voltage 16-Bit Buffer/Line Driver with 5V Tolerant Inputs and Outputs General Description Features The LCX16244 contains sixteen non-inverting buffers with ■5V tolerant inputs and outputs 3-STATE outputs designed to be employed as a memory ■2.3V to 3.6V VCC specifications provided and address driver, clock driver, or bus oriented transmit-
■4.5 ns t PD max, 10 PA ICCQ max
ter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted ■Power down high impedance inputs and outputs together for full 16-bit operation.
■Supports live insertion/withdrawal (Note 1)
The LCX16244 is designed for low voltage (2.5 or 3.3V)
■r24 m A output drive (VCC 3.0V)
VCC applications with capability of interfacing to a 5V signal
■Uses patented noise/EMI reduction circuitry
environment.
■Latch-up performance exceeds 500 m A
The LCX16244 is fabricated with an advanced CMOS tech-
■ESD performance:
nology to achieve high speed operation while maintaining
CMOS low power dissipation. Human body model ! 2000V Machine model ! 200V ■Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) Note 1: To ensure the high-impedance state during power up or down, OE should be tied to VCC through a pull-up resistor: the minimum value or the resistor is determined by the current-sourcing capability of the driver.
Ordering Code: Order Number Package Number Package Description 74LCX16244G BGA54A 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide (Note 2)(Note 3) 74LCX16244MEA MS48A 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide (Note 3) 74LCX16244MTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide (Note 3) Note 2: Ordering code “G” indicates Trays. Note 3: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol
GTO¥ is a trademark of Fairchild Semiconductor Corporation.
© 2005 Fairchild Semiconductor Corporation DS012000 www.fairchildsemi.com
