Fairchild 74LCX162244 Data Handbook

Summary

The LCX162244 is a dedicated low-voltage, 16-bit non-inverting buffer and line driver engineered for reliable data transfer in modern digital systems (suitable for 2.5V or 3.3V applications). Key features include integrated 26Ω resistors to minimize noise and overshoot on bus lines, making it ideal for memory address drivers, clock outputs, and general bus transceiving. This manual provides comprehensive details on its electrical specifications, full operating range, pin assignments across various packages (including BGA, SSOP, and TSSOP), and technical application guidelines necessary for system designers building high-speed peripheral interfaces.

📄 Preview PAGE OF 10

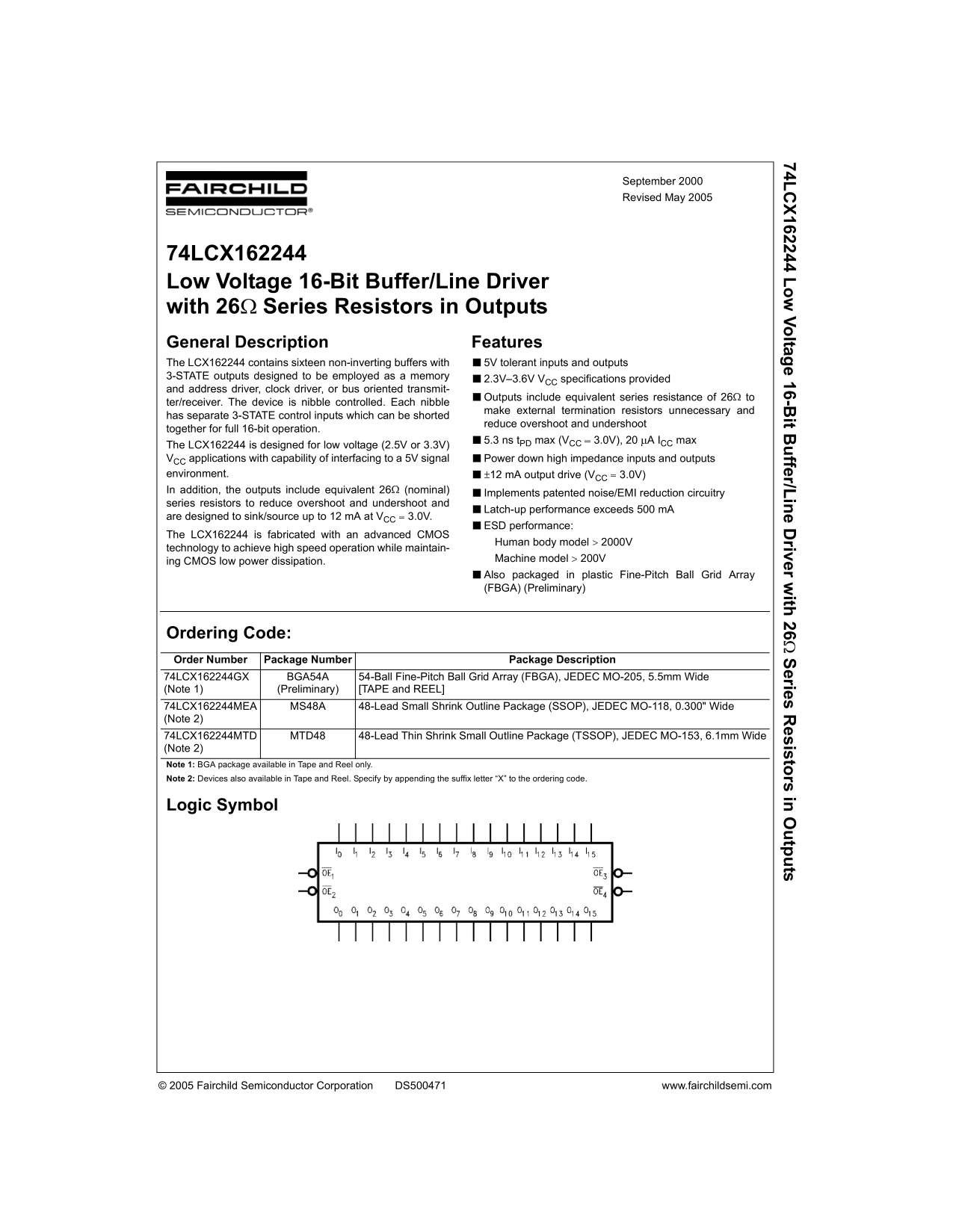

Page 1 Text Content

74L 162244 L Vo ltag e 16-B it B ffer/L in e D river w ith eries R esisto rs in tp ts

September 2000 Revised May 2005

74LCX162244 Low Voltage 16-Bit Buffer/Line Driver with 26 Series Resistors in Outputs General Description Features The LCX162244 contains sixteen non-inverting buffers with ■5V tolerant inputs and outputs 3-STATE outputs designed to be employed as a memory ■2.3V–3.6V VCC specifications provided and address driver, clock driver, or bus oriented transmit-

■Outputs include equivalent series resistance of 26: to

ter/receiver. The device is nibble controlled. Each nibble

make external termination resistors unnecessary and

has separate 3-STATE control inputs which can be shorted

reduce overshoot and undershoot

together for full 16-bit operation.

■5.3 ns t PD max (VCC 3.0V), 20 PA ICC max

The LCX162244 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal ■Power down high impedance inputs and outputs environment. ■r12 m A output drive (VCC 3.0V) In addition, the outputs include equivalent 26: (nominal)

Implements patented noise/EMI reduction circuitry

series resistors to reduce overshoot and undershoot and

■Latch-up performance exceeds 500 m A

are designed to sink/source up to 12 m A at VCC 3.0V.

■ESD performance:

The LCX162244 is fabricated with an advanced CMOS

Human body model ! 2000V

technology to achieve high speed operation while maintain-

ing CMOS low power dissipation. Machine model ! 200V ■Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary)

Ordering Code: Order Number Package Number Package Description 74LCX162244GX BGA54A 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide (Note 1) (Preliminary) [TAPE and REEL] 74LCX162244MEA MS48A 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide (Note 2) 74LCX162244MTD MTD48 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide (Note 2) Note 1: BGA package available in Tape and Reel only. Note 2: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Symbol

© 2005 Fairchild Semiconductor Corporation DS500471 www.fairchildsemi.com

Page Summary Contents For Fairchild 74LCX162244 Data Handbook

Page 1 74L 162244 L Vo ltag e 16-B it B ffer/L in e D river w ith eries R esisto rs in tp ts September 2000 Revised May 2005 74LCX162244 Low Voltage 16-Bit Buffer/Line Driver with 26 Series Resistors in Out...
Page 2 Connection Diagrams Pin Descriptions Pin Assignment for SSOP and TSSOP Pin Names Description OEn Output Enable Input (Active LOW) I0–I15 Inputs O0–O15 Outputs NC No Connect FBGA Pin Assignments O0 NC ...
Page 3 74L Functional Description The LCX162244 contains sixteen non-inverting buffers with can be shorted together to obtain full 16-bit operation. The 3-STATE standard outputs. The device is designed with ...
Page 4 Absolute Maximum Ratings(Note 3) Symbol Parameter Value Conditions Units VCC Supply Voltage 0.5 to 7.0 VI DC Input Voltage 0.5 to 7.0 VO DC Output Voltage 0.5 to 7.0 Output in 3-STATE 0.5 to VCC  ...
Page 5 74L DC Electrical Characteristics (Continued) VCC TA 40q C to 85q C Symbol Parameter Conditions Units (V) Min Max IOFF Power-Off Leakage Current VIN or VO 5.5V PA ICC Quiescent Supply Current VI VCC...
Page 6 AC LOADING and WAVEFORMS Generic for LCX Family FIGURE 1. AC Test Circuit (CL includes probe and jig capacitance) VI CL 6V for VCC 3.3V, 2.7V 50 p F VCC * 2 for VCC 2.5V 30 p F Waveform for Inverting ...
Page 7 74L Schematic Diagram Generic for LCX Family www.fairchildsemi.com
Page 8 Physical Dimensions inches (millimeters) unless otherwise noted 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide Package Number BGA54A Preliminary www.fairchildsemi.com
Page 9 74L Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 48-Lead Small Shrink Outline Package (SSOP), JEDEC MO-118, 0.300" Wide Package Number MS48A www.fairchildsemi.com
Page 10 lta -B it ff er /L in ri ve it er ie es is to rs in tp ts Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 48-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6...
