The 74F1071 is a specialized 18-bit Undershoot/Overshoot Clamp integrated circuit designed to safeguard digital systems from electrical overstress and voltage anomalies. It provides continuous, fast bipolar voltage clamping action and robust ESD protection rated up to ±10 kV, making it ideal for reliability in 5V CMOS/TTL environments. This manual serves as a comprehensive technical guide, detailing the device's operational theory, absolute maximum ratings, precise DC electrical characteristics, and available package options (SOIC, SSOP, TSSOP) for circuit designers requiring reliable bus voltage protection.

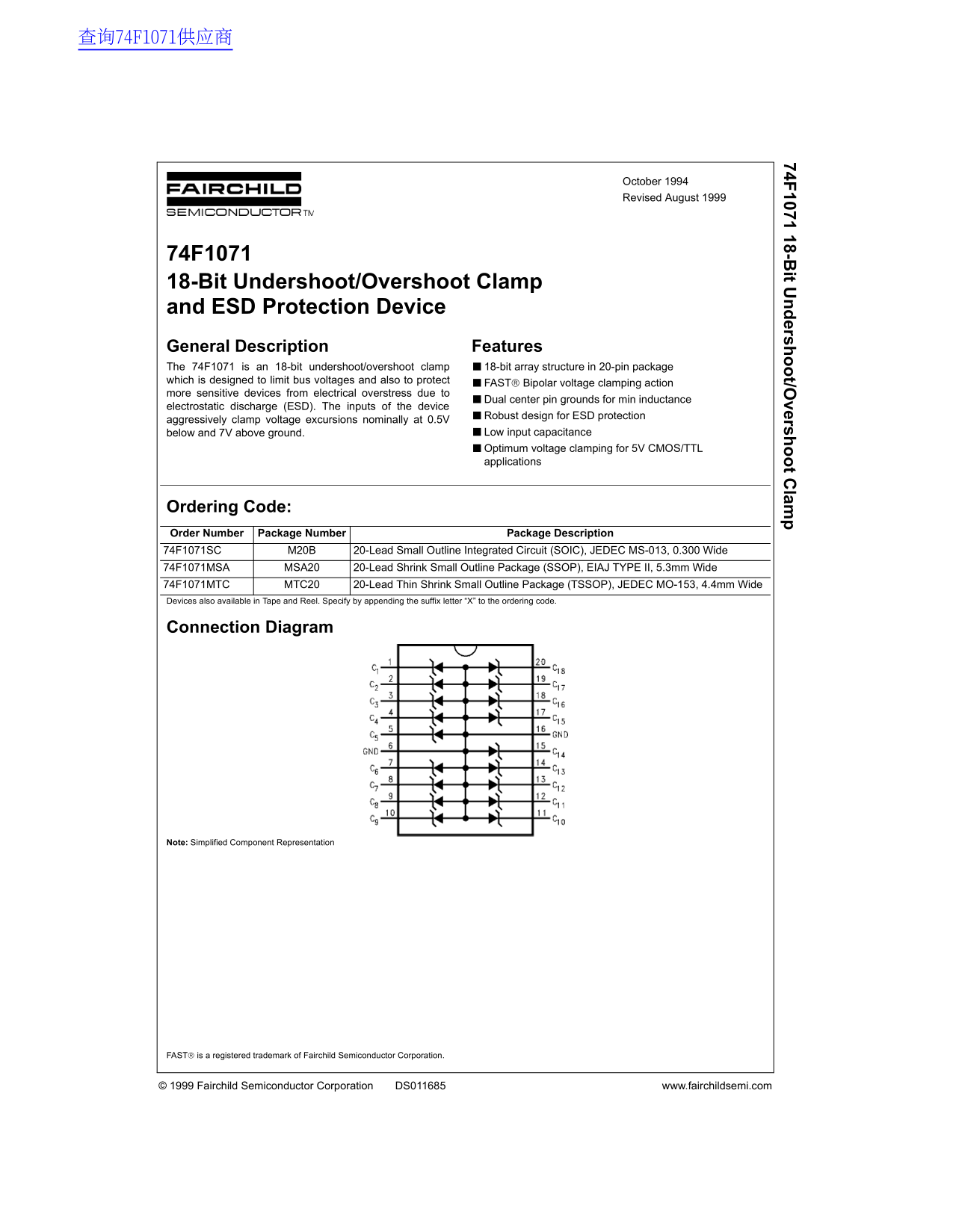

Page 1 Text Content
74F 1071 18-B it U ersh t/O versh t C lam
October 1994 Revised August 1999
74F1071 18-Bit Undershoot/Overshoot Clamp and ESD Protection Device General Description Features The 74F1071 is an 18-bit undershoot/overshoot clamp 18-bit array structure in 20-pin package which is designed to limit bus voltages and also to protect FAST Bipolar voltage clamping action more sensitive devices from electrical overstress due to
Dual center pin grounds for min inductance
electrostatic discharge (ESD). The inputs of the device
Robust design for ESD protection
aggressively clamp voltage excursions nominally at 0.5V
below and 7V above ground. Low input capacitance Optimum voltage clamping for 5V CMOS/TTL applications
Ordering Code: Order Number Package Number Package Description 74F1071SC M20B 20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide 74F1071MSA MSA20 20-Lead Shrink Small Outline Package (SSOP), EIAJ TYPE II, 5.3mm Wide 74F1071MTC MTC20 20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Note: Simplified Component Representation
FAST is a registered trademark of Fairchild Semiconductor Corporation.
© 1999 Fairchild Semiconductor Corporation DS011685 www.fairchildsemi.com
