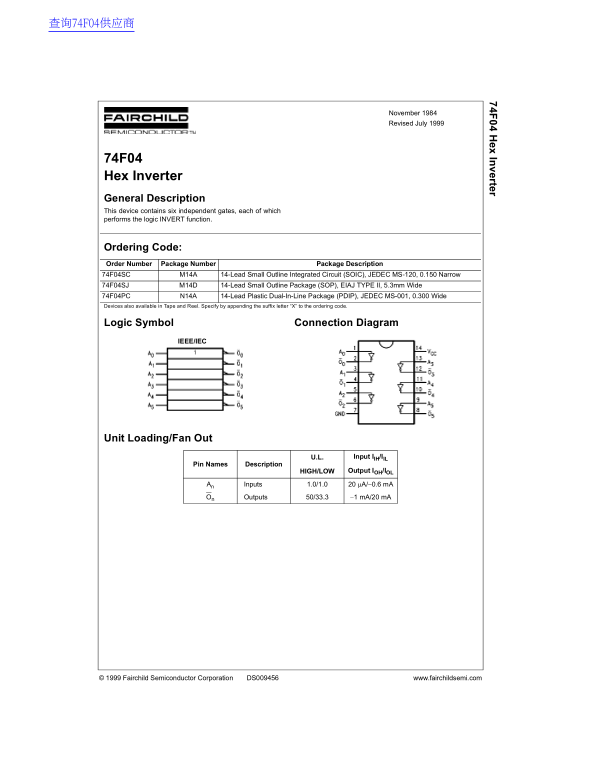

Page 1 Text Content
74F 04 H ex In verter
November 1984 Revised July 1999
74F04 Hex Inverter General Description This device contains six independent gates, each of which performs the logic INVERT function.
Ordering Code: Order Number Package Number Package Description 74F04SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow 74F04SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74F04PC N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Symbol Connection Diagram
IEEE/IEC
Unit Loading/Fan Out
U.L. Input IIH/IIL
Pin Names Description
HIGH/LOW Output IOH/IOL
An Inputs 1.0/1.0 20 µA/−0.6 m A
On Outputs 50/33.3 −1 m A/20 m A
© 1999 Fairchild Semiconductor Corporation DS009456 www.fairchildsemi.com
