This integrated circuit is a reliable Quad 2-Input AND Gate, designed for high performance in digital logic circuits. Utilizing Quiet Series™ technology, it guarantees superior switching noise immunity and improved dynamic threshold behavior for engineers needing robust signal integrity. The accompanying manual provides comprehensive technical specifications, including detailed electrical characteristics, absolute maximum ratings, safe operating limits, and various package options (SOIC/SOP). This component is ideal for electronics designers building reliable, low-noise digital systems that require precision AND gate functionality.

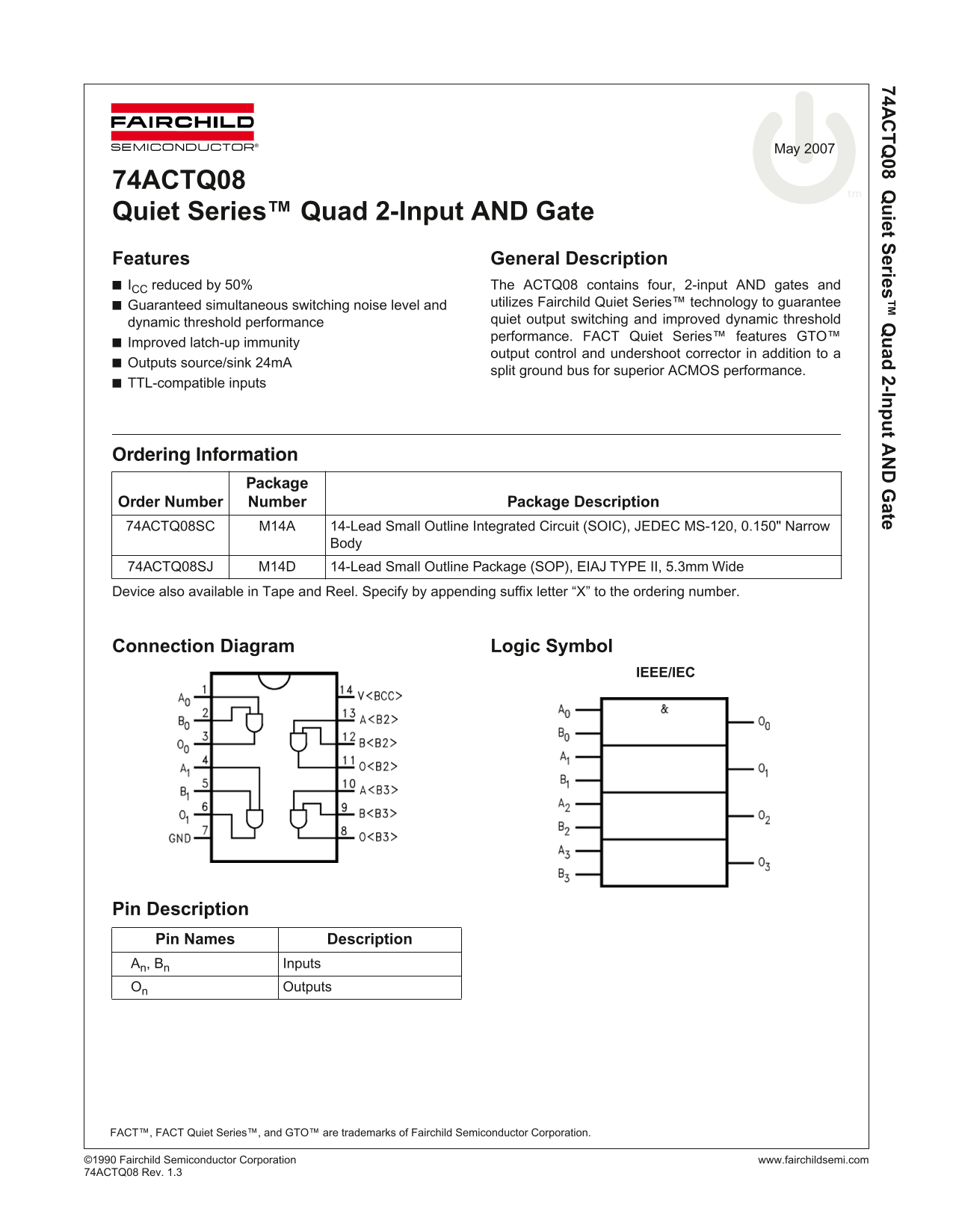

Page 1 Text Content
74A 08 Q iet S eries™ ad 2-In t A ate
May 2007
74ACTQ08
Quiet Series™ Quad 2-Input AND Gate Features General Description reduced by 50% The ACTQ08 contains four, 2-input AND gates and CC
Guaranteed simultaneous switching noise level and utilizes Fairchild Quiet Series™ technology to guarantee dynamic threshold performance quiet output switching and improved dynamic threshold performance. FACT Quiet Series™ features GTO™
Improved latch-up immunity
output control and undershoot corrector in addition to a
Outputs source/sink 24m A
split ground bus for superior ACMOS performance.
TTL-compatible inputs
Ordering Information
Package
Order Number Number Package Description 74ACTQ08SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150" Narrow
74ACTQ08SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.
Connection Diagram Logic Symbol
IEEE/IEC
Pin Description Pin Names Description , B Inputs
Outputs
FACT™, FACT Quiet Series™, and GTO™ are trademarks of Fairchild Semiconductor Corporation.
©1990 Fairchild Semiconductor Corporation www.fairchildsemi.com 74ACTQ08 Rev. 1.3
Page Summary Contents For Fairchild 74ACTQ08 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 8 |
| File Size | 215.88 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operational voltage for this gate?
The recommended operating supply voltage range is 4.5V to 5.5V.
Does this product minimize switching noise?
Yes, it uses Quiet Series™ technology which guarantees simultaneous switching noise level and improves dynamic threshold performance.
Are there packaging options besides SOIC or SOP?
The device is also available in Tape and Reel format; append the suffix letter “X” to the ordering number to specify this.
Should I base my design on Absolute Maximum Ratings?
No. The datasheet recommends using the specific Recommended Operating Conditions table, as stressing parts to absolute maximum levels is not recommended.
