FAIRCHILD 74AC151 • 74ACT151 8-Channel Multiplexer Data Sheet
Summary
Optimize your digital circuits using this high-speed 8-input multiplexer (MUX). This component is engineered to efficiently select one data line from up to eight multiple sources or to act as a universal function generator for complex four-variable logic. The accompanying technical documentation provides comprehensive resources essential for hardware engineers and circuit designers, including detailed electrical specifications, full truth tables, absolute maximum ratings, and various professional packaging options (SOIC, TSSOP, PDIP) necessary for reliable system integration.
Page 1 Text Content
查询74AC151MTC供应商
74A 151 • 74A 151 8-In t M ltip lexer
November 1988 Revised November 1999

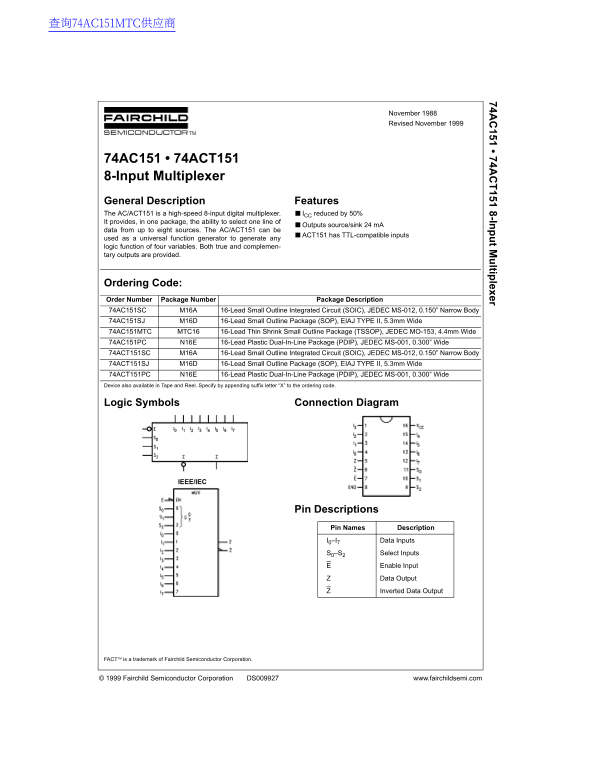

74AC151 • 74ACT151 8-Input Multiplexer General Description Features The AC/ACT151 is a high-speed 8-input digital multiplexer. ICC reduced by 50% It provides, in one package, the ability to select one line of
■Outputs source/sink 24 m A
data from up to eight sources. The AC/ACT151 can be
■ACT151 has TTL-compatible inputs
used as a universal function generator to generate any logic function of four variables. Both true and complemen- tary outputs are provided.
Ordering Code: Order Number Package Number Package Description 74AC151SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body 74AC151SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74AC151MTC MTC16 16-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide 74AC151PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide 74ACT151SC M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow Body 74ACT151SJ M16D 16-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74ACT151PC N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.
Logic Symbols Connection Diagram
IEEE/IEC
Pin Descriptions Pin Names Description
I0–I7 Data Inputs
S0–S2 Select Inputs
Enable Input
Data Output
Inverted Data Output
