This integrated circuit features six high-performance inverter gates, each equipped with a robust Schmitt Trigger input for converting slow or noisy signals into sharp digital pulses. These components provide TTL-compatible, jitter-free outputs and superior noise immunity, making them ideal for critical signal condition tasks. The accompanying manual offers detailed electrical specifications, operating limits, connection diagrams, and various package options (SOIC/SOP/TSSOP) for engineers designing reliable and robust electronic logic circuits.

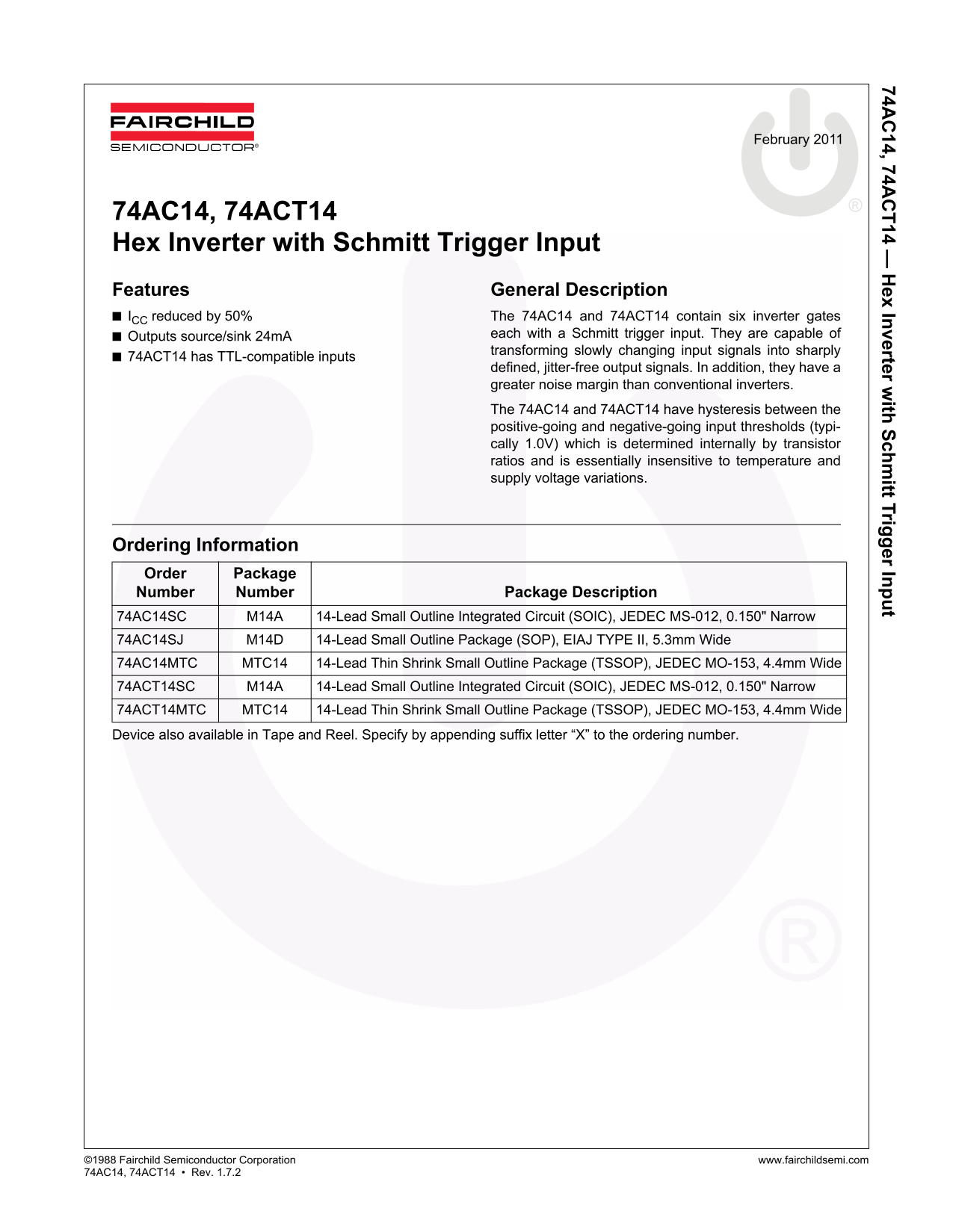

Page 1 Text Content
74A 14, 74A 14 — ex In verter w ith ch itt Trig er In
February 2011
74AC14, 74ACT14 Hex Inverter with Schmitt Trigger Input Features General Description ICC reduced by 50% The 74AC14 and 74ACT14 contain six inverter gates
Outputs source/sink 24m A each with a Schmitt trigger input. They are capable of transforming slowly changing input signals into sharply
74ACT14 has TTL-compatible inputs
defined, jitter-free output signals. In addition, they have a greater noise margin than conventional inverters. The 74AC14 and 74ACT14 have hysteresis between the positive-going and negative-going input thresholds (typi- cally 1.0V) which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
Ordering Information Order Package Number Number Package Description 74AC14SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow 74AC14SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide 74AC14MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide 74ACT14SC M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow 74ACT14MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.
©1988 Fairchild Semiconductor Corporation www.fairchildsemi.com 74AC14, 74ACT14 • Rev. 1.7.2
Page Summary Contents For Fairchild 74AC04 74ACT04 Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 246.21 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum operating temperature range for these inverters?
The recommended operating temperature range is -40°C to +85°C.
How does the Schmitt Trigger input improve operation?
It provides hysteresis (typically 1.0V) between positive-going and negative-going thresholds, making it insensitive to temperature and supply voltage variations.
What is the difference in power compatibility between 74AC14 and 74ACT14?
The 74ACT14 has TTL-compatible inputs and greater noise margin than conventional inverters.
Is there an available package for mounting or breadboarding this chip?
It is available in various packages including SOIC (Small Outline), SOP, and TSSOP.
