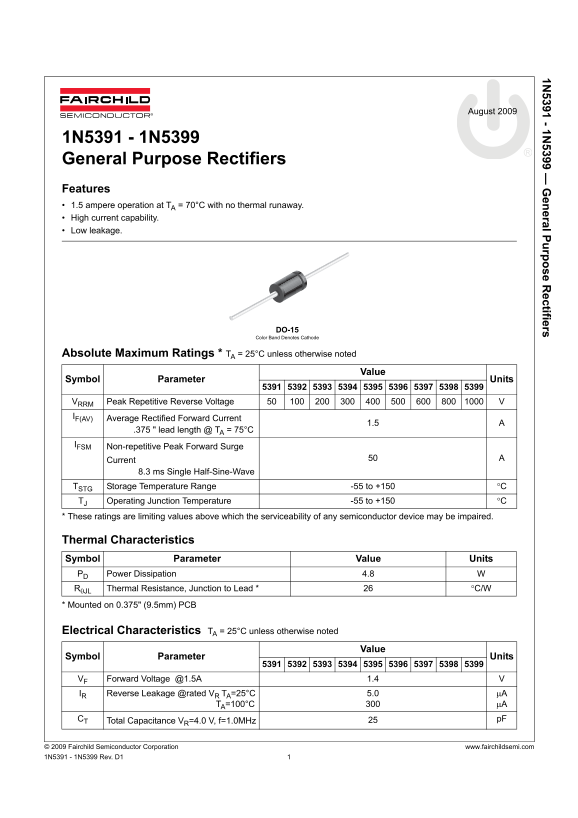

1N 5391 - 1N 5399 — eneral Purpose R ectifiers
August 2009
1N5391 - 1N5399 General Purpose Rectifiers Features 1.5 ampere operation at TA = 70°C with no thermal runaway. High current capability. Low leakage.
DO-15 Color Band Denotes Cathode
Absolute Maximum Ratings * TA = 25°C unless otherwise noted
Value
Symbol Parameter Units
VRRM Peak Repetitive Reverse Voltage IF(AV) Average Rectified Forward Current
.375 " lead length @ TA = 75°C IFSM Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave TSTG Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature -55 to +150 °C
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 4.8
RθJL Thermal Resistance, Junction to Lead * °C/W
* Mounted on 0.375" (9.5mm) PCB
Electrical Characteristics TA = 25°C unless otherwise noted
Value
Symbol Parameter Units
VF Forward Voltage @1.5A 1.4
IR Reverse Leakage @rated VR TA=25°C 5.0 μA
TA=100°C μA
CT Total Capacitance VR=4.0 V, f=1.0MHz p F
© 2009 Fairchild Semiconductor Corporation www.fairchildsemi.com 1N5391 - 1N5399 Rev. D1
