EXTECH INSTRUMENTS 380193 Passive Component LCR Meter Owner's Manual

Summary

This comprehensive guide accompanies the Extech Model 380193 LCR Meter, an advanced instrument for accurately testing capacitance (C), inductance (L), and resistance (R). Designed for electronics technicians and professionals, it utilizes dual displays and supports measurements at precise frequencies (120Hz and 1kHz) while also providing full data logging via RS-232c PC interface. The manual offers crucial instructions on safe operation, ranging modes, series/parallel circuit selection, and best practices to ensure reliable, repeatable component analysis.

📄 Preview ‹ PAGE OF 10 ›

‹

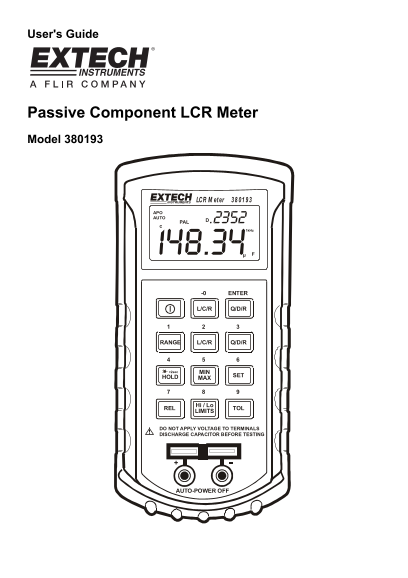

EXTECH INSTRUMENTS 380193 Passive Component LCR Meter Owner's Manual - Page 1

›

Page 1 Text Content

User's Guide

Passive Component LCR Meter Model 380193

LCR M et er

APO AUTO

1k Hz

-0 ENTER

RANGE L/C/R Q/D/R

>2sec MIN

HOLD SET

Hi / Lo

REL TOL

LIMITS

DO NOT APPLY VOLTAGE TO TERMINALS DISCHARGE CAPACITOR BEFORE TESTING

AUTO-POWER OFF

Page Summary Contents For EXTECH INSTRUMENTS 380193 Passive Component LCR Meter Owner's Manual

Page 1 User's Guide Passive Component LCR Meter Model 380193 LCR M et er APO AUTO 1k Hz -0 ENTER RANGE L/C/R Q/D/R >2sec MIN HOLD SET Hi / Lo REL TOL LIMITS DO NOT APPLY VOLTAGE TO TERMINALS DISCHARGE CAP...

Page 2 INTRODUCTION Congratulations on your purchase of Extech's Model 380193 LCR meter. This meter will accurately measure capacitors, inductors and resistors using the test frequencies of 120Hz and 1 k Hz....

Page 3 METER DESCRIPTION 1. Q/D/R display 2. L/C/R display LCR M et r 3 APO AU TO 3. Keypad 1k Hz 4. Test fixture -0 ENTER 5. Input jacks L/C/R Q/D/R 6. External power input RANGE L/C/R Q/D/R >2sec MIN SE...

Page 4 OPERATING INSTRUCTIONS CAUTION: Measuring a DUT (device under test) in a live circuit will produce false readings and may damage the meter. Always remove power and isolate the component from the circu...

Page 5 Inductance, Capacitance, Resistance Selection The L/C/R key selects the primary parameter measurement function. Each press of the key will select either inductance (L), capacitance (C) or resistance (...

Page 6 Hi / Lo Limits Mode The Hi / Lo limits mode compares the measured value to the stored high and low limit values and gives an audible and visible indication if the measured value is outside the limits....

Page 7 Setting Absolute Hi/Lo Limits The Hi/Lo limits set allows the user to enter an upper and lower limit value into memory for comparison to the measured value. 1. Press the SET key and then the Hi / Lo L...

Page 8 PC INTERFACE The Model 380193 LCR Meter includes a PC interface feature for use with the supplied Windows TM software. The interface allows the user to: View measurement data in real time on the PC Sa...

Page 9 SPECIFICATIONS Capacitance @ 120Hz Range Cx accuracy DF accuracy Note 9.999m F ±(5.0% rdg + 5d) ±(10%rdg + 100/Cx + 5d) after short cal (DF<0.1) (DF<0.1) 1999.9μF ±(1.0% rdg + 5d) ±(2%rdg + 100/...

Page 10 Resistance Range accuracy (1k Hz & 120Hz) Note 10.000MΩ ±(2.0%rdg + 8d) after open cal* 1.9999MΩ ±(0.5%rdg + 5d) after open cal* 199.99kΩ ±(0.5%rdg + 3d) 19.999kΩ ±(0.5%rdg + 3d) 1.9999kΩ ±(0.5%rd...

Manual Details

Brand	Extech Instruments
Pages	10
File Size	211.58 KB
Published	May 19, 2026

83 views

Enter the captcha to get the download link:

Frequently Asked Questions

How should I prepare a circuit before taking a measurement with this meter?

Always remove power from the device under test and ensure you discharge capacitors before testing to obtain accurate readings.

When should I choose between Parallel (PAL) and Series (SER) mode?

Use parallel mode for measuring high impedances, while series mode is generally used for low impedances.

Which test frequency is best suited for different components?

Generally, use 120Hz for large electrolytic capacitors and 1kHz for most other types of measurements.

Does this meter support data recording to a computer?

Yes, it features an RS-232c PC interface that allows you to capture readings for storage and exporting.
