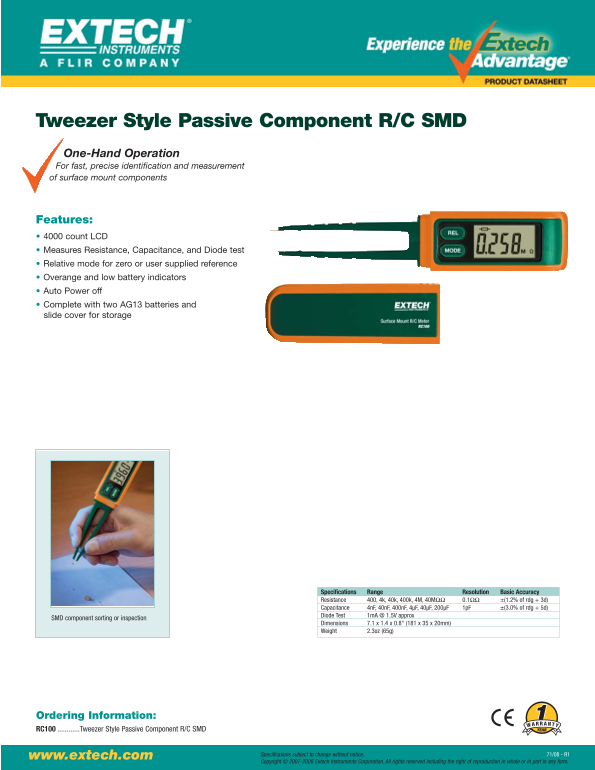

EXTECH INSTRUMENTS Tweezer Style Passive Component R/C/SMD Product Data Sheet
Summary
This professional SMD component tester is designed for accurate, fast identification and measurement of passive surface mount components. It precisely measures resistance (Ω), capacitance (pF to μF), and diode characteristics using a clear LCD display. The accompanying manual details setup, operation modes (including relative function), comprehensive technical specs across various ranges (up to 40MΩ and 200μF), and automated features like low battery alerts. Ideal for electronics technicians, quality control inspectors, and engineers performing circuit board assembly or component sorting.
Page 1 Text Content
Tweezer Style Passive Component R/C SMD One-Hand Operation For fast, precise identification and measurement of surface mount components
Features: 4000 count LCD Measures Resistance, Capacitance, and Diode test Relative mode for zero or user supplied reference Overange and low battery indicators Auto Power off Complete with two AG13 batteries and slide cover for storage
Specifications Range Resolution Basic Accuracy Resistance 400, 4k, 40k, 400k, 4M, 40MΩΩ 0.1ΩΩ ±(1.2% of rdg + 3d) Capacitance 4n F, 40n F, 400n F, 4μF, 40μF, 200μF 1p F ±(3.0% of rdg + 5d) Diode Test 1m A @ 1.5V approx
SMD component sorting or inspection
Dimensions 7.1 x 1.4 x 0.8" (181 x 35 x 20mm) Weight 2.3oz (65g)
Ordering Information: RC100 ............Tweezer Style Passive Component R/C SMD
www.extech.com Specifications subject to change without notice. 71/08 - R1 Copyright © 2007-2008 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
