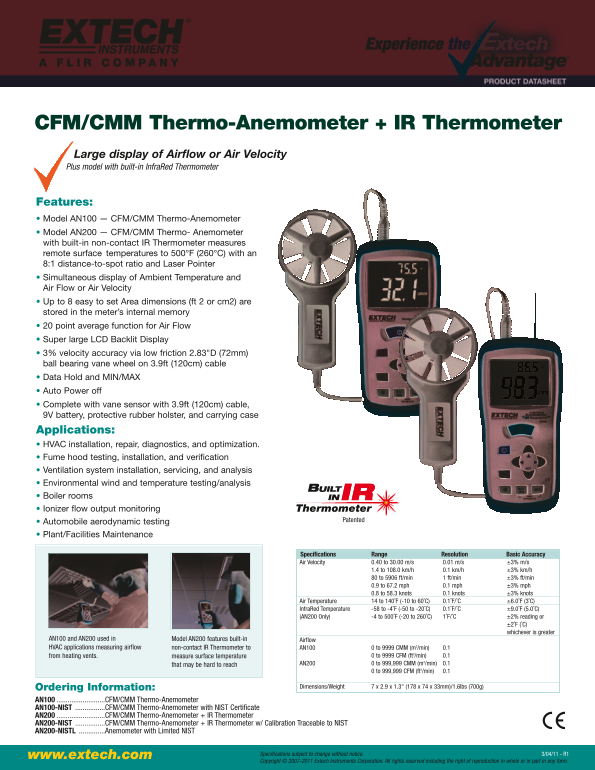

EXTECH CFM CMM Thermo-Anemometer + IR Thermometer AN100 User Manual Data Handbook

CFM/CMM Thermo-Anemometer IR Thermometer Large display of Airflow or Air Velocity Plus model with built-in Infra Red Thermometer

Features: Model AN100 CFM/CMM Thermo-Anemometer Model AN200 CFM/CMM Thermo- Anemometer with built-in non-contact IR Thermometer measures remote surface temperatures to 500°F (260°C) with an 8:1 distance-to-spot ratio and Laser Pointer Simultaneous display of Ambient Temperature and Air Flow or Air Velocity Up to easy to set Area dimensions (ft or cm2) are stored in the meter’s internal memory point average function for Air Flow Super large LCD Backlit Display 3% velocity accuracy via low friction 2.83"D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable Data Hold and MIN/MAX Auto Power off Complete with vane sensor with 3.9ft (120cm) cable, 9V battery, protective rubber holster, and carrying case Applications: HVAC installation, repair, diagnostics, and optimization. Fume hood testing, installation, and verification Ventilation system installation, servicing, and analysis Environmental wind and temperature testing/analysis Boiler rooms Ionizer flow output monitoring

Patented

Automobile aerodynamic testing Plant/Facilities Maintenance

Specifications Range Resolution Basic Accuracy Air Velocity 0.40 to 30.00 m/s 0.01 m/s ±3% m/s

1.4 to 108.0 km/h 0.1 km/h ±3% km/h to ft/min ft/min ±3% ft/min 0.9 to 67.2 mph 0.1 mph ±3% mph 0.8 to 58.3 knots 0.1 knots ±3% knots

Air Temperature to 140˚F (-10 to 60˚C) 0.1˚F/˚C ±6.0˚F (3˚C) Infra Red Temperature -58 to -4˚F (-50 to -20˚C) 0.1˚F/˚C ±9.0˚F (5.0˚C) (AN200 Only) -4 to 500˚F (-20 to 260˚C) 1˚F/˚C ±2% reading or

±2˚F (˚C) whichever is greater

AN100 and AN200 used in Model AN200 features built-in Airflow HVAC applications measuring airflow non-contact IR Thermometer to AN100 to CMM (m3/min) 0.1

from heating vents. measure surface temperature to CFM (ft3/min) 0.1 that may be hard to reach AN200 to 999,999 CMM (m3/min) 0.1 to 999,999 CFM (ft3/min) 0.1

Ordering Information: Dimensions/Weight 2.9 1.3" (178 33mm)/1.6lbs (700g)

AN100 ..........................CFM/CMM Thermo-Anemometer AN100-NIST ................CFM/CMM Thermo-Anemometer with NIST Certificate AN200 ..........................CFM/CMM Thermo-Anemometer IR Thermometer AN200-NIST ................CFM/CMM Thermo-Anemometer IR Thermometer w/ Calibration Traceable to NIST AN200-NISTL ..............Anemometer with Limited NIST

www.extech.com Specifications subject to change without notice. 3/04/11 R1 Copyright 2007-2011 Extech Instruments Corporation. All rights reserved including the of reproduction in whole or in part in any form.
