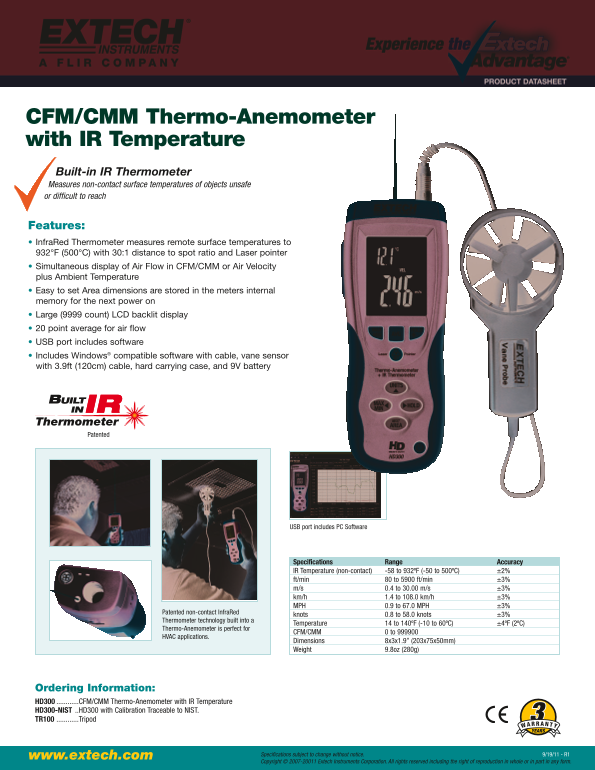

CFM/CMM Thermo-Anemometer with IR Temperature Built-in IR Thermometer Measures non-contact surface temperatures of objects unsafe or difficult to reach
Features: Infra Red Thermometer measures remote surface temperatures to 932°F (500°C) with 30:1 distance to spot ratio and Laser pointer Simultaneous display of Air Flow in CFM/CMM or Air Velocity plus Ambient Temperature Easy to set Area dimensions are stored in the meters internal memory for the next power on Large (9999 count) LCD backlit display point average for air flow USB port includes software Includes Windows® compatible software with cable, vane sensor with 3.9ft (120cm) cable, hard carrying case, and 9V battery
Patented
USB port includes PC Software
Specifications Range Accuracy IR Temperature (non-contact) -58 to 932ºF (-50 to 500ºC) ±2% ft/min to ft/min ±3% m/s 0.4 to 30.00 m/s ±3% km/h 1.4 to 108.0 km/h ±3% MPH 0.9 to 67.0 MPH ±3%
Patented non-contact Infra Red
knots 0.8 to 58.0 knots ±3%
Thermometer technology built into
Temperature to 140ºF (-10 to 60ºC) ±4ºF (2ºC)
Thermo-Anemometer is perfect for
CFM/CMM to
HVAC applications.
Dimensions 8x3x1.9” (203x75x50mm) Weight 9.8oz (280g)
Ordering Information: HD300 ............CFM/CMM Thermo-Anemometer with IR Temperature HD300-NIST ..HD300 with Calibration Traceable to NIST. TR100 ............Tripod
www.extech.com Specifications subject to change without notice. 9/19/11 R1 Copyright 2007-20011 Extech Instruments Corporation. All rights reserved including the of reproduction in whole or in part in any form.
