EXTECH Heavy Duty CFM Metal Vane Anemometer 407113 Data Sheet
Summary
This heavy-duty metal vane anemometer is a professional tool designed for measuring airflow (CFM), air velocity, and temperature simultaneously across diverse environmental conditions. Manual details cover advanced functions like multi-mode measurement (instantaneous, average, etc.), MIN/MAX recording, data logging capabilities via RS-232 interface, and high accuracy in various units (MPH, m/s, knots). Ideal for HVAC technicians, air quality specialists, and industrial professionals who require reliable, accurate readings in demanding settings.

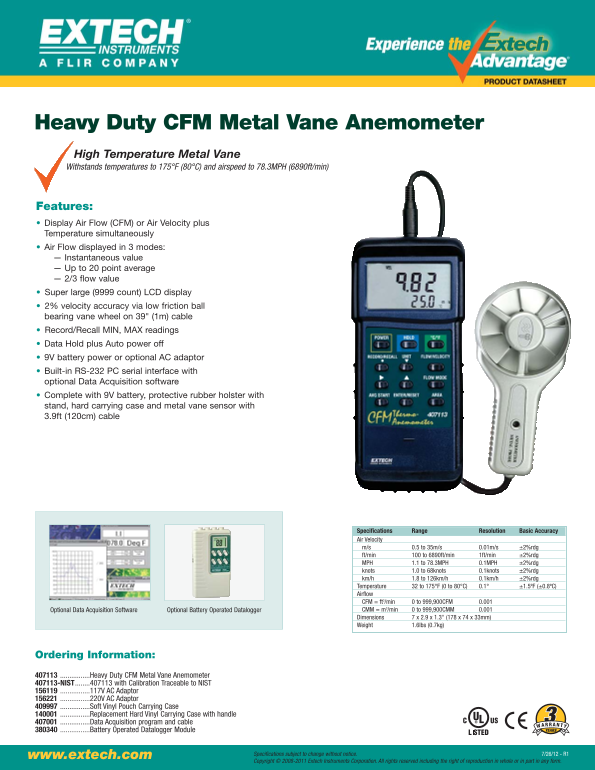

Page 1 Text Content
Heavy Duty CFM Metal Vane Anemometer High Temperature Metal Vane Withstands temperatures to 175°F (80°C) and airspeed to 78.3MPH (6890ft/min)
Features: Display Air Flow (CFM) or Air Velocity plus Temperature simultaneously Air Flow displayed in 3 modes: — Instantaneous value — Up to 20 point average — 2/3 flow value Super large (9999 count) LCD display 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable Record/Recall MIN, MAX readings Data Hold plus Auto power off 9V battery power or optional AC adaptor Built-in RS-232 PC serial interface with optional Data Acquisition software Complete with 9V battery, protective rubber holster with stand, hard carrying case and metal vane sensor with 3.9ft (120cm) cable
Specifications Range Resolution Basic Accuracy Air Velocity m/s 0.5 to 35m/s 0.01m/s ±2%rdg ft/min 100 to 6890ft/min 1ft/min ±2%rdg MPH 1.1 to 78.3MPH 0.1MPH ±2%rdg knots 1.0 to 68knots 0.1knots ±2%rdg km/h 1.8 to 126km/h 0.1km/h ±2%rdg Temperature 32 to 175°F (0 to 80°C) 0.1° ±1.5ºF (±0.8ºC) Airflow CFM = ft3/min 0 to 999,900CFM 0.001 Optional Data Acquisition Software Optional Battery Operated Datalogger CMM = m3/min 0 to 999,900CMM 0.001 Dimensions 7 x 2.9 x 1.3" (178 x 74 x 33mm) Weight 1.6lbs (0.7kg)
Ordering Information: ................Heavy Duty CFM Metal Vane Anemometer 407113-NIST........407113 with Calibration Traceable to NIST ................117V AC Adaptor ................220V AC Adaptor ................Soft Vinyl Pouch Carrying Case ................Replacement Hard Vinyl Carrying Case with handle ................Data Acquisition program and cable ................Battery Operated Datalogger Module
www.extech.com Specifications subject to change without notice. 7/26/12 - R1 Copyright © 2008-2011 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
Page Summary Contents For EXTECH Heavy Duty CFM Metal Vane Anemometer 407113 Data Sheet
Manual Details
| Brand | CFM |
|---|---|
| Pages | 1 |
| File Size | 232.37 KB |
| Published | May 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What temperatures and airspeeds can this anemometer handle?
It withstands temperatures up to 175°F (80°C) and speeds up to 78.3MPH (6890ft/min).
How can I power the device?
It can operate using a 9V battery or an optional AC adaptor.
What data logging features are available?
Features include Record/Recall MIN, MAX readings, Data Hold, Auto power off, and an optional Battery Operated Datalogger.
