EverFocus EPTZ-PBOX User's Manual

Summary

The EPTZ-PBOX is a robust, vandal-proof conjunction power box engineered for connecting speed domes and outdoor cameras in demanding environments (IP66 rated). This manual serves as your comprehensive guide to proper installation, operation, and troubleshooting. It covers mounting options (wall, pole, corner), detailed hardware specifications, and advanced functions, including optional analog-to-network video conversion. Essential for security system integrators and technicians building reliable surveillance infrastructure.

📄 Preview ‹ PAGE OF 10 ›

‹

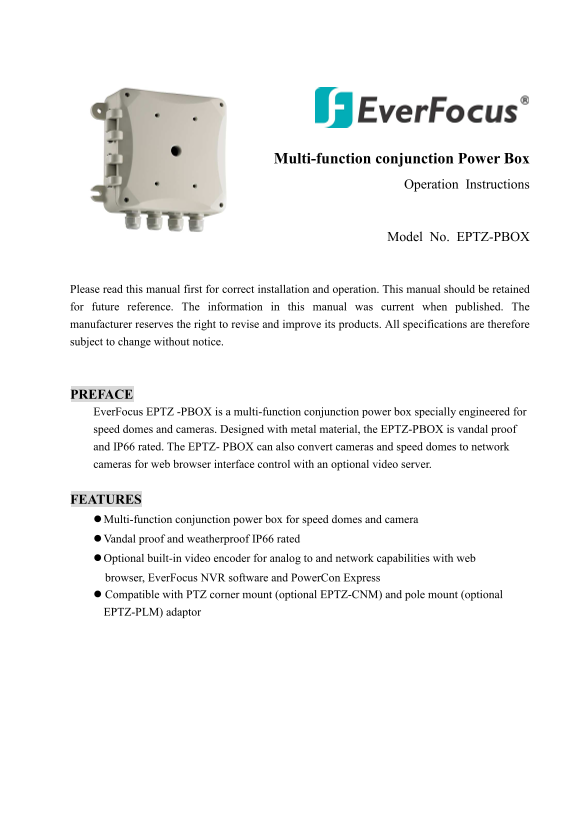

EverFocus EPTZ-PBOX User's Manual - Page 1

›

Page 1 Text Content

Multi-function conjunction Power Box

Operation Instructions

Model No. EPTZ-PBOX

Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.

PREFACE Ever Focus EPTZ -PBOX is a multi-function conjunction power box specially engineered for speed domes and cameras. Designed with metal material, the EPTZ-PBOX is vandal proof and IP66 rated. The EPTZ- PBOX can also convert cameras and speed domes to network cameras for web browser interface control with an optional video server.

FEATURES Multi-function conjunction power box for speed domes and camera Vandal proof and weatherproof IP66 rated Optional built-in video encoder for analog to and network capabilities with web browser, Ever Focus NVR software and Power Con Express Compatible with PTZ corner mount (optional EPTZ-CNM) and pole mount (optional EPTZ-PLM) adaptor

Page Summary Contents For EverFocus EPTZ-PBOX User's Manual

Page 1 Multi-function conjunction Power Box Operation Instructions Model No. EPTZ-PBOX Please read this manual first for correct installation and operation. This manual should be retained for future referenc...

Page 2 SPECIFICATIONS Model EPTZ-PBOX Power source 2 types: 100V~120VAC / 220V~240VAC Power output 24VAC/3.5A Waterproof connector ψ10 mm x 1 pcs , ψ7 mm x 3 pcs Safety CE/FCC/LVD Dimensions 250 mm x 260 mm ...

Page 3 3. EPTZ-PBM 4. Adaptor P/N: AP12D501A1 (For 1CH Video Server) 5. One Channel Video Server EVS100- Covert Analogue to IP. Suggest to use with PTZ when you need to view PTZ remotely.

Page 4 HARDWARE OVERVIEW 1. Power Output 24VAC for PTZ 2. Fixing Panel for optional video server 3. Fuse 4. Terminal block 1 5. Terminal block 2 10. Power Output for 7. Power On/Off Switch optional video ser...

Page 5 1. Power Output 24VAC for PTZ Power specification is 24VAC/3.5A, used by speed dome or camera. 2. Fixing panel for optional video server This fixing panel is used to fix video server and cables, when ...

Page 6 then connect to power source. When switching to 115, all applicable voltages are: 100VAC / 110VAC / 120V AC. When switching to 230, all applicable voltages are: 220VAC / 230VAC / 240VAC Note: When swi...

Page 7 INSTALLATION Wall Mount Wall mount bracket EPTZ-PBOX 1. Screw the bracket to PBOX with 4 screws. 2. Screw the PBOX to the wall with 4 screws.

Page 8 Corner Mount EPTZ-CNM EPTZ-PBM EPTZ-PBOX center 1. Screw the EPTZ-CNM (front part) to EPTZ-PBM (center part) with 4 screws. 2. Screw EPTZ-CNM (side parts) + EPTZ-PBM to corner of the wall first with 4...

Page 9 Pole Mount EPTZ-PLM EPTZ-PBM EPTZ-PBOX center 1. Screw the EPTZ-PLM to EPTZ-PBM (center part) with 4 screws. 2. Tighten the loops of EPTZ-PLM + EPTZ-PBM to the pole first. 3. Screw EPTZ-PBOX to EPTZ-P...

Page 10 Ever Focus Electronics Corp. Head Office: Europe Office: 12F, No.79 Sec. 1 Shin-Tai Wu Road, Albert-Einstein-Strasse 1 Hsi-Chih, Taipei, Taiwan D-46446 Emmerich, Germany TEL: +886-2-26982334 TEL: 49-2...

Manual Details

Brand	EverFocus
Pages	10
File Size	444.61 KB
Published	May 19, 2026

88 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the standard power output of the EPTZ-PBOX?

The power specification for PTZ is 24VAC/3.5A.

How can I control the speed domes remotely?

You should use a video server (like EVS100) with an optional video server to view PTZ remotely.

Can this box be installed in corner or pole placements?

Yes, it supports optional Corner Mount (EPTZ-CNM/PBM) and Pole Mount (EPTZ-PLM) adaptors.

How do I protect the main power connection?

A fuse with a specification of 250V/2A is used to protect the main power. Replace it with one having the same specifications if damaged.
