EverFocus Electronics Corp EHA-FTX_ Manual - 4605X1EHAF001AR_ Ver. A
Summary
The EHA-FTX/FRX is a specialized converter pair designed to reliably transmit high-definition digital video signals (HD-SDI) over long distances using fiber optic cables. Supporting multiple resolutions and data rates, it ensures quality transmission for large-scale security, broadcasting, or CCTV installations. This manual provides comprehensive guidance on product operation, installation specifications, necessary precautions, and technical details, making it essential for system integrators and professionals deploying advanced video networks across expansive geographic areas.
Page 1 Text Content

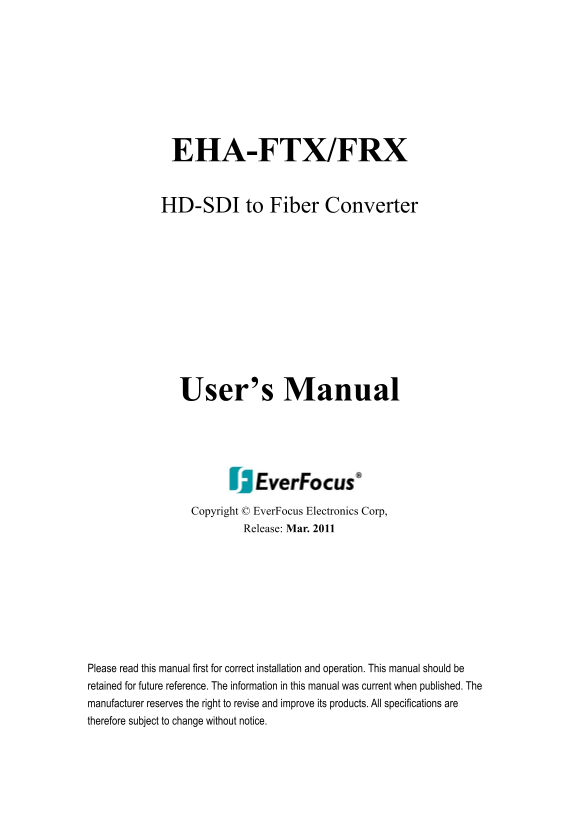

EHA-FTX/FRX HD-SDI to Fiber Converter
User’s Manual
Copyright © Ever Focus Electronics Corp,
Release: Mar. 2011
Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
Page Summary Contents For EverFocus Electronics Corp EHA-FTX_ Manual - 4605X1EHAF001AR_ Ver. A
Manual Details
| Brand | Electronics |
|---|---|
| Pages | 8 |
| File Size | 227.67 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the required power supply voltage for the EHA-FTX/FRX?
The unit requires a 12VDC power source, and operates within temperatures of 0~50℃ (32℉~122℉).
Can this converter support long distances for HD-SDI video transmission?
Yes, it features integrated cable equalizer technology capable of transmitting up to 1920 x 1080 resolution without quality loss. The maximum distance depends on the cable's attenuation characteristics and type.
Are there any specific physical precautions I must take during installation?
Do not install the unit near electric or magnetic fields, and keep the power cord away from water; wet hands can cause electric shock.
What video standards does this converter support?
It supports high-definition HD-SDI digital video at 720p60, 1080i60, and 1080p30 formats, adhering to SMPTE 292M and 296M standards.
