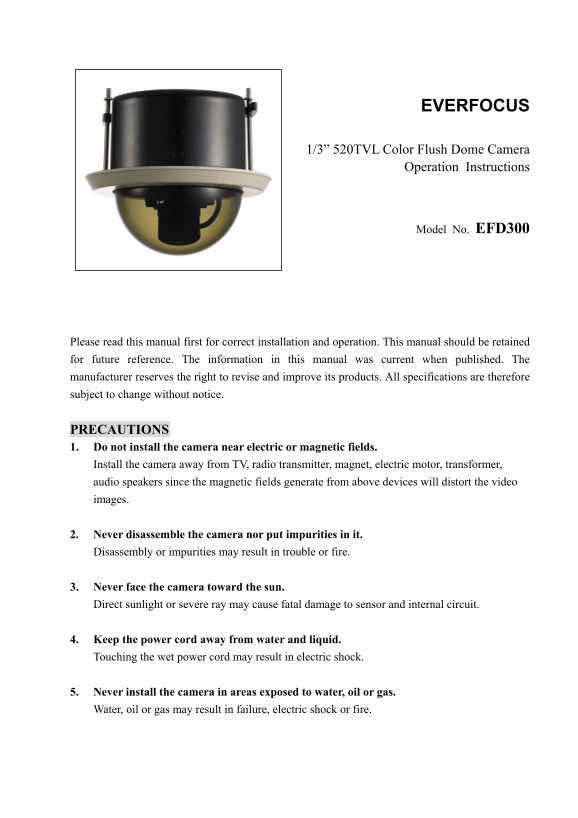

Page 1 Text Content
EVERFOCUS
1/3” 520TVL Color Flush Dome Camera
Operation Instructions
Model No. EFD300
Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
PRECAUTIONS 1. Do not install the camera near electric or magnetic fields. Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio speakers since the magnetic fields generate from above devices will distort the video images.
2. Never disassemble the camera nor put impurities in it. Disassembly or impurities may result in trouble or fire.
3. Never face the camera toward the sun. Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4. Keep the power cord away from water and liquid. Touching the wet power cord may result in electric shock.
5. Never install the camera in areas exposed to water, oil or gas. Water, oil or gas may result in failure, electric shock or fire.
Page Summary Contents For EverFocus Electronics Corp EFD300A User Guide
Manual Details
| Brand | Electronics |
|---|---|
| Pages | 10 |
| File Size | 350.38 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What should I avoid near the camera during installation?
Do not install the camera near electric or magnetic fields, such as TV, radio transmitters, or electric motors.
How do I properly clean the sensor and lens?
Use a soft cloth for the body. For the sensor/lens, use a lens tissue or cotton swab with ethanol.
Does the camera support different video formats (NTSC vs PAL)?
Yes, the system is available for both NTSC (525 TV lines) and PAL (625 TV lines).
What power sources can I use?
The input power source accepts 12VDC or 24VAC, ensuring the correct type is connected to prevent failure.
