The EHA-FTX/FRX is an essential pair of converters designed for transmitting high definition (HD-SDI) digital video signals over long distances via fiber optics. Capable of achieving up to 1920 x 1080 resolution, these units provide a reliable solution for deploying large-scale HD-CCTV systems with near zero latency and outstanding signal quality. This manual provides comprehensive guidance on installation, operation procedures, technical specifications, and critical safety precautions, making it the necessary reference guide for system integrators and professionals setting up fiber-optimized video networks.

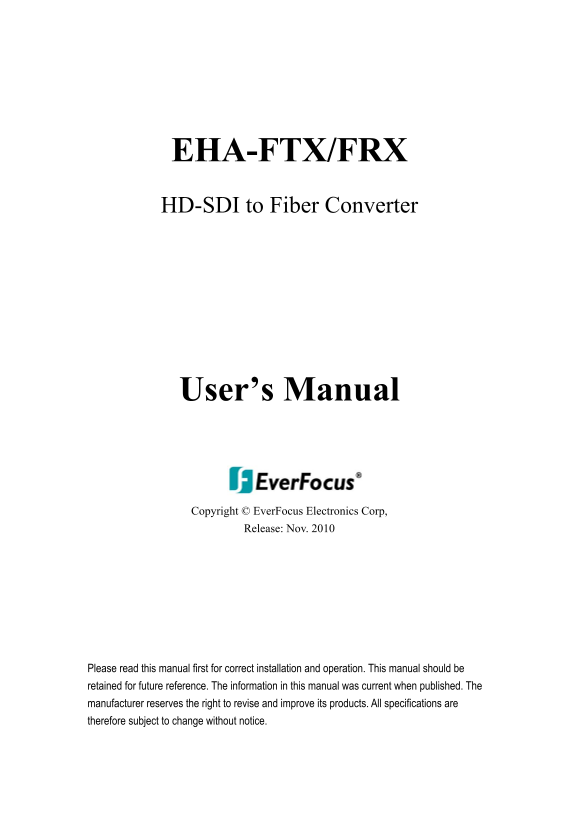

Page 1 Text Content
EHA-FTX/FRX HD-SDI to Fiber Converter
User’s Manual
Copyright © Ever Focus Electronics Corp,
Release: Nov. 2010
Please read this manual first for correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
Page Summary Contents For EverFocus Electronics Corp EHA-FTX FRX Manual
Manual Details
| Brand | Electronics |
|---|---|
| Pages | 7 |
| File Size | 287.59 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the operational temperature and humidity ranges?
Operation must occur within 0℃ ~ 50℃ (32℉~122℉) and a relative humidity of 20%~80%.
How is the HD-SDI standard handled by the converter?
It supports HD-SDI at SMPTE 292M, 296M compliance with up to 1.485Gb/s data rate.
What type of power source does the unit require?
The input power supply required is 12VDC.
Are there specific safety precautions regarding placement?
Do not install the converter near strong electric or magnetic fields, transformer, or sources of water/oil/gas.
