Epson USB Printer Setup Guide

Summary

Easily integrate your Epson USB Receipt Printer into any point-of-sale system with this complete installation guide. The manual provides detailed, step-by-step instructions for connecting the hardware, installing drivers on Windows, and configuring necessary POS software settings. Beyond basic setup, we show you exactly how to prepare and load custom logos, ensuring every receipt you print features your professional brand seal. Perfect for businesses requiring reliable, branded thermal receipt printing solutions.

📄 Preview ‹ PAGE OF 9 ›

‹

›

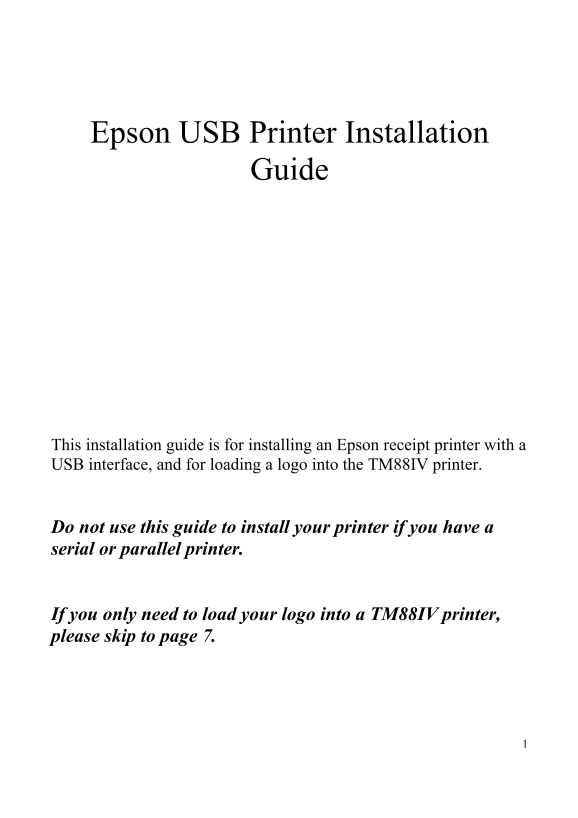

Page 1 Text Content

Epson USB Printer Installation

Guide

This installation guide is for installing an Epson receipt printer with USB interface, and for loading logo into the TM88IV printer.

Do not use this guide to install your printer if you have serial or parallel printer.

If you only need to load your logo into TM88IV printer, please skip to page 7.

Page Summary Contents For Epson USB Printer Setup Guide

Page 1 Epson USB Printer Installation Guide This installation guide is for installing an Epson receipt printer with USB interface, and for loading logo into the TM88IV printer. Do not use this guide to insta...

Page 2 DO NOT PLUG THE PRINTER INTO THE COMPUTER Installation Instructions for Windows Vista XP Step 1. Read the of this page again. Step 2. Put the TRS installation CD into the CD-ROM. The CD should Autorun...

Page 3 Step 5. Select the folder for the installation (the default location is usually best). Step 6. Now choose your Operating System and Language. Step 7. CAREFULLY select the EPSON TM-T88IV Receipt

Page 4 Step 7(continued). Click on the Printer Port Setting, c… button and put dot next to USB. Step 8. After you click Finish you will see this screen for few moments.

Page 5 Step 9. You will now be asked to restart your computer. Do Not Connect Your Printer Until The Computer Finishes Rebooting. Finishing setup for Epson USB Printer Step10. After rebooting your computer (...

Page 6 Troubleshooting FAQ Q. When turn on my printer, no lights come on. A. Check to make sure that the printer is connected to working power outlet and check the connections carefully. Q. Where do buy ink ...

Page 7 Loading Logo Into the Epson TM-T88IV Printer If you would like your store logo to print on your POS receipts, you will need to prepare your logo, load your logo into the printer, and enable logo print...

Page 8 If you have just finished installing the logo loading software (see above), and the software is already started, you can skip to step 2. 1) Unfortunately, the logo loading software does not automatica...

Page 9 you decide to make changes to the source file, or use different source file, go to the Bitmap Selection tab, click the “Remove” button, then continue with Step above. Part 5: Enabling logo printing in...

Manual Details

Brand	Epson
Pages	9
File Size	490.21 KB
Published	May 28, 2026

54 views

Enter the captcha to get the download link:

Frequently Asked Questions

What do I need to know about using paper with this thermal receipt printer?

It must use thermal paper; regular or standard paper will not work.

How do I troubleshoot a brand new printer that won't turn on?

Check the connections carefully and ensure it is connected to a working power outlet.

What image format should I use when loading a store logo?

The logo must be saved in monochrome bitmap (.BMP) format, preferably about 500 pixels wide.

After initial setup, how do I enable the printer for POS reports in TRS?

In the TRS menu, go to POS > Options, check the 'Receipt Printer Attached' box, and select the Epson model.
