The EPSON Mobilink is a compact, rugged wireless thermal printer designed for fast and reliable on-the-go label and receipt printing. Featuring long battery life, automatic paper loading, and connectivity for harsh environments, it ensures continuous operation in various commercial settings. This technical manual provides comprehensive details on setup, specifications (including print speed, width up to 60mm), usage, and maintenance of the unit, making it ideal for retail, logistics, and point-of-sale applications requiring mobile printing solutions.

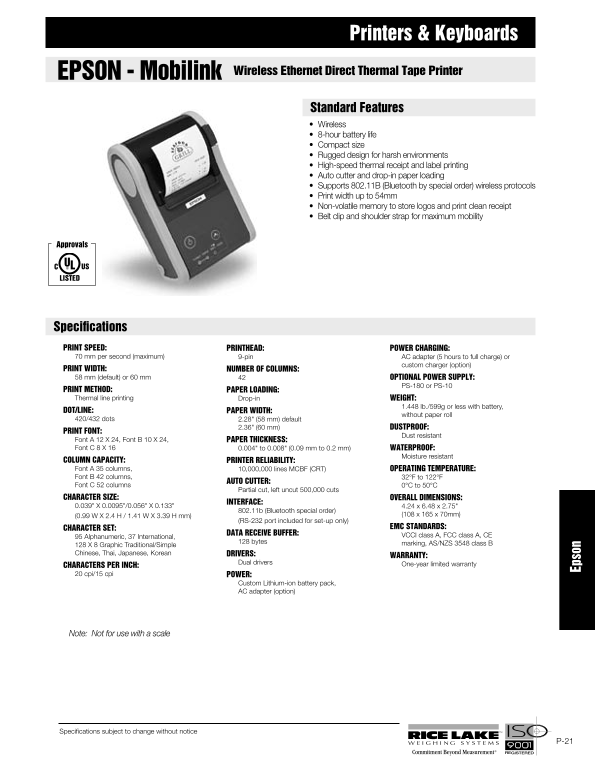

Page 1 Text Content
Printers & Keyboards
EPSON - Mobilink Wireless Ethernet Direct Thermal Tape Printer
Standard Features • Wireless • 8-hour battery life • Compact size • Rugged design for harsh environments • High-speed thermal receipt and label printing • Auto cutter and drop-in paper loading • Supports 802.11B (Bluetooth by special order) wireless protocols • Print width up to 54mm • Non-volatile memory to store logos and print clean receipt • Belt clip and shoulder strap for maximum mobility
Approvals
Specifications PRINT SPEED: PRINTHEAD: POWER CHARGING: 70 mm per second (maximum) 9-pin AC adapter (5 hours to full charge) or
custom charger (option)
PRINT WIDTH: NUMBER OF COLUMNS: 58 mm (default) or 60 mm OPTIONAL POWER SUPPLY:
PS-180 or PS-10
PRINT METHOD: PAPER LOADING: Thermal line printing Drop-in WEIGHT:
1.448 lb./599g or less with battery,
DOT/LINE: PAPER WIDTH:
without paper roll
420/432 dots 2.28" (58 mm) default
2.36" (60 mm) DUSTPROOF:
PRINT FONT:
Dust resistant
Font A 12 X 24, Font B 10 X 24, PAPER THICKNESS: Font C 8 X 16 0.004" to 0.008" (0.09 mm to 0.2 mm) WATERPROOF:
Moisture resistant
COLUMN CAPACITY: PRINTER RELIABILITY: Font A 35 columns, 10,000,000 lines MCBF (CRT) OPERATING TEMPERATURE: Font B 42 columns, 32°F to 122°F
AUTO CUTTER:
Font C 52 columns 0°C to 50°C
Partial cut, left uncut 500,000 cuts
CHARACTER SIZE: OVERALL DIMENSIONS:
INTERFACE:
802.11b (Bluetooth special order)
(0.99 W X 2.4 H / 1.41 W X 3.39 H mm) (108 x 165 x 70mm)
(RS-232 port included for set-up only)
CHARACTER SET: EMC STANDARDS:
DATA RECEIVE BUFFER: VCCI class A, FCC class A, CE
95 Alphanumeric, 37 International,
128 bytes marking, AS/NZS 3548 class B
128 X 8 Graphic Traditional/Simple Chinese, Thai, Japanese, Korean DRIVERS:
WARRANTY:
Dual drivers One-year limited warranty
CHARACTERS PER INCH: 20 cpi/15 cpi POWER:
Ep so Custom Lithium-ion battery pack, AC adapter (option)
Note: Not for use with a scale
Specifications subject to change without notice
Page Summary Contents For EPSON Printers & Keyboards User's Guide & Manual
Manual Details
| Brand | Epson |
|---|---|
| Pages | 2 |
| File Size | 147.22 KB |
| Published | May 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What port is required for initial setup of the Mobilink printer?
The device includes an RS-232 port that is designated for set-up only.
How long does the unit run on battery power?
It provides up to an 8-hour operational battery life.
What are the default print width and maximum speed?
The default print width is 2.28 inches (58 mm), supporting a maximum printing speed of 70 mm per second.
Is this printer safe for use in varying temperatures?
It operates reliably in temperatures ranging from 0°C to 50°C.
