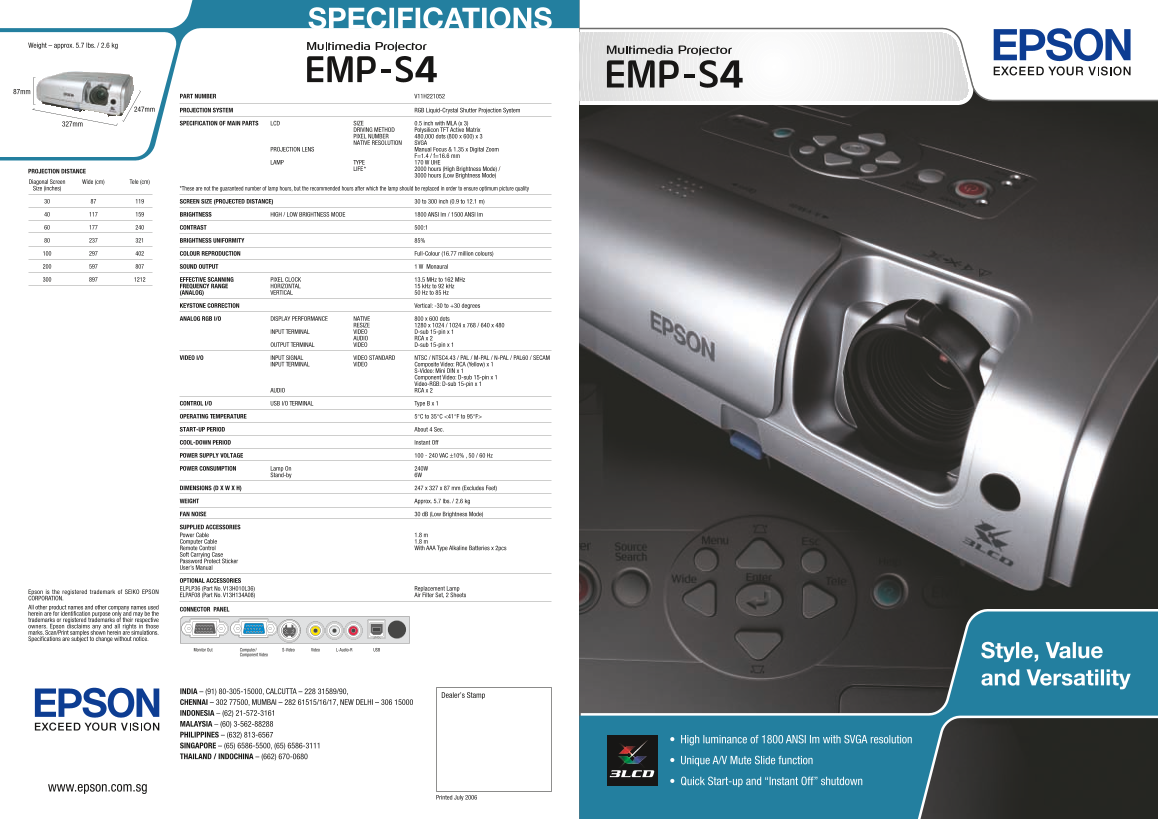

Page 1 Text Content
SPECIFICATIONS
Weight – approx. 5.7 lbs. / 2.6 kg
PART NUMBER V11H221052
247mm PROJECTION SYSTEM RGB Liquid-Crystal Shutter Projection System
327mm SPECIFICATION OF MAIN PARTS LCD SIZE 0.5 inch with MLA (x 3)
DRIVING METHOD Polysilicon TFT Active Matrix
PIXEL NUMBER 480,000 dots (800 x 600) x 3 NATIVE RESOLUTION SVGA
PROJECTION LENS Manual Focus & 1.35 x Digital Zoom
F=1.4 / f=16.6 mm
LAMP TYPE 170 W UHE
LIFE* 2000 hours (High Brightness Mode) /
PROJECTION DISTANCE
3000 hours (Low Brightness Mode)
Diagonal Screen Wide (cm) Tele (cm)
Size (inches) *These are not the guaranteed number of lamp hours, but the recommended hours after which the lamp should be replaced in order to ensure optimum picture quality
SCREEN SIZE (PROJECTED DISTANCE) 30 to 300 inch (0.9 to 12.1 m)
BRIGHTNESS HIGH / LOW BRIGHTNESS MODE 1800 ANSI lm / 1500 ANSI lm
CONTRAST 500:1
BRIGHTNESS UNIFORMITY 85%
COLOUR REPRODUCTION Full-Colour (16.77 million colours)
SOUND OUTPUT 1 W Monaural
EFFECTIVE SCANNING PIXEL CLOCK 13.5 MHz to 162 MHz FREQUENCY RANGE HORIZONTAL 15 k Hz to 92 k Hz (ANALOG) VERTICAL 50 Hz to 85 Hz
KEYSTONE CORRECTION Vertical: -30 to +30 degrees
ANALOG RGB I/O DISPLAY PERFORMANCE NATIVE 800 x 600 dots
RESIZE 1280 x 1024 / 1024 x 768 / 640 x 480
INPUT TERMINAL VIDEO D-sub 15-pin x 1
AUDIO RCA x 2
OUTPUT TERMINAL VIDEO D-sub 15-pin x 1
VIDEO I/O INPUT SIGNAL VIDEO STANDARD NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
INPUT TERMINAL VIDEO Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN x 1 Component Video: D-sub 15-pin x 1 Video-RGB: D-sub 15-pin x 1 AUDIO RCA x 2
CONTROL I/O USB I/O TERMINAL Type B x 1
OPERATING TEMPERATURE 5°C to 35°C <41°F to 95°F>
START-UP PERIOD About 4 Sec.
COOL-DOWN PERIOD Instant Off
POWER SUPPLY VOLTAGE 100 - 240 VAC ±10% , 50 / 60 Hz
POWER CONSUMPTION Lamp On 240W
Stand-by 6W
DIMENSIONS (D X W X H) 247 x 327 x 87 mm (Excludes Feet)
WEIGHT Approx. 5.7 lbs. / 2.6 kg
FAN NOISE 30 d B (Low Brightness Mode)
SUPPLIED ACCESSORIES Power Cable 1.8 m Computer Cable 1.8 m Remote Control With AAA Type Alkaline Batteries x 2pcs Soft Carrying Case Password Protect Sticker User’s Manual
OPTIONAL ACCESSORIES ELPLP36 (Part No. V13H010L36) Replacement Lamp
Epson is the registered trademark of SEIKO EPSON
ELPAF08 (Part No. V13H134A08) Air Filter Set, 2 Sheets
CORPORATION. All other product names and other company names used
CONNECTOR PANEL
herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Scan/Print samples shown herein are simulations. Specifications are subject to change without notice.
Monitor Out Computer/ S-Video Video L-Audio-R USB
Component Video Style, Value
and Versatility
Dealer’s Stamp INDIA – (91) 80-305-15000, CALCUTTA – 228 31589/90,
CHENNAI – 302 77500, MUMBAI – 282 61515/16/17, NEW DELHI – 306 15000 INDONESIA – (62) 21-572-3161 MALAYSIA – (60) 3-562-88288 PHILIPPINES – (632) 813-6567
High luminance of 1800 ANSI Im with SVGA resolution
SINGAPORE – (65) 6586-5500, (65) 6586-3111 THAILAND / INDOCHINA – (662) 670-0680
Unique A/V Mute Slide function Quick Start-up and “Instant Off” shutdown
www.epson.com.sg
Printed July 2006
