This high-precision LCD digital elapsed hour meter provides reliable tracking for industrial applications, featuring ranges up to 99999 hours and dedicated Trip/Total monitoring modes. The unit is designed for easy single-hole mounting while offering advanced functionalities such as automatic leading zero blanking and hourly pulse output. This technical manual details complete installation procedures, specialized wiring functions, and comprehensive safety guidelines, making it essential for electrical engineers and industrial maintenance professionals requiring accurate tracking of machinery uptime and operational time intervals.

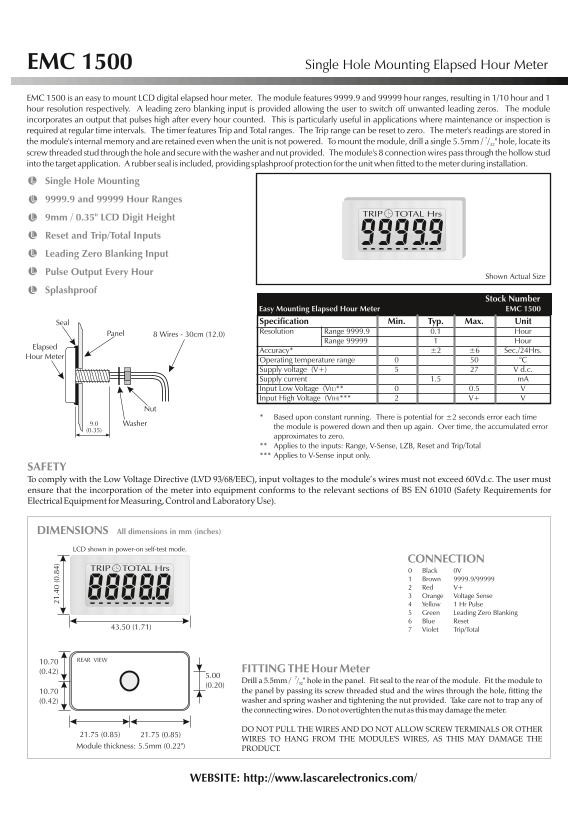

Page 1 Text Content
EMC Single Hole Mounting Elapsed Hour Meter
EMC is an easy to mount LCD digital elapsed hour meter. The module features 9999.9 and hour ranges, resulting in 1/10 hour and hour resolution respectively. leading zero blanking input is provided allowing the user to switch off unwanted leading zeros. The module incorporates an output that pulses high after every hour counted. This is particularly useful in applications where maintenance or inspection is required at regular time intervals. The timer features Trip and Total ranges. The Trip range can be reset to zero. The meter's readings are stored in the module's internal memory and are retained even when the unit is not powered. To mount the module, drill single 5.5mm hole, locate its screw threaded stud through the hole and secure with the washer and nut provided. The module's connection wires pass through the hollow stud into the target application. rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation.
Single Hole Mounting 9999.9 and Hour Ranges
TOTAL Hrs TRIP
9mm 0.35" LCD Digit Height Reset and Trip/Total Inputs Leading Zero Blanking Input Pulse Output Every Hour
Shown Actual Size
Splashproof
Stock Number
Easy Mounting Elapsed Hour Meter EMC Seal Specification Min. Typ. Max. Unit Resolution Range 9999.9 0.1 Hour
Panel Wires 30cm (12.0)
Range Hour
Elapsed
Accuracy* ±2 ±6 Sec./24Hrs.
Hour Meter
Operating temperature range °C Supply voltage (V+) d.c. Supply current 1.5 m A
Input Low Voltage (V IL) 0.5 Input High Voltage (V IH) V+
Based upon constant running. There is potential for ±2 seconds error each time
9.0 Washer
the module is powered down and then up again. Over time, the accumulated error
approximates to zero. Applies to the inputs: Range, V-Sense, LZB, Reset and Trip/Total Applies to V-Sense input only.
SAFETY To comply with the Low Voltage Directive (LVD 93/68/EEC), input voltages to the module’s wires must not exceed 60Vd.c. The user must ensure that the incorporation of the meter into equipment conforms to the relevant sections of BS EN (Safety Requirements for Electrical Equipment for Measuring, Control and Laboratory Use).
DIMENSIONS All dimensions in mm (inches)
LCD shown in power-on self-test mode.
CONNECTION
TOTAL Hrs TRIP Black 0V
Brown 9999.9/99999 Red V+ Orange Voltage Sense Yellow Hr Pulse Green Leading Zero Blanking Blue Reset
Violet Trip/Total
REAR VIEW
(0.42) FITTING THE Hour Meter 5.00 Drill 5.5mm /32 hole in the panel. Fit seal to the rear of the module. Fit the module to
10.70 the panel by passing its screw threaded stud and the wires through the hole, fitting the (0.42) washer and spring washer and tightening the nut provided. Take care not to trap any of the connecting wires. Do not overtighten the nut as this may damage the meter.
DO NOT PULL THE WIRES AND DO NOT ALLOW SCREW TERMINALS OR OTHER
WIRES TO HANG FROM THE MODULE'S WIRES, AS THIS MAY DAMAGE THE
Module thickness: 5.5mm (0.22")
PRODUCT.
WEBSITE: http://www.lascarelectronics.com/
Page Summary Contents For EMC 1500 Data Sheet - User's Guide
Manual Details
| Brand | EMC |
|---|---|
| Pages | 2 |
| File Size | 124.33 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I physically mount the EMC 1500 module?
Drill a single 5.5mm hole, fit the included seal, and secure the module from behind using the screw threaded stud, washer, and nut provided.
What are the recommended voltage limits for connecting the wires?
To adhere to the Low Voltage Directive (LVD), input voltages must not exceed 60V d.c. The user should also ensure it complies with BS EN 61010.
Can I use the module in 'Total' mode or 'Trip' mode?
The meter supports both modes. The Trip/Total wire (Violet) is used to select them, and the elapsed hour can be reset in Trip mode but not in Total mode.
What is required to ensure leading zeros are blanked out when counting hours?
Connect the Green Leading Zero Blanking (LZB) wire; however, connecting it momentarily to 0V will only blank zeros if the reading is non-zero.
