Dell Vostro 1500 Installation Guide
Summary
This legacy setup guide for a Dell Vostro laptop computer (May 2007) provides illustrated instructions for initial system configuration including connecting the AC adapter, connecting the modem, connecting to the network, and pressing the power button. It documents hardware features with numbered diagrams identifying components such as S-video connector, USB ports, ExpressCard slot, touchpad, media buttons, Dell MediaDirect button, optical drive, IEEE 1394 connector, and wireless switch. Includes optional wireless network setup diagram and guidance on accessing the Owner's Manual.

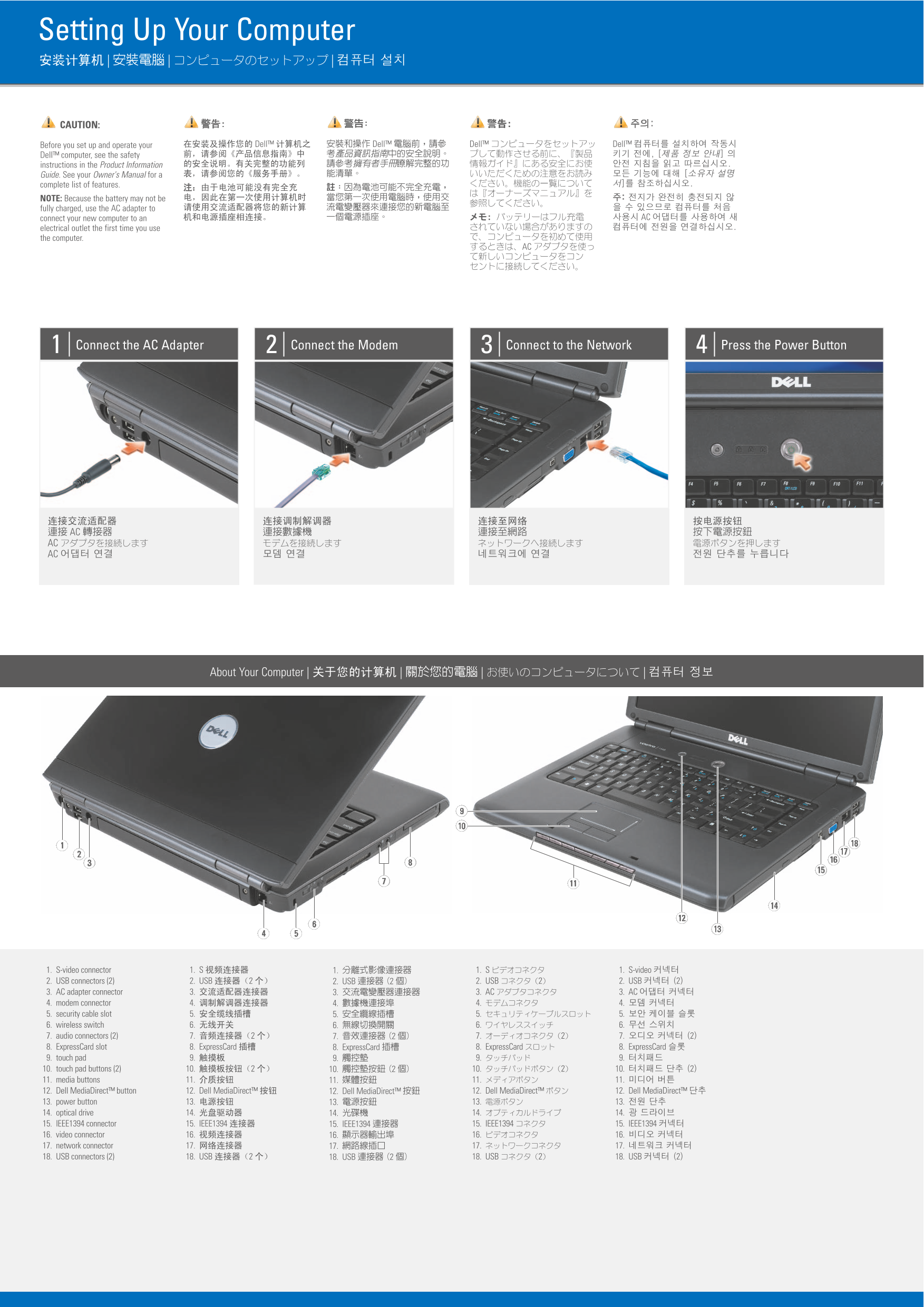

Page 1 Text Content
Setting Up Your Computer
CAUTION: Before you set up and operate your Dell™ computer, see the safety instructions in the Product Information Guide. See your Owner's Manual for a complete list of features. NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an electrical outlet the first time you use the computer.
Connect the AC Adapter Connect the Modem Connect to the Network Press the Power Button
1. S-video connector 2. USB connectors (2) 3. AC adapter connector 4. modem connector 5. security cable slot 6. wireless switch 7. audio connectors (2) 8. Express Card slot 9. touch pad 10. touch pad buttons (2) 11. media buttons 12. Dell Media Direct™ button 13. power button 14. optical drive 15. IEEE1394 connector 16. video connector 17. network connector 18. USB connectors (2)
Page Summary Contents For Dell Vostro 1500 Installation Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 1.47 MB |
| Published | July 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What safety precaution must be taken before operating the computer?
Before setting up and operating, you must see the safety instructions provided in the Product Information Guide.
How do I set up the computer for the first time?
Use the AC adapter to connect the new computer to an electrical outlet because the battery may not be fully charged.
Where can I find more detailed usage information or support?
See your Owner's Manual, or visit support.dell.com and click the Documentation and Support icon on the desktop.
