ABB Procontrol P14 89MS04 R5300 Protection Cabinet for 4 Stations, Remote Bus (FDDI) (EMC-Version) Manual

Summary

This EMC-proven protection cabinet is designed for robust signal and power distribution within industrial automated control systems. It provides space for up to four PROCONTROL stations, supporting I/O, solenoid valves, and connectivity via a remote bus network. The manual serves as a comprehensive guide for technicians and engineers, covering installation procedures, mechanical integration, wiring best practices, module coupling, and accessory implementation in dry, clean industrial settings.

📄 Preview 📖 Table of Contents Contents PAGE OF 16

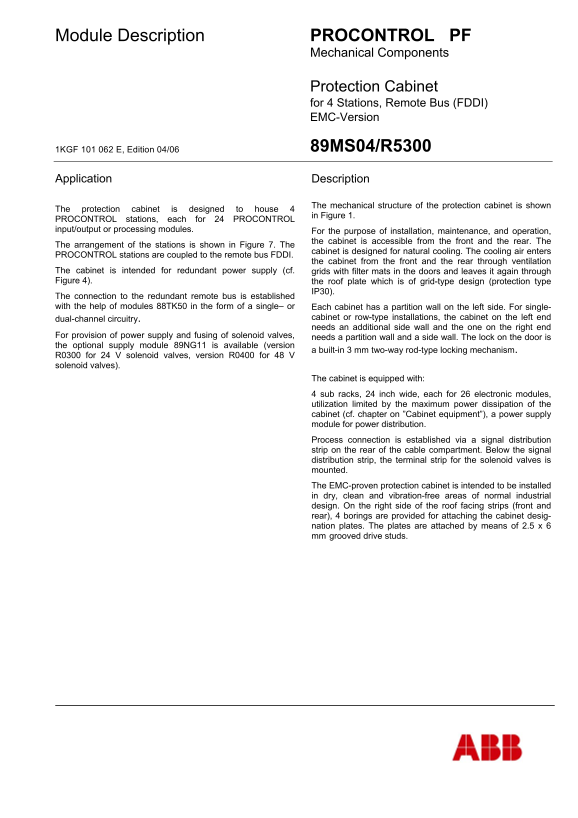

Page 1 Text Content

Module Description PROCONTROL PF Mechanical Components Protection Cabinet for 4 Stations, Remote Bus (FDDI) EMC-Version

1KGF 101 062 E, Edition 04/06 89MS04/R5300

Application Description

The mechanical structure of the protection cabinet is shown

The protection cabinet is designed to house 4

in Figure 1.

PROCONTROL stations, each for 24 PROCONTROL input/output or processing modules. For the purpose of installation, maintenance, and operation,

the cabinet is accessible from the front and the rear. The

The arrangement of the stations is shown in Figure 7. The

cabinet is designed for natural cooling. The cooling air enters

PROCONTROL stations are coupled to the remote bus FDDI.

the cabinet from the front and the rear through ventilation

The cabinet is intended for redundant power supply (cf. grids with filter mats in the doors and leaves it again through Figure 4). the roof plate which is of grid-type design (protection type

IP30).

The connection to the redundant remote bus is established with the help of modules 88TK50 in the form of a single– or Each cabinet has a partition wall on the left side. For single-

dual-channel circuitry. cabinet or row-type installations, the cabinet on the left end needs an additional side wall and the one on the right end

For provision of power supply and fusing of solenoid valves, needs a partition wall and a side wall. The lock on the door is the optional supply module 89NG11 is available (version

a built-in 3 mm two-way rod-type locking mechanism.

R0300 for 24 V solenoid valves, version R0400 for 48 V solenoid valves).

The cabinet is equipped with: 4 sub racks, 24 inch wide, each for 26 electronic modules, utilization limited by the maximum power dissipation of the cabinet (cf. chapter on ”Cabinet equipment”), a power supply module for power distribution. Process connection is established via a signal distribution strip on the rear of the cable compartment. Below the signal distribution strip, the terminal strip for the solenoid valves is mounted. The EMC-proven protection cabinet is intended to be installed in dry, clean and vibration-free areas of normal industrial design. On the right side of the roof facing strips (front and rear), 4 borings are provided for attaching the cabinet desig- nation plates. The plates are attached by means of 2.5 x 6 mm grooved drive studs.

Page Summary Contents For ABB Procontrol P14 89MS04 R5300 Protection Cabinet for 4 Stations, Remote Bus (FDDI) (EMC-Version) Manual

Page 1 Module Description PROCONTROL PF Mechanical Components Protection Cabinet for 4 Stations, Remote Bus (FDDI) EMC-Version 1KGF 101 062 E, Edition 04/06 89MS04/R5300 Application Description The mechanica...
Page 2 89MS04/R5300 Borings f or latescabinet designation p AA H21 Station- bus- connection Fan set H20 Cable duct Remote Station- bus- conn. bus- connectio DB Fan set Cable duct Station- bus- connection Fan...
Page 3 89MS04/R5300 Schrank Station cabinet station USA USB USA1 USB1 USA2 USB2 USA3 USB3 USB4USA4 2A USA MSP1 US MS P2 F2F1 BL MSP3 MTK MST MTE MTE 89NG08 R1200 USA U1 U2 U3 U4USA U6U5 F14F1 F16F15 USA UVBU...
Page 4 89MS04/R5300 Remote-bus coupling Cabinet installation The cabinet is installed on a base frame where the cables are ,D,G,Subrack A introduced from below. Floor mounting is in the form of screw- TK typ...
Page 5 89MS04/R5300 Electrical design USA 24V USB 24V MSP13 88TB07 Sub rack A Fan set USA 24V Door- Temp.- USB 24V monitor monitor MSP14 88TB07 Sub rack D Fan set Cabinet- USA 24V Cabinet- row- USB 24V lamp ...
Page 6 89MS04/R5300 Power supply For selective cabinet connection and disconnection, 2 high- capacity m.c.b.s are provided. As protective devices, they The protection cabinet receives a redundant 24 V DC sup...
Page 7 89MS04/R5300 Address setting For cabinet annunciation’s, the following signal outputs are available: Throughout the PROCONTROL system, each electronic module is assigned a specific module address. Thi...
Page 8 89MS04/R5300 Terminal assignments Tests and inspections Power supply For quality assurance, each cabinet is inspected for com- pleteness and proper mechanical functions. Supply A, terminal strip X1, (...
Page 9 89MS04/R5300 Cabinet equipment Considering plant-specific factors of simultaneous operation In case all available slots are used for modules of elevated and considering a supply voltage of 27 V at the...
Page 10 89MS04/R5300 Options Additional ventilation To provide for the discharge of elevated power dissipation To meet specific plant requirements optional solutions are values, the following possible additio...
Page 11 89MS04/R5300 Interpolation point US/Z of 89NG11 24 VDC fusing for solenoid valves for voltage supply of relay output modules 81AR01 Subrack P 89NG11 in case of mounting on subrack G or K X111 US 24Sub...
Page 12 89MS04/R5300 Application options Station 1 Station 2 Station 3 Station 4 (e.g. AR01) * Option Fig. 7: Arrangement of stations and different versions of protection cabinet 89MS04/R5300
Page 13 89MS04/R5300 Technical data Mechanical features Dimensions Height 2200 mm (2290 mm with optional full-metal roof cover) Width 900 mm Depth 400 mm Installation Single-cabinet or cabinet-row installatio...
Page 14 89MS04/R5300 Electrical features Power supply Voltage UN = 24 V DC, tolerance at supply terminal 22.0 ... 30.0 V Harmonics ≤ 5 % depending on connection to an unfiltered three– phase bridge connection...
Page 15 89MS04/R5300 ORDERING DATA Order number: Protection cabinet 89MS04/R4300, complete GKWD 982 490 R5300 Accessory parts At the end of a cabinet row and for single cabinet installations Partition wall an...
Page 16 ABB AG NOTE: Power Technology Systems We reserve the right to make technical changes or modify the contents of this manual without prior notice. With regard to purchase orders, the agreed particulars ...
